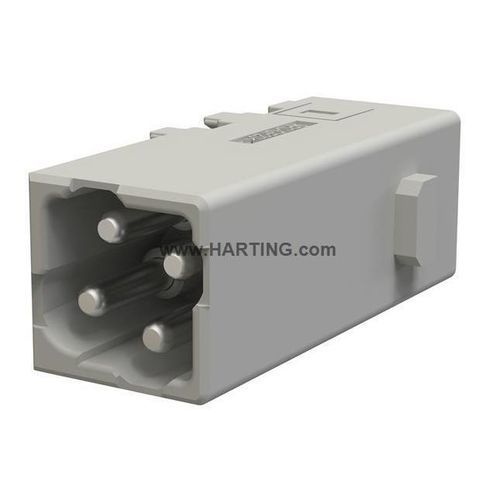

Electrical power supply connector module Han-Mod_M_EE_4_M_C.1_PIT

malepush-in4-pole

Identification
Product name: Han-Mod_M_EE_4_M_C.1_PIT
Article No.: 97 00 000 3694
Brand: HARTING
Product type: Han® Domino EE Cube
Series: Han-Modular®
Commercial designation: Han-Mod_M_EE_4_M_C.1_PIT

Properties overview

• Domino module
• Domino module size: Small tab
• Termination method: Push-In
• Gender: Male
• Contacts: 4
• Rated current: 16 A
• Material (insert): Polycarbonate (PC)
• Colour (insert): RAL 7032 (pebble grey)

Standards & approvals (selection)

• IEC 60664-1
• IEC 61984
• IEC 61373 Category 2
• IEC 60352-7

Commercial data

• Packaging size: 1
• Country of origin: Romania
• GTIN: 5713141112987
• eCl@ss: 27440217 Module for industrial connectors (power/signals)
• ETIM: EC000438
• UNSPSC: 39121552

Technical specifications

• Wire outer diameter: ≤4.8 mm
• Rated current: 16 A
• Rated voltage: 400 V
• Rated impulse voltage: 6 kV
• Pollution degree: 3
• Insulation resistance: >10×10⁹ Ω
• Stripping length: 10 mm
• Limiting temperature: -40 ... +125 °C
• Mating cycles: ≥ 500
• Material (insert): Polycarbonate (PC) — UL 94 class V-0
• RoHS: compliant
• ELV status: compliant
• China RoHS: e
• REACH Annex XVII / XIV / SVHC: Not contained
• California Proposition 65: Not contained
• Fire protection on railway vehicles: EN 45545-2 (2020-08) + A1 (2023-10); Requirement set with Hazard Levels: R22 (HL 1-3), R23 (HL 1-3)
