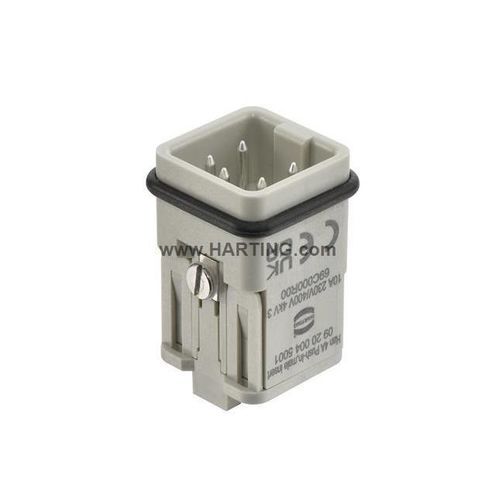

Electrical power supply connector module Han 4A

malepush-in4-pole

Product code
Article No.: 09 20 004 5001

Overview

• Type: Insert, Push-In termination
• Gender: Male
• Series: Han A®
• Material (insert): Polycarbonate (PC), UL94 V-0
• Colour (insert): RAL 7032 (pebble grey)
• PE contact: Yes

Key properties
Rated current: 10 A
Size: 3 A
Number of contacts: 4
Conductor cross-section: 0.5 ... 2.5 mm²
Recommended screwdriver: Slotted 0.6 x 3.5; PH1
Limiting temperature: -40 ... +125 °C
Mating cycles: ≥ 500

Standards & approvals
Specifications: IEC 60664-1, IEC 61984
Approvals: CE, UKCA
Fire protection on railway vehicles: EN 45545-2 (2020-08) + A1 (2023-10) — Requirement sets R22 (HL 1-3), R23 (HL 1-3)

Commercial data
Packaging size: 10
Net weight: 15.9 g
Country of origin: Romania
European customs tariff number: 85366990
GTIN: 5713140447929
eCl@ss: 27440205 Contact insert for industrial connectors
ETIM: EC000438
UNSPSC 24.0: 39121522

Notes
Image is for illustration purposes only. Please refer to product description.

Technical specifications

• Category: Inserts
• Termination method: Push-In
• Size: 3 A
• Number of contacts: 4
• Conductor cross-section (mm²): 0.5 ... 2.5
• Rated current: 10 A
• Rated voltage (conductor-earth): 230 V
• Rated voltage (conductor-conductor): 400 V
• Rated impulse voltage: 4 kV
• Pollution degree: 3
• Insulation resistance: >10^10 Ω
• Recommended screwdriver: Slotted 0.6 x 3.5 and PH1
• Limiting temperature: -40 ... +125 °C
• Mating cycles: ≥ 500
• Material (insert): Polycarbonate (PC), UL94 V-0
• RoHS / ELV: compliant
• REACH / SVHC / Annex XIV / Annex XVII: Not contained
• California Proposition 65: Yes (Lead)
• Standards: IEC 60664-1, IEC 61984
• Approvals: CE, UKCA
