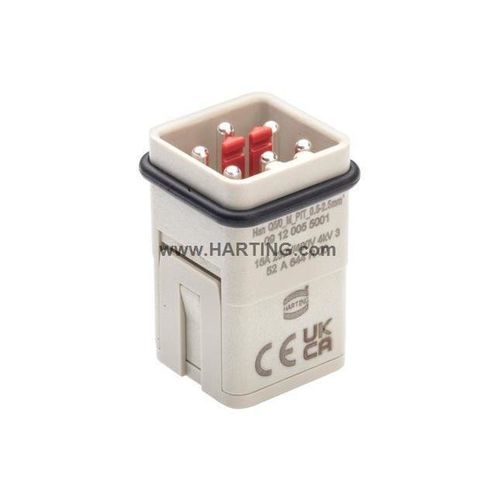

Electrical power supply connector Han Q5/0_I_M_PIT_0.5-2.5

mains power supplymalepush-in

Key features

• Inserts
• Push-In termination
• Male
• Material (insert): Polycarbonate (PC)
• Colour (insert): RAL 7032 (pebble grey)
• Rated current: 16 A
• Size: 3 A
• Contacts: 5
• Conductor cross-section: 0.5 ... 2.5 mm²
• Contact material: Copper alloy, silver plated

Identification
Category: Inserts
Series: Han® Q
Identification: 5/0
Article No.: 09 12 005 5001
GTIN: 5713140448476

Version
Termination method: Push-In
Gender: Male
Size: 3 A
Number of contacts: 5
PE contact: Yes

Material / Compliance
Material (insert): Polycarbonate (PC)
Colour (insert): RAL 7032 (pebble grey)
Material (contacts): Copper alloy
Surface (contacts): Silver plated
Material flammability class (UL 94): V-0
RoHS: compliant
ELV status: compliant
China RoHS: e
REACH Annex XVII substances: Not contained
REACH Annex XIV substances: Not contained
REACH SVHC substances: Not contained
California Proposition 65 substances: Not contained
Fire protection on railway vehicles: EN 45545-2 (2020-08) + A1 (2023-10) — Requirement sets: R22 (HL 1-3), R23 (HL 1-3)

Commercial data
Packaging size: 10
Country of origin: Romania
European customs tariff number: 85389099
eCl@ss: 27440205 Contact insert for industrial connectors
UNSPSC 24.0: 39121522

Technical specifications

• Conductor cross-section: 0.5 ... 2.5 mm²
• Rated current: 16 A
• Rated voltage conductor-earth: 230 V
• Rated voltage conductor-conductor: 400 V
• Rated impulse voltage: 4 kV
• Pollution degree: 3
• Insulation resistance: >10×10⁹ Ω
• Limiting temperature: -40 ... +125 °C
• Mating cycles: ≥ 500
