Electrical power supply connector Han Q5/0_I_F_PIT_0.5-2.5
femalepush-incurrent

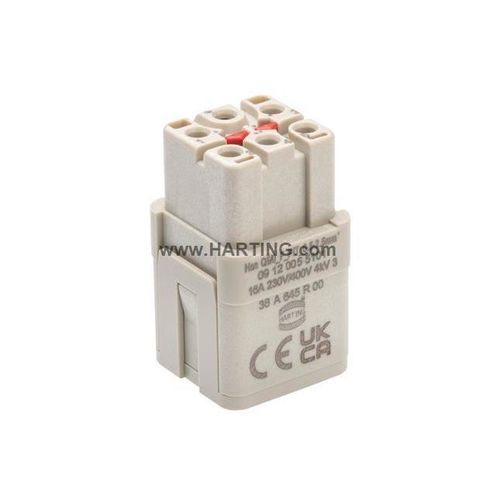

Electrical power supply connector - Han Q5/0_I_F_PIT_0.5-2.5 - HARTING - female / push-in / current
Electrical power supply connector - Han Q5/0_I_F_PIT_0.5-2.5 - HARTING - female / push-in / current
Add to favorites
Compare this product

Characteristics

Type
electrical power supply
Connection type
female, push-in
Electrical characteristics
current, voltage
Material
polycarbonate, PC, copper alloy, silver
Norms
RoHS
Primary current

16 A

Voltage

Max.: 400 V

Min.: 230 V

Operating temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

Product overview
  • Category: Inserts
  • Series: Han® Q
  • Termination: Push-In
  • Gender: Female
  • Contacts: 5
  • Conductor cross-section: 0.5 ... 2.5 mm²
  • Rated current: 16 A
  • Size: 3 A
  • Housing material: Polycarbonate (PC), RAL 7032 (pebble grey)
  • Contact material: Copper alloy, silver plated


Identification
Article No.: 09 12 005 5101
GTIN (EAN): 5713140447905

Technical characteristics
  • Termination method: Push-In
  • Number of contacts: 5
  • PE contact: Yes
  • Conductor cross-section (mm²): 0.5 ... 2.5
  • Rated current: 16 A
  • Size: 3 A
  • Rated voltage conductor-earth: 230 V
  • Rated voltage conductor-conductor: 400 V
  • Rated impulse voltage: 4 kV
  • Pollution degree: 3
  • Insulation resistance: >10·10 Ω
  • Limiting temperature: -40 ... +125 °C
  • Mating cycles: ≥ 500


Material properties
  • Insert material: Polycarbonate (PC)
  • Insert colour: RAL 7032 (pebble grey)
  • Contact material: Copper alloy
  • Contact surface: Silver plated
  • Material flammability class (UL 94): V-0
  • RoHS: compliant
  • ELV status: compliant
  • China RoHS: e
  • REACH Annex XVII / ANNEX XIV / SVHC: Not contained
  • California Proposition 65: Not contained
  • Fire protection on railway vehicles: EN 45545-2 (2020-08) + A1 (2023-10); Requirement set with Hazard Levels: R22 (HL 1-3), R23 (HL 1-3)


Specifications and approvals
IEC 60664-1
IEC 61984

Commercial data
  • Packaging size: 10
  • Net weight: 21 g
  • Country of origin: Romania
  • European customs tariff number: 85389099
  • GTIN (EAN): 5713140447905
  • eCl@ss: 27440205 Contact insert for industrial connectors
  • UNSPSC 24.0: 39121522


Characteristics / technical specifications
  • Termination method: Push-In
  • Contacts: 5 (female)
  • Conductor cross-section: 0.5 ... 2.5 mm²
  • Rated current: 16 A
  • Rated voltage (C-E): 230 V; (C-C): 400 V
  • Rated impulse voltage: 4 kV
  • Pollution degree: 3
  • Limiting temperature: -40 ... +125 °C
  • Material (insert): Polycarbonate (PC); Colour: RAL 7032
  • Material (contacts): Copper alloy; Surface: Silver plated
  • Packaging: 10 pcs; Net weight: 21 g; Origin: Romania
