Mains power supply connector Han Q7/0_I_M_PIT_0.14-1.5
malepush-ingrounding

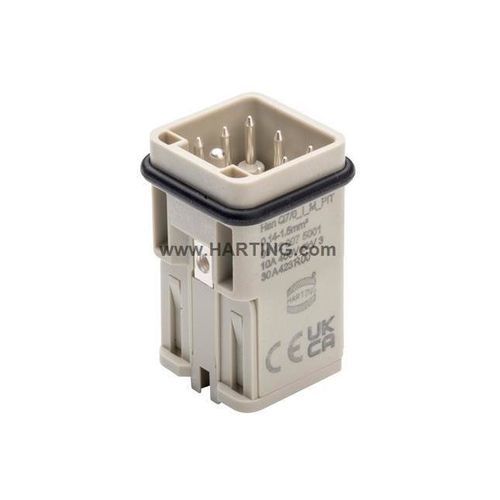

Mains power supply connector - Han Q7/0_I_M_PIT_0.14-1.5 - HARTING - male / push-in / grounding
Mains power supply connector - Han Q7/0_I_M_PIT_0.14-1.5 - HARTING - male / push-in / grounding
Add to favorites
Compare this product

Characteristics

Type
mains power supply
Connection type
male, push-in
Electrical characteristics
grounding
Material
polycarbonate, copper alloy, silver
Norms
RoHS
Other characteristics
for numerous mating cycles
Primary current

10 A

Voltage

400 V

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 125 °C
(257 °F)

Description

Overview
  • Product: Han Q7/0_I_M_PIT_0.14-1.5mm²
  • Article No.: 09 12 007 5001
  • Series: Han® Q
  • Type: Contact insert, Push-In, Male
  • Material (insert): Polycarbonate (PC) — Colour: RAL 7032 (pebble grey)
  • Contacts: 7 — Material: Copper alloy, surface silver plated
  • Conductor cross-section: 0.14 ... 1.5 mm² (with wire end ferrule 0.5 ... 1.5 mm² without wire end ferrule)
  • Rated current: 10 A — Size: 3 A


Identification
  • Article No.: 09 12 007 5001
  • Series / Denomination: Han® Q
  • Identification code: 7/0


Version
  • Termination method: Push-In
  • Gender: Male
  • Size: 3 A
  • Number of contacts: 7
  • PE contact: Yes


Technical characteristics
  • Conductor cross-section: 0.14 ... 1.5 mm² (with wire end ferrule 0.5 ... 1.5 mm² without wire end ferrule)
  • Rated current: 10 A
  • Rated voltage: 400 V
  • Rated impulse voltage: 6 kV
  • Pollution degree: 3
  • Insulation resistance: > 10⁁10 Ω
  • Limiting temperature: -40 ... +125 °C
  • Mating cycles: ≥ 500


Material properties
  • Material (insert): Polycarbonate (PC)
  • Colour (insert): RAL 7032 (pebble grey)
  • Material (contacts): Copper alloy
  • Surface (contacts): Silver plated
  • Material flammability class (UL 94): V-0
  • RoHS: compliant
  • ELV status: compliant
  • China RoHS: e
  • REACH Annex XVII / Annex XIV / SVHC: Not contained
  • California Proposition 65: Not contained
  • Fire protection on railway vehicles: EN 45545-2 (2020-08) + A1 (2023-10)
  • Requirement set with Hazard Levels: R22 (HL 1-3), R23 (HL 1-3)


Specifications and approvals
  • IEC 60664-1
  • IEC 61984


Commercial data
  • Packaging size: 10
  • Net weight: 17.4 g
  • Country of origin: Romania
  • European customs tariff number: 85389099
  • GTIN: 5713140451032
  • eCl@ss: 27440205 Contact insert for industrial connectors
  • UNSPSC 24.0: 39121522


Characteristics / technical specifications
  • Article No.: 09 12 007 5001
  • Commercial name: Han® Q
  • Series: Han® Q
  • Type: Insert, Push-In, Male
  • Number of contacts: 7
  • Conductor cross-section: 0.14 ... 1.5 mm² (with ferrule 0.5 ... 1.5 mm² without)
  • Rated current: 10 A
  • Rated voltage: 400 V
  • Rated impulse voltage: 6 kV
  • Pollution degree: 3
  • Insulation resistance: > 10⁁10 Ω
  • Temperature range: -40 ... +125 °C
  • Material (insert): Polycarbonate (PC), RAL 7032
  • Contacts: Copper alloy, silver plated
  • Mating cycles: ≥ 500
  • Standards: IEC 60664-1, IEC 61984
  • GTIN/EAN: 5713140451032
