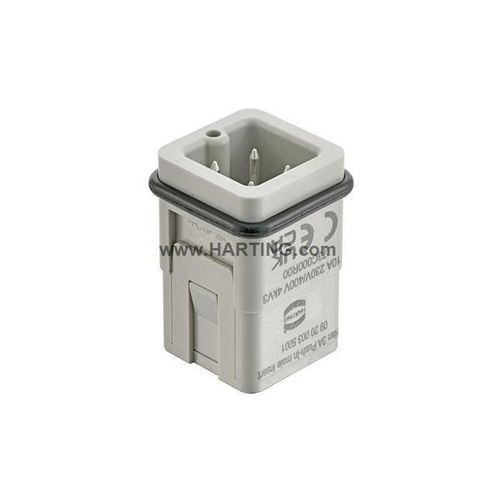

Mains power supply connector Han 3A

malepush-ingrounding

Identification
Article No.: 09 20 003 5001
Series: Han A®
Category: Inserts

Key features

• Termination method: Push-In
• Gender: Male
• Size: 3 A
• Rated current: 10 A
• Contacts: 3
• Conductor cross-section: 0.5 ... 2.5 mm²
• PE contact: Yes
• Material (insert): Polycarbonate (PC)
• Colour (insert): RAL 7032 (pebble grey)

Technical characteristics
Rated voltage conductor-earth: 230 V
Rated voltage conductor-conductor: 400 V
Rated impulse voltage: 4 kV
Pollution degree: 3
Insulation resistance: >10¹⁰ Ω
Recommended screwdriver: Slotted 0.6 x 3.5 or PH1
Limiting temperature: -40 ... +125 °C
Mating cycles: ≥ 500

Specifications and approvals
Specifications: IEC 60664-1; IEC 61984
Approvals: CE; UKCA

Commercial data
Packaging size: 10
Country of origin: Germany
European customs tariff number: 85366990
GTIN: 5713140434813
eCl@ss: 27440205 Contact insert for industrial connectors
ETIM: EC000438
UNSPSC 24.0: 39121522

Notes
Image is for illustration purposes only. Please refer to product description.

Technical specifications

• Conductor cross-section: 0.5 ... 2.5 mm²
• Rated current: 10 A
• Rated voltage (conductor-earth): 230 V
• Rated voltage (conductor-conductor): 400 V
• Rated impulse voltage: 4 kV
• Pollution degree: 3
• Insulation resistance: >10¹⁰ Ω
• Recommended screwdriver: Slotted 0.6 x 3.5 / PH1
• Limiting temperature: -40 ... +125 °C
• Mating cycles: ≥ 500
• Material (insert): Polycarbonate (PC), UL94 V-0
• Colour (insert): RAL 7032 (pebble grey)
