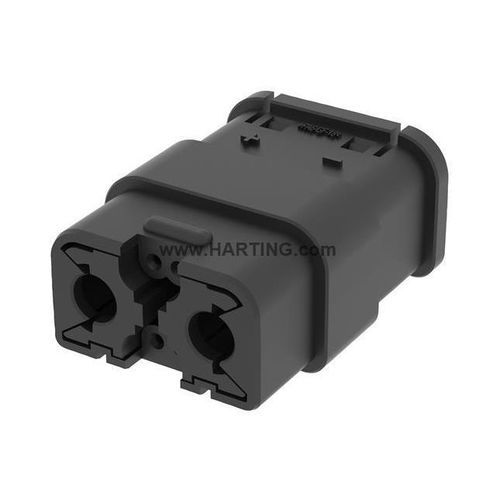

Electrical power supply connector Han MPC60_B_BS_2/4_F

datacrimpIP40

Identification
Category: Connector sets
Article No.: 97 00 000 5827
Product type: Connector set for crimp termination
Series: Han® MPC
Features: DroneCAN protocol support

Version

• Termination method: Crimp termination
• Crimp contacts must be ordered separately
• Not to be coupled or decoupled under electrical load
• Processing and installation only by trained personnel
• Basic insulation provided between power and signal contacts
• Do not apply power to the connector in the unmated condition

Technical characteristics

• Power conductor cross-section: 4 … 10 mm²
• Signal conductor cross-section: AWG 26 … AWG 23
• Rated current (signal): 1 A
• Rated voltage (signal): 5 V
• Rated impulse voltage (signal): 0.5 kV
• Pollution degree (signal): 3
• Rated current (power): 60 A
• Short-term rated current (power): max. 350 A for 10 s (with Han® C 10 mm²)
• Rated voltage (power): 120 V DC
• Rated impulse voltage (power): 2.5 kV
• Pollution degree (power): 3
• Limiting temperature: -40 … +90 °C
• Mating cycles: ≥ 500
• Degree of protection (IEC 60529): IP40 (mated condition)

Material properties

• RoHS: compliant
• ELV status: compliant
• China RoHS: e
• REACH Annex XVII substances: Not contained
• REACH Annex XIV substances: Not contained
• REACH SVHC substances: Not contained
• California Proposition 65: Not contained
• Fire protection for railway vehicles: EN 45545-2 (2020-08) + A1 (2023-10) – Requirement sets: R22 (HL 1-2); R23 (HL 1-3)

Commercial data

• Packaging size: 10
• Net weight: 6.1 g
• Country of origin: India
• European customs tariff number: 85389099
• eCl@ss: 27440113 Rectangular connectors (set)

Key specifications

• Series: Han® MPC
• Type: Connector set for crimp termination (contacts sold separately)
• Power conductor range: 4–10 mm²
• Signal conductor: AWG 26–23
• Rated power current: 60 A (short-term up to 350 A for 10 s with Han® C 10 mm²)
• Rated power voltage: 120 V DC
• Rated signal current/voltage: 1 A / 5 V
• Protection (mated): IP40
• Operating temperature: -40 to +90 °C
• Mating cycles: ≥ 500
