Category
Hoods/Housings
Series of hoods/housings

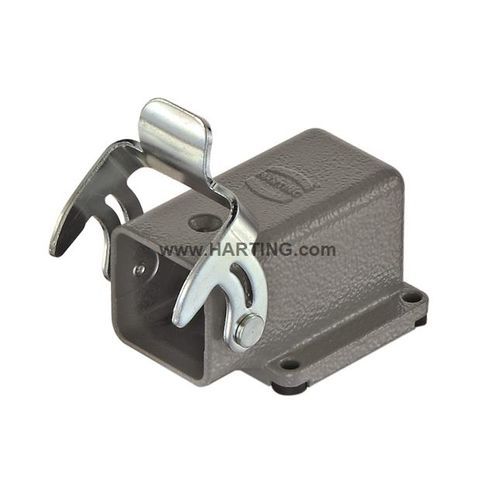

Han A®
Type of hood/housing
Bulkhead mounted housing
Description of hood/housing
Angled
4 fixing screws
Square mounting flange
Size
3 A
Locking type
Single locking lever
Field of application
Standard Hoods/housings for industrial applications
Pack contents
Please order seal screw separately.
Limiting temperature
-40 ... +125 °C
Note on the limiting temperature
For use as a connector according to IEC 61984.
Degree of protection acc. to IEC 60529
IP44
IP65 With seal screw
IP67 With seal screw
Type rating acc. to UL 50 / UL 50E
12
Material (hood/housing)
Zinc die-cast
Surface (hood/housing)
Powder-coated
Colour (hood/housing)
RAL 7037 (dust grey)
Material (seal)
NBR
Material (locking)
Steel
Surface (locking)
Zinc plated
RoHS
compliant
ELV status
compliant
China RoHS
e
REACH Annex XVII substances
Not contained
REACH ANNEX XIV substances
Not contained
REACH SVHC substances
Not contained
California Proposition 65 substances
Yes
CE
Yes
Approvals
DNV GL
