Designed to handle both large and small diameter hoses in areas where hoses are required to be completely rolled into drum or rolled high enough to allow passage of overhead cranes, high vehicles or large equipment
Features
- Radio Remote Control
- Electrical control box included
- Maximum temperature of 1200° F
- Standard hose diameters of 4, 5 and 6 inches
- Galvanized steel
- Powder coated finished
- Outlet is 6 inches
- Can be ceiling suspended or wall mounted
|
|
|
Coxreel hand crank and motor driven reels feature industry preferred design with a sturdy one piece all welded "A" frame base, low profile outlet riser and open drum slot for non-crimping, flat smooth hose wrap. Operator efficiency is also enhanced with a longer drum lock pin, a round tapered crank handle, and a long wearing corrosion-resistant adjustable tension brake. These reels, like all Coxreels, are built of heavy gauge steel and sealed with a Coxreels’ “CPC” proprietary powder-coated corrosion and scratch resistant finish.
|
|
Use of impulse-firm thermoplastic hoses type SAE 100 R7/R8 and/or 1100K/2000-2ST
according to DIN 20,022. Double hoses of this type are homogeneous connected by the whole length.
With the model W 4 R/L a centre divider is attached for the separation of the pairs of hoses.
With double spring for problem-free employment.
Individually seal-system for each hydraulic circulation.
Double sealing ring system: The first ring consists of polyurethan for the improved admission of dynamic loads; The second ring, a quad-ring, takes up static load.
Enviroment temperature for application of the hose reels from -30 °C up to 80 °C.
The rotation direction of the roles W1 R/L, W2 R/L, W3 R/L, W4 R/L can be
turned around without disassembly of the hydraulic unit fast and simply.
A multiplicity of different tube lengths connected with different hose nominal sizes of 1/4"- 1" and pressures up to 700 bar.
|
|
|
Coxreels PC Series spring driven power cord and light reels are heavy duty, industrial grade power sources. This ground-breaking design sets a new bar as the ideal cord management solution capable of fulfilling any commercial and industrial application. They replace tangled extension cors and self retract to increase safety, productivity, efficiency and can withstand the toughest of working conditions. These heavy duty, solid steel, powder coat painted time-savers are available in 16, 12, & 10 gauge cord in lengths up to 100 feet and features 6 different cord accessory options for every power and light management application.
|
|
COXREELS® manufactures heavy duty industrial grade hose reels, cord reels and cable reels of the highest quality. Our leading, high quality, product line fulfills any conceivable application where a reel is needed. Coxreels’single pedestal style hose reels are designed to handle a wide range of applications such as air, water, oil and grease. These reels accommodate 1/4 inch I.D. hose up to 3/4 inch I.D. hose, and will hold lengths up to 100 feet on an automatic spring rewinding system. All reels are built of heavy gauge steel and have an adjustable guide arm to meet your specifications for a ceiling, wall, floor, or mobile installation. The standard latching device will hold any length of hose you need without any pull back tension.
Coxreels also features a safety line that will retract up to 80% slower than standard spring rewind reels.
|
|
|
|
|
|
Application
The reel exhaust extractors – type ALAN are designed for extraction the exhaust
fumes emitted by vehicle’s exhaust pipe during the engine tests, adjustment and
diagnostics. They are applied in bus depots, garages and car service stations.
At economic optimal air extraction and simple use it captures the whole exhaust vol-
ume and removes them outside. The reel can be mounted directly under the ceiling
or to the wall or to column by means of a bracket set.
Structure
The reel exhaust extractor consists of a winding reel with the exhaust hose with a nozzle to connect at the vehicle exhaust pipe. The nozzle sucks in the am-
bient air, mixes it with the exhaust fumes to decrease the temperature. Exhaust extractors are adapted for hoses of diameters , 100, 125 or 150 mm. In all versions, the free overhang of the hose (fully recoiled on the reel) is 1,5 to 2
m.
The devices are produced with two sorts of reel drive:
1. Type C – spring drive for hose reeling. The hose is wound down manually and reeled up automatically upon the force of a spring mechanism. To
the equipment belong following elements:
band brake – to slow down the hose speed during winding-up,
ratchet device – which locks the hose in the required position (while it is being wound down),
rubber stopper – to be fixed on the hose, stops the hose after it is fully wound up onto the reel.
2. Type E – with electrical drive for “hose wind-up / down”. Inside the reel is placed a gear-motor (of low rotational speed and small motor rate).
Both types can be equipped with a shut-off damper which automatically opens and closes during reeling/unreeling of the hose.
|
|
|
Coxreels T Series "Truck Mount" spring driven hose reels are the toughest hose reels in the spring driven line. The chassis is strongly supported by dual pedestal-style arms that span from the roller guide bracket down to the sturdy mounting base. Triple support point to the shaft are complimented by Coxreels' original Super Hub support system. They are perfect to be mounted on stationary units or service and utility vehicles. This Series was engineered for low, medium and high pressure including air, water, fuel, oil and grease applications. The models are available in 3/8", 1/2", 3/4" and 1" hose I.D and accomodate 50', 75 or 100' of hose. The working pressures are available in 300, 1250, 1500, 2500, 3000, 4000 and 5000 PSI according to the desired applications.
|
|
|
Coxreels P-W and SHW Series spring driven welding hose reels are the ideal solution for managing bulky twin line welding hose. Coxreels’ dual hose welding reels add safety, efficiency and productivity to your welding operations and are suitable for Oxygen-Acetylene and Fuel gas welding applications. These self-retracting reels feature a spark free locking ratchet, brass swivel that is ported for safety, and an adjustable arm guide for wall, ceiling, floor and mobile equipment mounting. The support post and mounting plate are built from heavy duty 1/4" plate steel and have a solid 1" steel center support shaft. The reels manage 1/4 inch I.D. twin hose and will hold lengths up to 100 feet.
|
|
Setting up and tearing down your audio/video equipment is faster, cleaner, and easier with Hannay cable reels. Specifically designed for:
- Production & Recording Facilities
- Television & Radio Stations
- Live Events & Concerts
- Mobile Broadcast Units
- Satellite & Cable Companies
Hannay AV and AVX Series reels feature all steel construction, stackable design with ergonomic carrying handles, and non-reflective black matte finish.
|
|
WELDING CABLE reels
The series CEA & WC are designed to increase safety in the work area with a resulting increase in efficiency and productivity.
Hose id (diameter): n/a
Hose length: n/a
Rewind Method: Spring driven
|
|

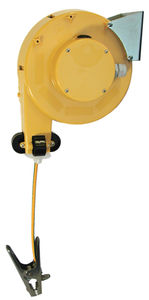

- Aircraft Refueling
- Chemical Plants
- Grain Elevators
- Rescue and HazMat Operations
- These reels bond and/or ground aircraft, fuel trucks and
other equipment.
- Provide smooth operation and require minimum cable pull.
- Declutching arbor and adjustable guide arm with cable guide.
- Optional stainless steel construction of spool, frame &
ratchet system available on HGR series.
- Standard finish is oven-cured enamel.
- Also available, manual rewind version.
All shown with optional cable and/or “Y” branch.
|
|
Designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. Pressures up to 3000psi.
Hose id (diameter): 12mm, 19mm
Hose length: 15m, 30m, 60m, 100m plus
Rewind Method: Hand crank
|
|
T series direct hand crank hose reels
Heavy duty hose reels ideal for Transport / Refueling / Fire Fighting / Industrial. Pressures up to 10,000psi
Hose id (diameter): 12mm, 19mm, 25mm, 32mm, 38mm, 50mm
Hose length: 15m, 20m, 25m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m, 110m, 120m, 130m, 140m, 150m, 160m, 170m, 180m, 190m, 200m
Rewind Method: Hand crank
|
|
- MX chain drive crank rewind or powered by a compressed air
or hydraulic motor.
- MX rewind reels supplied with a Pinion brake.
- Power reels not supplied with a brake.
- Standard inlets 90° ball bearing swivel joints with 1/2" female
NPT threads.
- Standard outlets are male 9/16"-18 threads. Right hand for
oxygen, left hand for gas.
-Rollers may be purchased. Specify roller position (mounting
brackets are necessary).
- Pressures to 300 psi (21 bar).
- Temperatures fr om -40° F to +200° F (-40° C to +93° C).
- Type of gas used MUST be specified .
|
|
|
Hannay Reels provides thousands of standard hose reel models and unmatched custom design and manufacturing capabilities for virtually limitless applications. The most prominent include air hose reels for pneumatic tools and machinery; water hose reels used for washdown, power washing, potable water, or in-plant fire protection; dual hose reels for oxygen/acetylene welding; and hydraulic hose reels for powering tools and machinery.
|
|
Heavy duty construction for industrial application: corrosion resistant powder coated steel, four-direction non-snag rollers reducing hose wear abrasion.
Possible mounting on wall, ceiling or floor.
Provided with swiveling support for a greater ease of work.
Adjustable guiding arm for horizontal or vertical hose release.
Fully equipped with:
- specific high pressure gas hose (propane or natural gas)
- crimped connections 3/8" left
- adjustable hose stop
- multi-position release ratchet
- user's and maintenance guide
- drilling template
|
|
|
Hannay Reels provides manual, spring and power rewind cable reels for a variety of industrial applications, including rescue and haz-mat operations, grounds maintenance and repair, video inspection, portable lighting, and broadcast and entertainment industry applications. Hannay also manufactures reels to handle arc welding cable, static grounding cable and electrical cable for power tools, lights, machinery and generators. All Hannay reels can be mounted on walls, ceilings and worktables.
|
|
Medium pressure for operating hydraulic cylinders, motors or tools. Pressures up to 3000psi
Hose id (diameter): 6mm,10mm, 12mm
Hose length: 9m,15m
Rewind Method: Spring driven
|
|
• Effortless and fast rewinding, wrapping, guiding of hose.
• Chain and sprocket drive powered by electric, hydraulic, or
compressed air motor.
• Auxiliary crank rewind, optional.
• 12 volt rewind, comet brake, reduction unit standard.
• Air brake optional.
• Inlet, hub assembly is aluminum and/or stainless steel for jet fuel.
• Consult factory for other pressures & temps.
|
|
Heavy duty hose reels ideal for Transport / Refueling / Fire Fighting / Industrial. Pressures up to 10,000psi
Hose id (diameter): 12mm, 19mm, 25mm, 32mm, 38mm, 50mm
Hose length: 15m, 20m, 25m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m, 110m, 120m, 130m, 140m, 150m, 160m, 170m, 180m, 190m, 200m
Rewind Method: Motor driven
|
|
T series 12 / 24VDC Electric motor driven hose reels
Heavy duty hose reels ideal for Transport / Refueling / Fire Fighting / Industrial. Pressures up to 10,000psi
Hose id (diameter): 12mm, 19mm, 25mm, 32mm, 38mm, 50mm
Hose length: 15m, 20m, 25m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m, 110m, 120m, 130m, 140m, 150m, 160m, 170m, 180m, 190m, 200m
Rewind Method: Motor driven
|
|

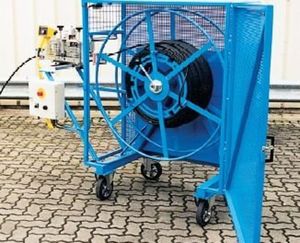

VAHLE motor-driven cable reels are used to supply power to movable equipment for automatic winding of flexible power or control cables and correspond to VDE and accident prevention regulations.
The reels can have a spiral or cylindrical winding configuration.
The cable is pulled out horizontally or vertically.
|
|
- Motorized cable reels -
Conductix-Wampfler engineers were from the very beginning convinced that permanent magnetic couplings offered a host of advantages. As a result, they developed a complete series of motorized cable reels that make it possible to configure efficient, economical standardized systems to meet all power requirements and cover virtually all applications. In addition, customers can choose from various drive options.
|
|
WELDING GASES hose reels
Series TW and BW hose reels for oxygen/acetylene/fuel applications. "T" grade hose reels are used for wide variety of gases such as mapp gas, propane gas, natural gas and fuel gases. Pressures up to 200psi
Hose id (diameter): 6mm, 10mm
Hose length: 8m, 15m, 20m, 25m, 30m
Rewind Method: Spring driven
|
|
|
Hannay Reels provides both hose and cable portable reels in a variety of sizes for many applications, including: broadcasting, industrial maintenance and on-site repair, construction, grounds and lawn maintenance, entertainment, fire and rescue, plus power tools and lights.
|
|
Maximize productivity with The RoboReels Retractable Robot Teach Pendant Cable Reel for Fanuc. This product protects robot teach pendants from damage, saving you time and money in annual repair costs. It enables a safe and more organized work area by storing cables when not in use. It enhances worker productivity by enabling a clutter-free environment. It is custom-built for your specific robotic system.
- Implemented for Fanuc RJ2 systems.
- 10m long cable.
|
|
Maximize productivity with The RoboReels Retractable Robot Teach Pendant Cable Reel for ABB. This product protects robot teach pendants from damage, saving you time and money in annual repair costs. It enables a safe and more organized work area by storing cables when not in use. It enhances worker productivity by enabling a clutter-free environment. It is custom-built for your specific robotic system.
- Implemented for ABB S4, S4C, and S4C Plus systems.
- Comes with pigtail cable, with 2 E-stop contacts and 1 E-stop push button.
- 10m long cable.
|
|
The Tecreel range of self-retracting hose reels provides an efficient means of conveying hydraulic power from fixed to moving points on cranes, lorry mounted cranes, forklift trucks and other materials handling equipment. An integral coil spring ensures that the hoses remain constantly under tension
Maximum operating pressure 300 Bar (4350 Ibf/in)
Large ports provide efficient flow characteristics
Siamese 1/4in, 5/16in, 3/8in or 1/2in bore thermoplastic hoses
Cassette loaded coil spring for safety and easy removal
Left or right hand mounted, easily changeable on site
|
|
|
VAHLE Spring Operated Cable Reels serve for automatic winding of flexible power and control cables, hoses for gases and liquids. Typical application: Portal- and Gantry Cranes, Dockside-Ships- and Construction Cranes, Graps and Magnets, Electric Hoists and other material handling equipment etc.
|
|
- Spring cable- and hose reels -
Conductix-Wampfler spring cable reels provide the optimum solution for all hoisting and material-handling applications. Rugged, heavy-duty construction guarantees exceptional reliability under extreme operating conditions.
- Spring cable reels -
Spring cable reels are used for the automatic reeling of cables on various types of moving equipment. These include most hoisting and other material handling devices; e.g. portal cranes, grabs, magnets, lift and working platforms, machinery, excavators, mobile cranes, transfer cars, transport systems and skimmers in purifying plants.
- Spring hose reels -
Spring hose reels are used for the automatic reeling of hoses on various types of moving equipment. Mostly these machines are track-based and operate in a straight line. The orientation of these applications can be horizontal or vertical.
|
|
|
|
