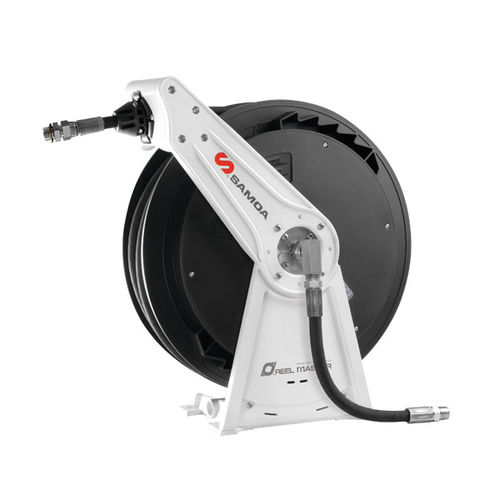

Hose reel RM-12S seriesself-retractingfixedswiveling
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Drive mechanism
- self-retracting
- Configuration
- fixed, swiveling, wall-mounted, truck-mounted, transportable, trolley-mounted, tractor-mounted
- Applications
- for water, for air, grease, garage, for corrosive environments, for nitrogen, for extractor systems, for gas stations, for mining
- Reel material
- steel
- Other characteristics
- composite
- Hose/cable length
6 m, 10 m, 15 m
(19'08" , 32'09" , 49'02" )- Pressure
20 bar, 160 bar, 170 bar, 280 bar, 350 bar
(290.1 psi, 2,320.6 psi, 2,465.6 psi, 4,061.1 psi, 5,076.3 psi)
Description
Aluminium base and arms with composite spool hose reels, can handle up to 15 m x 1/2" hose. Aluminium base and guide arm provide the rigidity to withstand the most demanding applications while offering a reduced weight for easy installation.Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose. Full port shaft and swivel for no restrictions. Spool mounted on two permanent lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life. Large effective radial latching area for easier operation. Six roller guide outlet prevents hose pinching and reduces friction. Hose guide arm can be placed in different positions to accommodate any method of mounting. Hose reels with hose include 0,8 m inlet hose. Model with 10 m 1/4" hose for GREASE / HYDRAULIC OIL.
