A series, G series
We are a professional producing Tungsten Carbide Products in China, expert in doing tungsten carbide BURRS, dental BURRS, HP.FG .
This product, instead of grinding wheel bur with handle, can cut and process all kind of metal and nonmetal materials under HRC70, and its service life is longer than 300 pieces of grinding wheel bur with handle. It can be used in rag, burr and welding seam of processing, cleaning, casting, forging and welding the moulds, in abrasive finishing process of internal cavity of impeller channel valve, in rounding and groove process of all kinds of machinery parts, and in technical carving all metal and nonmetal materials.
Features:
1. Dimensions:
a) Shank diameter: burs with 2.35mm, 3mm, 4mm
b) Length: 45mm / 38mm
2. 5 different grits:
223: Super Coarse (SCC)
220, 215: Coarse (CC, CP)
190, 175 :Medium (SC, SP)
140: Fine (FC)
110: Extra Fine (EFC)
3.Two fissures:
Double cut (Cross cut)
Single Cut (Spiral Cut)
4.Three surface colors:
self-colored (not plated)
Siliver (nickel plated)
Gold (TiC plated)
5.we could supply OEM service.
We have HIP Furnace to process all of the products to advance the property. Our Grades cover with all of the ISO GRADE in International, and some we can do the special grade for your special using. I believe our products can be the best raw material source for your manufacturing.
Welcome you any inquiries to my company, anything I can do for you please contact me with email or fax.
|
|
We carry burs in all shapes and sizes. We can also customize any bur to your needs.
- Solid Carbide Bur
- Brazed Burs (Solid Carbide Head with brazed steel shank)
- Long Series - Brazed Burs (Solid Carbide Head with brazed steel shank)
|
|

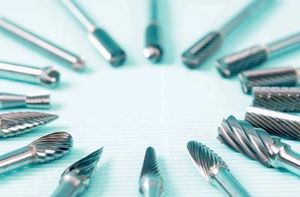

carbide rotary burr
3210V Standart - cut cross - tooth cylinder
3211V Double-cut cross - tooth ball - nose cylinder
3212V Double-cut cross - tooth end - nose cylinder
3213V Cross-tooth ball - shape nose cylinder
3214V Cross-tooth oval nose cylinder
3215V Cross-tooth round-nose tree nose cylinder
3216V Cross-tooth round-nose tree nose cylinder
3217V Cross-tooth round-nose tree nose cylinder
3218V Cross-tooth round-nose taper nose cylinder
BOX : 5 pc carbide burr kit
|
|
We carry burs in all shapes and sizes. We can also customize any bur to your needs.
SA Burs - Cylindrical No Endcut
SB Burs - Cylindrical With Endcut
SC Burs - Radius Cylinder
SD Burs - Ball Shape
SE Burs - Oval Shape
SF Burs - Tree Shape
SG Burs - Pointed Tree
SH Burs - Flame Shape
SJ Burs - 60° Included Cone
SK Burs - 90° Included Cone
SL Burs - 14° Included Cone
SM Burs - Pointed Cone Shape
SN Burs - Inverted Cone
|
|
|
Shapes SA thru SN...Moldmaker Tool & Die Burrs...Miniature Burrs...Long Shank Burrs...and Burr Kits and Sets...Metric and Fractional.
|
|
|
|
|
|
For heavy-duty applications in shipyards, foundries and steel construction, PFERD has developed two new special cut patterns for its tungsten carbide burs. The new 3R/Double and 3RS/Diamond cuts represent a new PFERD product line designed especially for tough operating conditions.
These tungsten carbide burs are characterized by their exceptional impact resistance and performance. The new cuts are ideal for all uses involving high mechanical shock or impact loads. Susceptibility to tooth chipping/breakage, splintering and bur head cracking has been effectively minimized. Even when milling at low RPM with an only moderately powerful machine, the occurrence of tooth failures is markedly reduced.
Like all other PFERD quality burs, our 3R and 3RS cut types distinguish themselves by their perfectly matched tooth geometry, number of teeth, helix angle, rake angle, and concentricity. Thanks to a very high stock removal capability over the entire service life, these tools deliver outstanding results in minimum time.
The new 3R and 3RS cuts are the latest addition to the existing PFERD range. They are not intended as substitutes for our proven standard cuts for general-use burs.
|
|
GN Gratex -deburring, counersinking, chamfering .....
Some products:
GN-Gratex I, HSS-Co For deburring and chamfering with taps
GN-Gratex II, HSS-Co For deburring and chamfering with twist drills
GN-Gratex III, HSS-Co For countersinking and deburring with twist drills
GN-Gratex V, HM For spot facing with twist drills - changeable indexable inserts
|
|
Tungsten carbide burrs are hand held cutting tools designed for:
-Effective freehand stock removal
-Weld preparation and removal (no contamination)
-Dressing and fettling
-High life time
-High safety during working
Tooling: Burrs can be used on a wide range of pneumatic, electric and flexible drive tools.
|
|
Convert now to cutting reliability at higher speed
At Sandvik Hard Materials we regard the cutting function as a single system that forms an integral part of the converting line. Using Sandvik CRC (Carbide Rotary Cutters), your converting line will face no restrictions in the cutting function (up to 1800 pieces/min).
Sandvik CRC are designed on the basis of a powder metallurgy process. The resulting material is both harder and stiffer with superior thermal conductivity compared with steel which makes cemented carbide ideal for rotary cutters. It is possible to resharpen the cutters several times during their lifetime.
|
|
|
|
