System solutions for reliable connections in plant engineering and construction.
Corrosive fluids, large movements, vibrations and a wide variety of pressure levels as well as extreme temperatures: The one who is responsible for plant engineering or equipment design must take many factors into consideration.
Customised solutions are essential in industrial engineering because of individual design criteria. High quality expansion joints supplied by Frenzelit are as practical as they are cost effective.
Available styles:
• Sealing surface with steel reinforcement for floating
flanges
• Back up bars with groves according to DIN PN 10/16
or ANSI 150lb
• Full face elastomer flanges with fabric reinforcement
• Back up bars with shoulder
• Male and female threads for size DN 15 - 80 mm
• Tie-rods
• Special tie rods for Lateral Expansion Joints
• Additional PTFE lining
• Vacuum supporting rings / spiral supports
|
|

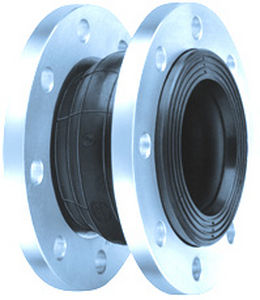

Flanged and threaded rubber expansion joints and bellows axial expansion joints, series PN 10/16.
|
|
RUBBER JOINTS

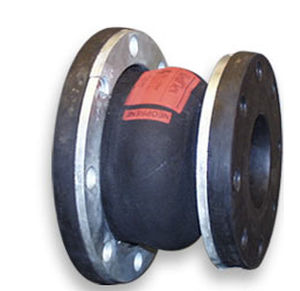

RUBBER JOINTS made with different mixtures as NEOPRENE, EPDM, etc, with fabric or metal reinforcements, molded or built in template, with metallic loose flanges or rubber fixed flanges ends, also with tie bars from ND 25 up to ND 3000
|
|
ERV in Special Design, Page 403-404
Type ERV-G TW with "TW" road tanker flanges of aluminium,
ERV with special flanges, limiters, link limiters, stainless steel inner sleeve, PTFE liner
|
|
Full-faced rubber flange bellow. Loose steel flanges with supporting collar giving a smooth movement to the bellow. High convolution and therefore highly flexible. Compensate for high movements due to its low inherent resistance.
Building length: 250 / 300 mm
Dimensions: DN 500 - DN 2600
|
|
Standard Expansion joint with a variety of rubber linings to meet almost all kinds of medium. Easy to install with good performance and long service life.
Building length: 130 mm
Dimensions: DN 25 - DN 300
|
|
As with all STENFLEX products, our rubber expansion joints are subject to continuous process improvement. This policy guarantees our customers state-of-the-art products. We optimize component formulas and develop new products in our own laboratories.
STENFLEX rubber expansion joints are used in plant units, machinery, apparatus, pumps and as part of pipeline systems. They are safe, efficient and require very little space.
|
|
ensure the freedom of motion of flue gas ducts in power stations, gas turbines and other air and gas bearing systems. Regardless of how tough the requirements are, our expansion joints have passed the test of countless millions of operating hours and offer the ultimate in terms of reliability and operational safety.
Product Basics
Website of KE-Burgmann
|
|
Structural Engineering
Application areas for rubber compensators: Structural engineering
Rubber compensators are often used in structural installations, e.g. in air-conditioning and heating technology, for pressure booster systems and for drinking water supply systems. A special design is available for heating technology; it can be used at temperatures up to 130°C and is subject to self-monitoring to DIN 4809 as controlled by the German technical inspection agency.
|
|
