With the "Screw Jack Building Block System", ZIMM offers a versatile program for the electromechanical adjustment of linear movements.
The designer finds ideas and solutions for lifting capacities from 0.25 kN to 1000 kN in the modular building set. There are numerous applications, for example, theatre and stage construction, plants for the production of sheet steel and steel pipes, wood working machines, plastics processing machines, textile machines, assembly equipment in the automobile and aircraft industries, food and beverage production equipment as well as packaging machines.
|
|

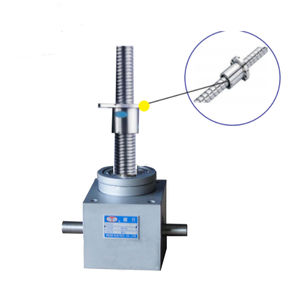

Metric and Imperial Ball Screw Jacks designs in translating and rotating screw formats in upright or inverted types are available in capacities up to 500kN ( 50 Ton). 2 gear ratios and 2 screw leads as standard, Options include Pre-loaded ball nut, Anti-rotation (keyed), 6 mounting options including trunnion and double clevis.
The Metric Ball Screw jacks have the extra advantage of an integral safety device as standard.
|
|

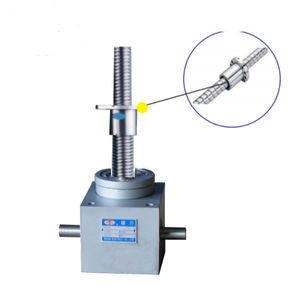

These standard screw jacks use a ball screw shaft and are ideal for high-speed or high-frequency operation.
They are also environmentally-friendly; even when operated at high speeds, and generate little heat, little noise, and no oil leakage.
* Standard Capacity: 10~1000kN
* Rolling motion between the nut and screw is same as ball bearings.
3 times of high efficiency compare with standard screw jacks will provide save energy operation
* No self-lock function; braking mechanism is necessary when retaining the position
* An application to prevent the screw axis from rotating is available
* Bellows for screw axis protection, Trunnion Base, Limit Switch for control, RC Encoder, etc are also available
|
|
For applications requiring linear movement, SIPCO offers a complete line of TechnoMotion® products. Please contact us for questions regarding our linear movement products, our inventory, or specific applications.
LINEAR ACTUATORS-ACME and Ball Screw
SCREW JACK-ACME and Ball Screw
BELT DRIVE-Precision Belt Pulleys
PRECISION BALL SCREWS-Ground, zero backlash
BALL SCREWS-Rolled Design
|
|
|
Series-S high duty screw jacks are a range of metric cubic screw jacks designed to have a higher duty cycle and mounting flexibility over conventional worm gear screw jacks. Typically the duty cycle can be extended by 50%. The higher duty rating has been achieved by improving the design of the jacks worm gearbox. The screw jacks are available in capacities from 25kN to 200kN in both translating and rotating screw configurations.
|
|
Our Screw Jacks with their wide torque range and our extensive experience assembling complete packages ensures we can help you solve your difficult linear motion design challenges with our screw jacks solutions.
Series BD | Screw jacks
Screw Jacks are the ideal product to push, pull, lift, lower and position loads of anything from a couple of kilograms to hundreds of tonnes. Many of our customers prefer our Series BD Screw Jack in preference to hydraulic or pneumatic jacks because of their greater precision and consistency.
|
|
- Duff-Norton offers a complete line of both standard and custom engineered machine screw actuators for applications up to 350 tons.
- Duff-Norton Ball Screw actuators come in many standard models, or can be custom designed for any application up to 50 tons.
|
|
Gear for stepless height adjustment, mainly for manual sit/sit work stations.
- Ratio 1:1 or 1,33:1
- Glass fibre reinforced plastic housing
- Hardened steel gear cogs
- 1200 N load
- Output spindle for push force only
|
|
Gear with spindle and support tube for stepless height adjustment for sit/sit or sit/stand work stations
- low priced
- small assembly dimensions
- high speed for adjustment
- in combination with our motor drive KTS 3143 the ideal solution for your height adjustment
|
|
|
Screw jack (Mechanical Actuators) are used in linear motion applications to push, pull, lift or lower loads for actuation or precise positioning purposes. They are available in metric or Imperial designs, with load rating from 5 kN to 3500 kN using machine screw, ball screw or roller screw drives in single face, cubic or corrosion resistant housings.
|
|
|

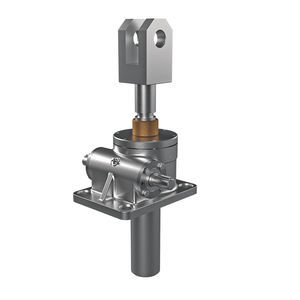

Stainless steel screw jacks (mechanical actuators) offer corrosion protection for linear motion applications in arduous environments. Designs are available with operating capacities from 10kN to 100kN and up to 300kN sustaining capacities. Either completely stainless steel units are available or hybrid units combining stainless steel and plated materials for a value engineered solution. All the design possibilities of the standard range are available including 2 gear ratios, anti-backlash, anti-rotation (keyed) and 6 mounting options.
|
|
Worm Gear Screw Jacks are available from Power Jacks in both metric and Imperial (inch) designs in load ratings from 5 kN to 3500 kN with machine screw, ball screw or roller screw drives in Cubic, Single Face or Stainless Steel housings.
The screw jacks can have feature such as anti-backlash, anti-rotation, secondary guides, rotation monitors, wear indicators, safety nuts and more.
For full details visit Power Jacks website at www.powerjacks.com
The website contains free downloads of detailed catalogues, drawings and maintenance manuals.
The 3D CAD Product configurator allows a user to specify a screw jack in 3D on-line then download the model in 3D or 2D CAD formats (over 20 available).
|
|
|
|
|
|
With our wide torque range and extensive experience assembling complete packages we can help you solve your difficult linear motion design challenges with the series bd screw jack.
Screw Jack Products:
Screw Jacks are the ideal product to push, pull, lift, lower and position loads of anything from a couple of kilograms to hundreds of tonnes. Many of our customers prefer our Series BD Screw Jack in preference to hydraulic or pneumatic jacks because of their greater precision and consistency.
Our Screw Jacks can run at Lifting Speeds of up to 5.4 m/min which is 90 millimeters per second. These lifting screws can be made up to 4 meters in length and longer ones can be made upon request and are capable of lifting 500 kN (50 tonne).
Strong Engineering Capability and a Wide Product Range:
- Experienced application engineers will help guide you through your selection process helping you optimize your solution.
- We will help you design the full linear drive system including all accessories such as bevel gearboxes, drive shafts, and sensors.
- We can make custom screwjacks for your extremely high load needs
- Stainless steel screwjacks available for challenging environments
Screw Jack Specifications:
- Sizes: 27, 40, 58, 66, 86, 100, 125, 200
- Load Capacity: 1 Kg to 100 tonnes
- Lifting Speed: 5m/min
|
|

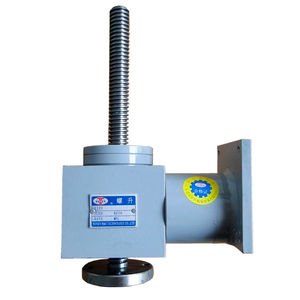

SJA20 screw jack
features:
High load: Load capacity from 500kg to 30 tons
Self-locking: The majority of the products
possess the self-locking function which
increases the security of the equipment.
Precision control: the positioning accuracy
can reach 0.1mm.
Synchronous: the synchronous rise
or fall can be achieved through the
mechanical connection of screw jacks.
Modularized combination: can be equipped
with encoder, motor, acme motor, gear motor etc.
Others: easy maintenance, low noise, can work
normally under special environment.
|
|
Mechanical Screw Jack – European Light Series
SEL (2,5-100KN)

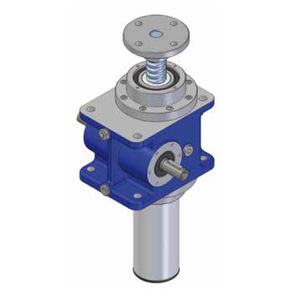

• Mechanical screw jack with housing in Aluminium alloy.
• 5 different sizes (SEL5, SEL10,SEL25, SEL50, SEL100).
• 3 different reduction ratios (1/5, 1/10, 1/30).
• Lifting/thrust capacity up to 100KN.
• Lifting/thrust speed up to 15200mm/min.
• “T” version, featuring Trapezoidal spindle (self-locking).
• “S” version, featuring Ball Screw spindle (high efficiency).
• Grease lubricated.
Modular and compact cubical design provides maximum adaptability to each specific application.
Wide range of standard accessories/features.
Special execution on request, please contact Setec Group Italy.
|
|
Mechanical Screw Jack – European Heavy Series
SEP (50-1500KN)
• Mechanical screw jack with housing made of Grey Cast Iron (SEP 1000 & SEP 1500 are made of welded carbon steel).
• 7 different sizes (SEP50, SEP100, SEP200, SEP300, SEP500, SEP1000, SEP1500).
• 2 different reduction ratios for each size.
• Lifting/thrust capacity up to 1500KN.
• Lifting/thrust speed up to 9000mm/min.
• “T” version, featuring Trapezoidal spindle (self-locking).
• “S” version, featuring Ball Screw spindle (high efficiency).
• Grease lubricated.
Strong industrial design provides maximum performance together with highest reliability, to face most difficult applications in harsh and severe environments.
Wide range of standard accessories/features.
Special execution on request, please contact Setec Group Italy.
|
|

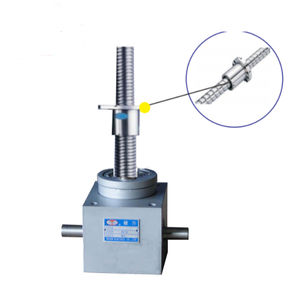

Ball Screw Jack.
Stainless Steel execution available.
Capacities from 1 Ton to 30 Ton.
Stroke on request.
Body with Base or Pivoting feature.
Upright or Inverted Screw.
Translating or Rotating Screw.
Motor applications.
|
|
|
|
|
|
Joyce/Dayton - Established 1873
Joyce Ball Screw Jacks feature a ball nut with integral ball bearings that recirculate along the surface of the ball screw. The significantly reduced friction between the ball nut and screw results in greater efficiency, with up to 2/3 less input torque required to move the load than a similarly rated machine screw jack.
Compared to Machine Screw Jacks, Joyce Ball Screw Jacks
- Require less motor horsepower
- Allow higher travel speed
- Provide an extended duty cycle
Joyce Ball Screw Jacks are available in translating screw or rotating screw (keyed for traveling nut) designs. Translating screws are available with threaded, load pad, clevis or plain ends. Options include limit switches, encoders, geared potentiometers, direct drive and reducer mounts, and protective boots. Joyce Ball Screw Jacks are ideal for single or multiple jack systems.
Unlike Machine Screw Jacks, Ball Screw Jacks are not self-locking. Because they will lower under load, a brake motor or other external braking mechanism is required.
|
|
Nook ActionJac Worm Gear Screw Jacks are mechanical actuators that utilize a bronze worm gear with a screw.
Nook offers a complete line of standard and custom engineered ball screw and machine screw actuators for applications from 1/4 ton up to 100 tons. Standard configurations including upright or inverted units with translating or rotating lifting screws. Top plate, threaded, or clevis ends are available for meeting specific application needs. Actuators can be used individually or in mutliple jack arrangements for a larger mechanical system.
|
|
Steel Screw Jack.
Capacities from 0.5 Ton to 150 Ton.
Stroke on request.
Body with Base or Pivoting feature.
Upright or Inverted Screw.
Translating or Rotating Screw.
Motor applications.
Bevel Gear and Pinion Screw Jack.
Size from 5 ton to 50 ton.
Ball screw models.
Anti-Rotation device.
|
|
|
Venture Jack systems have become the Manufactured Housing and Recreational Vehicle Industry standard. They can be manually operated or Motorized, They are Acme Screw Jacks available in a variety of styles for various applications. The standard Jack comes with a Drop tube and a Heavy Duty Foot Plate and is also available with optional manual crank handle and telescoping cross tubes. We can produce a custom jack system to meet your needs, whether for service or new OEM installation. Load ratings up to 10,000 lbs. they can be used for adjusting and supporting, for leveling and dislocating, etc. - All steel tube construction - spindle with self-locking, maintenance free, Acme screw drive - maintenance-free bevel gears - easy and secure operation - easy to mount - Easily customized to suit your application
|
|
|
|
|
|
Joyce/Dayton - Established 1873
Versatile Joyce Machine Screw Jacks lift and precisely position all kinds of loads from 250 lbs. to 250 tons. Upright or inverted, these precision jacks operate at full capacity whether the load is in tension or compression. WJ series single lead jacks are self locking under full lifting capacity, while DWJ double lead series jacks offer increased travel speed. Heat treated alloy steel worm shafts, aluminum/bronze worm gears and tapered roller or ball bearings provide rugged reliability.
Double extended worm shafts are standard. Joyce screw jacks come in translating screw, rotating screw (keyed for traveling nut) and keyed designs. All screw jack designs can be fitted with a protective boot. Jacks are available with one of four standard screw ends or special ends to meet your requirements.
An optional anti-backlash feature compensates for thread wear, assuring minimum play between lifting screw and worm gear for smooth, precise operation. Jacks equipped with the antibacklash feature are rated at full capacity under static conditions. For jack capacity under dynamic conditions please contact Joyce/Dayton.
Joyce/Dayton will custom design jacks to meet special requirements.
|
|
Mechanical actuators (screw jacks) - High efficiency Series.
Acme or ball screw.
Load capacity from 5 kN to 350 kN
Linear speed up to 150 mm/sec
Input speed up to 3.000 r/min
Duty cycle up to 40% over 10 min at 25°C
|
|
Stainless Steel Screw Jack.
Full Stainless Steel construction.
Capacities from 0.5 Ton to 150 Ton.
Stroke on request.
Body with Base or Pivoting feature.
Upright or Inverted Screw.
ranslating or Rotating Screw.
Motor applications.
|
|
Steel Screw Jack.
Capacities from 0.5 Ton to 150 Ton.
Stroke on request.
Body with Base or Pivoting feature.
Upright or Inverted Screw.
Translating or Rotating Screw.
Motor applications.
|
|
Modular design:
9 different sizes
With lifting capacities ranging from 2.5 kN to 500 kN
Input speeds of up to 1500 rpm
All-round configuration permits easy alignment
Conforms to European manufacturers' standards for screw jacks in cubical design
Self-locking trapezoidal screw
Grease-lubricated configuration
Worm gear pairs in two ratio steps (normal "N" and slow "L")
|
|
SHE range
14 different sizes
With lifting capacities ranging from 5 kN to 2000 kN
Input speeds of up to 1500 rpm
Self-locking trapezoidal screw
Grease-lubricated configuration
Worm gear pairs in two ratio steps (normal N and slow L)
Worm-drive shaft is case-hardened and ground
HSE range
9 different sizes with lifting capacities ranging from 5 kN to 1000 kN
Input speeds of up to 3000 rpm
Self-locking trapezoidal screw
Separate lubricating circuits: Tr screw with grease-lubrication and worm gears with oil-splash lubrication
Worm gear pairs in two ratio steps (normal "N" und slow "L")
Worm-drive shaft is case-hardened and ground
|
|
Load capacities range from 10 kN to 2.000 kN.
Screw - jacks can be used individually or combined (two or more) in order to discharge various load shifting operation.
The housing is made of stress relieved and sand blasted welded steel.
The worm shaft is made of alloy steel and completely ground.
The worm wheel is made of bronze with elevated anti-friction characteristics.
Each screw jack must meet varying requirements; therefore, each shaft must be manufactured on customer's drawings.
We can also supply the following upon request:
Bellow guards for the screw spindle.
Screw spindle counter rotation device.
Screw spindle with ground teeth.
Worm wheel with ball screw for precise positioning.
|
|
Mechanical worm-gear screw jacks.
Capacities from 500 to 100.000 Kg.
Spindles over 6 meters long.
Screw jacks complete with motors.
Customized models available.
|
|
We are very proud to say that with the help of high quality Geared Jack provided by us, we have been able to establish ourselves among the leaders of Geared Jack Exporters and Geared Jack Suppliers. Geared Jack provided by us are trustworthy, manufactured using latest sophisticated technology. Our main mission is to achieve a concrete success in the Industry and build the Brand Image of the company beyond the heights.
We have been in the manufacturing of new generation Geared JackM with our main mission of customer satisfaction delivering excellent quality product. We have a well known position in industry as Geared Jack Exporters and Geared Jack Suppliers We always deliver these Geared Jack on time and with most reasonable prices. We are continuously trying to achieve our goal of being one among the Fortune companies and provide the maximum customer satisfaction
|
|
|
|
