Powerful and compact

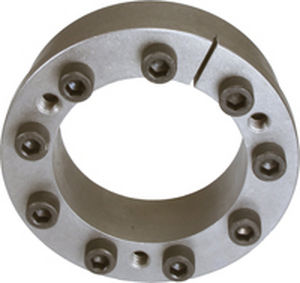

Torque transmission is possible by means of PETER shrink-on disks.
The principle is thoroughly convincing especially in input and output connections by means of hollow shafts. Contrary to keyed connections, the non-positive connection by means of shrink-on disks permits considerably thinner wall thicknesses for the hollow shafts since the greatest part of the torque transfer is absorbed by the shrink-on disk and the shaft is not weakened by additional slots.
This results in lower shaft diameters and consequently volumetric savings in the remaining system. Weight, moments of inertia and space can be elegantly saved in this manner.
Other factors in favour of shrink-on disks are
• high performance density
• detachable connection
• rapid and simple assembly
• economic use
|
|
CHARACTERISTICS
1. SLIT INNER RING
Low load losses and pressures on the hub.
2. BALANCING OF SMALLER DEVIATIONS IN TOLERANCES
For more information please contact our Technical Department.
3. HIGHEST RELIABILITY
Applicable for static, dynamic and impact loads.
4. SIMPLE MANUFACTURE OF THE COMPONENTS
Only low demands are made to the functional surfaces of the clamped
parts.
5. ABSOLUTE INTERCHANGEABILITY
Shrink Discs RINGFEDER® operate without any form closure.
6. EASY MOUNTING
Machining or fitting work is not required, standard tools suffice.
7. SHORT ASSEMBLY TIMES
Cost savings especially in serial production.
8. EASY REMOVAL
After loosening of the locking screws, the Shrink Disc RINGFEDER® is
released. The hub can be moved on the shaft freely.
9. LOW SUSCEPTIBILITY TO CONTAMINATION
Increased durability, as after tightening of the locking screws the
contact surfaces are pressed firmly together. Dirt and moisture cannot
ingress the functional surfaces.
|
|
RLK 603:
standard fastening of
hollow shafts to shaft ends
low cost
hollow shaft diameter from 11 to 400 mm
torque up to 112 kNm
axial force up to 5600 kN
RLK 608:
new and simple fastening of hollow shafts to shaft ends
improved size/torque ratio
quick and simple mounting
secure tightening of clamping screws without a torque wrench
accurate/ true running after assembly
closed design, therefore impervious to dirt
Shaft diameters from 30 up to 440 mm
Torque range up to 1500 kNm
Axial forces up to 8400 kN
|
|
A hoop of assembly is a mechanical pressure of external tightening. It solidarizes closely and without plays of the hollow shafts on solid shafts.
- Double disc has: it transmits without key of the couples and the great axial loads. Interchangeable with the standards of the market.
- Simple disc has: powerful mechanical connection. Fast tightening without torque wrench.
Absence of pitting corrosion, easy disassembling
Extraordinary report/ratio power obstruction.
3 families diameter 30 to 480
Couples to 1.412.000 Nm
|
|

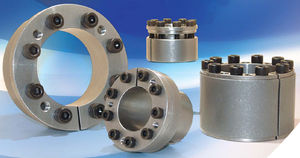

Clamping sets constitute a particularly elegant way of a shaft/hub connection. They combine the advantages of a no-play clamped connection that is detachable, a high capacity for torque transmission and minimum structural and manufacturing requirements of the system to be clamped.
Ideal applications for instance arise in the assembly of:
• gears
• V-belt pulleys
• sprockets
• belt pulleys
• couplings or
• levers
|
|
SHAFT-HUB CONNECTION DEVICES

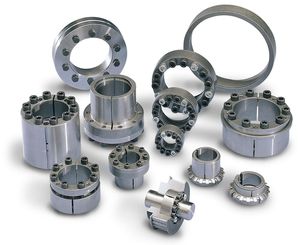

CONEX
Reduces the machining costs, eliminates all the operationsfor axial fixing of the hub and to machine the keyways seats.
|
|
SHAFT-HUB CONNECTION DEVICES
CONEX
Reduces the machining costs, eliminates all the operationsfor axial fixing of the hub and to machine the keyways seats.
|
|
|
|
|
|
CHARACTERISTICS
1. SIMPLE MANUFACTURE
Large possible tolerances and simple turning treatment guarantee
cost-efficient production.
2. EASY MOUNTING
Only a few screws must be tightened, angle-exact alignment between
hub and shaft is possible in every position, fitting work is not required.
3. EASY REMOVAL
RINGFEDER® Locking Assemblies have releasing threads, thus no
additional auxiliary devices are required. Series 7012 is even self-
releasing (no releasing threads).
4. HIGH FATIGUE STRENGTH UNDER ALTERNATING TORSIONAL STRESSES
Neither shaft nor hub feature grooves, thus no attenuation of the
components. Shaft and hub can be designed definitely smaller (light,
cost- and space-saving construction is possible).
5. NO DANGER OF DEFLECTION
Locking Assemblies RINGFEDER® are absolutely free from backlash.
6. OVERLOAD PROTECTION EFFECT
In case the admissible load is exceeded, the Locking Assemblies will
slip. That way, valuable machine components are safeguarded against
damage. However, the Locking Assemblies are subject to the same
laws as all other frictional locking connections and are not suitable for
use as friction clutch.
|
|
Clamping sets
External clamping set
* Shaft-hub connection free of wear and tear
* Power transmission even in case of highest loads
* Use: hollow shafts, slip-on gear mechanism
* Torque: from 30 Nm - 744000 Nm
|
|
Fastening without play for the transmission of torques, axial forces and longitudinal forces.
RLK 110: for thin-walled hubs
self centering
the long clamping lenght guarantees true centering
lateral location ring secures the axial position
shaft diameters from 6 to 130mm
torque up to 20kNm
axial forces up to 319 kN
RLK 130/132 : universal for high torques
self centering
low cost
no lateral location ring
shaft diameters from 20 to 200 mm
torque up to 59 kNm
axial forces up to 590 kN
RLK 200: the classic standard type
50 sizes available
slit cones for rough fits up to h11/H11
shaft diameters from 20 to 400 mm
torque up to 442 kNm
axial forces up to 2210 kN
RLK 400/402: for heavy applications
self centering
large clamping area, low surface pressure
shaft diameters from 45 to 600 mm
torque up to 13700 kNm
axial forces up to 4600 kN
RLK 250: space saving element
self centering
easy mounting
radial application
shaft diameters from 15 to 70 mm
torque up to 1075 Nm
axial forces up to 31 kN
|
|
The keys and the plays in the connection tree/hub remove.
The standard SIAM RINGSPANN is used everywhere in Europe.
It is the only one with being labellized Standard System Concept SC, these initials guarantee the European origin of the component, and mean that it is manufactured harmonizes some with the specifications of the VDMA as regards intensities of pressure, of coefficients of friction, and quality of screw to transmit a couple completely and without plays.
10 families of expansible products of assemblers of diameter 10 to 600
Couples to 1.472.847 Nm
Discs of assembly for short ultra ranges with a perfect concentricity.
|
|
