Flexible ‘Spirostore’ silos and containers are made of very strong and durable hightech polyester fabric and are suitable for a broad range of varied applications. They are available for weights up to 40 tons and volumes up to 7,000ft3.
Flexible bins (silos, containers) are in demand everywhere today where bulk goods need to be stored quickly, efficiently and safely in the plastic and recycling industry, in the chemical and pharmaceutical industry as well as in sectors of food, animal feed and sweets industry.
The bulk goods that can be stored are equally varied: from trouble-free peas and polystyrene balls through to interlocking materials such as baking flour, color pigments and even clumping materials such as tea leaves, fiberglass and shredded wool.
|
|
A full range of products for every application

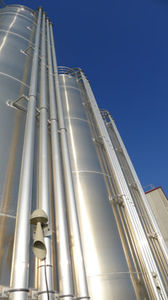

Aluminium storage silos
The solution for most fields of application requiring economical, safe, and reliable storage of high-quality bulk solids (pellets, powders, etc.).
- Available in shell diameters from 2.400 to 4.200 mm standardized for your bulk solids
- With long or short silo skirt, pipe feet or brackets
- For silo anchoring on concrete foundation or steel structure
- Equipped with special accessories on request
|
|
|
Storage bins and flexible containers by FB Balzanelli are manufactured with high-tech polyester and represent an innovative solution to fix the typical storage issues encountered within many production facility. They do not require any special installation licence and assure a short-term return on the investment. In addition, compared with metal storage solutions, they offer a top quality-price ratio. They are manufactured with materials that offer good sliding capability of the product inside and are easy to clean once empty.
|
|
The application and constant employment of automatic systems both
in design and construction, allow to obtain en-bloc silos with high
technical and qualitative performances in a wide range of shapes
and sizes.
All the manufactured containers are systematically submitted to specific
tests in order to check and certify their correspondence to the constructive
standards.
Besides, special executions in conformity with particular applications
or with specific regulations have now become a routine procedure.
Materials
The use of aluminum alloys as AlMg3, or the whole range of stainless
steels, satisfies any requirement with the broadest process and
duration guarantee.
|
|
Until now, theories from other industries were applied to the manufacturing of silos. For example, a silo for wheat is manufactured with metal walls for strength. Since the weight of a cubic meter of wheat will be considerably heavy, the silo walls should be very rigid. However, a cubic meter of plastic bottles will only weigh 20 kilos, so this silo may be lighter. It may be built with laminated plastic panels instead of mild steel or stainless steel.
The experience that POSIMAT has had with these laminated plastic panels is that the bottles closest to the walls tend to cause the wall to become slightly deformed instead of the metal wall deforming the bottles as was previously believed. The plastic used on these walls is very easy to clean and much more resilient to chemical corrosion than any metal
POSIMAT can also supply a POSISILO built in AISI 304 stainless steel walls that make it hermetically sealed, and allow pressurization of the silo.
|
|
|

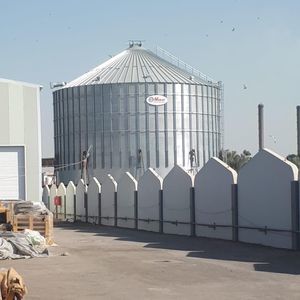

Construction For the storage of bulk products, we use silo cells made of profiled panels, which are assembled on site. The walls of the cells are of trapeze-like shape for freeflowing bulk products like green coffee, roasted coffee beans, and grain. We use smooth double-wall profiles for nonfree flowing goods. NEUHAUS NEOTEC delivers complete silo systems from the receiving, cleaning, mixing, loading to the automated control system
|
|
Monolithic silos 2.400 mod. S/ Monolithic silos 3.000 mod. SL
The silo installation on site is extremely simple and rapid:
1) the crane lifts and positions the silo in the desired configuration
2) by means of a pre-installed ladder it is possible to release the crane attachment to the same silo. The ladder is indispensable for the maintenance of the butterfly valve and safety valve. On request the following accessories can be supplied: dust removal system, cement level indicator, safety systems for cement loading, etc...
|
|
|
|
|
|
Flour Storage and Conveyance Systems
Multifunctional systems, flexible and accurately dimensioned for the logistic control of the raw materials, ensuring the control, the cleaning and removal of possible foreign materials, as well as transport to the point of destination without losses. Here are some of the features that distinguish the systems by Cusinato.
Basically built in various sections - among which the acceptance of the raw materials, the storage, and the possible batching by volume or by weight, the mixing, screening and feeding of the production lines (mixing machines) - the installations by Cusinato may be configured as required depending on the available spaces.
When asked for, it is also possible to improve the control and recycling of scraps (regrinds) from the production lines, with relevant batching and recycle to the productive cycle. Cusinato designs and manufactures these installations meeting the specific requirements of the clients, in reference to the raw material and the performance called for, giving assurance of simplicity in the use and of total absence of foreign material.
The use of specific and innovating handling technologies, together with the experience gained in the treatment of flours, offer the Cusinato systems a guarantee of long life, versatility, reliability and hygiene of the products being treated. All the installations for the handling of flours by Cusinato are provided with control systems that are highly automated to simplify their use and to ensure a complete monitoring of the process.
|
|
Prab can supply metal silos to accumulate processed chips in sizes from 500 to 3500 cubic feet. Vertical and Horizontal models are available. Each unit is equipped with positive discharge bin bottoms ( on vertical models ). Silos provide secured and controlled loading of truck trailers or railroad cars. Optional load cells for weight verifications are also available. In addition, both pneumatic and mechanical conveying / distribution systems into standard scrap trailer are available.
Features, Benefits, & Options:
- Store dry chips for scheduled pickups.
- Adhere to EPA rulings while maintaining a clean and productive facility.
- Ease the headaches involved with handling scrap metal and insure your best return by keeping track of valuable metals during recycling.
|
|
Erlenbach silos for storage and stabilising pre-expanded EPS and EPP as well as for recycled material - safe in construction and function. Special solutions upon request.
Types of silos:
Silo size 50 m3 for a max. density of approx. 35 kg/m3
Silo base frame:
. Corrosion protected
Silo reinforcement:
. With woven steel thread
. Uncoated
. Breathable
. Antistatic
Silo cover:
. Antistatic
|
|
| ... products without technical information |
| |
Carsilos enhances the building workshop productivity. It is available in 3 different versions: 15, 28 and 34 m3.
Horizontal cement silo with extractor screw and electronic metering system
Electronic weighing system with load cells complete with digital instruments and automatic measuring management
Main frame complete with 4 telescopic stabilizers for loading and unloading operations from the truck. No need of other lifting equipment
Vibrators
Discharging screw conveyor
Electric control panel complete with additional emergency devices
|
|
n° 03 BPW fixed axles, off set 0, disc brakes -
BPW pneumatic suspensions - EBS 2S2M WABCO -
retractable landing legs JOST system - no. 02 load manholes - no. 02 discharge cones with fluidising textiles
- carbon steel discharging pipe - n° 4 manometers showing the pressure of the tank’s inner, the discharge, the hoses and the suspensions; n° 02 hose tubes 5 m long in stainless steel - n° 01 linking hose tube 3 m long in stainless steel - accident protection (n° 1 anti-slip ladder, n° 1 gangway with a pneumatic safety handrail); no. 6 PVC black mudguards - n° 06 ALCOA DIAMOND BRITE aluminium wheels, type 11,75 x 22,5, off set 0 -
no. 07 CONTINENTAL tyres, type 385/65 R 22,5;
n°1 rear tool chest - AKO pneumatic valves DN 100 + DN 40 - disc brakes - 2 bar working pressure - empty weight: 4600 kg - Construction warrantee: 24 months.
|
|
O.ME.P.S. SRL has the pleasure to introduce the revolutionary concept of the self-supporting silo semi-trailers to transport powders and granulates: the new CM SIZE 42; it keeps the same dimensions of the famous O.ME.P.S. CM 39 DUMBO, but its capacity has been increased until 42 m3.
Have a look to its new design: the fluid lines and the particular geometric shapes of the shell are the result of a careful study of the aerodynamic flows and each detail has been devised and planned in accordance with the operators’ requirements.
The aim of such a clever solution is to improve the work conditions, the safety and the expediency of the transport on behalf of the third party. The advantage? The CM SIZE 42 silo semi-trailer is intended to make all the travels with a load, so that it can transport powders with different specific weights during both going and back routes.
|
|
O.ME.P.S. SRL knows what the customers expect from a tipping silo semi-trailers manufacturer: innovation, quality and economization. For that reason our engineers have designed a new chassis for the tipping silo semi-trailers, creating the new range of the CR Light Liner.
The choice of new aluminium extrusion sections allow to reduce the dead weight of the CR 59 silo semi-trailer, just 6.600 kg and to raise its payload: the chassis has been entirely bolted with special self-braking bolts, the oil tank has been put on the front side of the frame, so that the rear transom supporting the lending legs is lighter during the tipping step.
Moreover the safety for the vehicle stabilization has been improved thanks to the application of a double bolt die on the manual lending legs and a double locking valve on the hydraulic lending legs.
The main characteristics of such a light tipping liner is the lowest barycentre of the loaded semi-trailer and the particular care for the details.
|
|
|
NON TIPPING SILO SEMI-TRAILER MAKE O.ME.P.S., MODEL CM 39 ADR. HORIZONTAL PRESSURE TANK, PERALUMAN 45R CONSTRUCTION, 39 M3, PED 97/23/CE APPROVAL, IN COMPLIANCE WITH ADR STANDARDS.
|
|
|
NON TIPPING SILO SEMI-TRAILER MAKE O.ME.P.S., MODEL S 122. HORIZONTAL PRESSURE TANK, PERALUMAN 45R CONSTRUCTION, 22 M3, PED 97/23/CE APPROVAL.
|
|
| ... products without technical information |
| |
|
|
|
|
Fluidisation equipment is used as preventive measure. A variety of materials will show perfect mass flow as soon as a certain amount of air is added at regular intervals during discharging of the bin or silo.
At the same time, possible tendencies of the product to bridge, ra-hole,go lumpy or deposit are prevented.
I100 Aeration Pads
Due to the semi convex shape of the durable polymer I100 Aeration Pads, air is given off at a wide emission angle across the entire white surface.
Suitable for cement, lime and similar light powder materials
Working pressure: 0.2 bar (2.9 PSI)
Working temperature: -20°C to 80°C (-4°F to 180°F)
Fitted from inside
U025 and U060 Fluidisation Pads
The plastic insert with the sintered metal nozzle is screwed into the steel nipple which has been previously welded on the outside of the bi or silo. Then the connection with the compressed air line has to be carried out.
Suitable for cement, lime and similar light powder materials
Working pressure U025: 0.2 bar (2.9 PSI)
Working pressure U060: 1 bar ( 14 PSI)
Working temperature: -20°C to 80°C (-4°F to 180°F)
Fitted from outside
|
|
Vibrating Bin Aerator
It is a very simple device made of a rubber membrane, abrasion resistant and self cleaning,
and metal pipe, and is to be mounted against the wall of a silo.
Compressed air (at 2 to 6) bar is blown through the pipe and makes the rubber membrane vibrate against the wall of the silo. At the same time, the blown air fluidizes the dust or powder contained in the silo with a 1 metre radius of effectiveness.
- suitable for all kinds of fine powders and dust, sand, sugar, flour,
additives, talcum, filler etc...
- suitable for food powders
- working temperature: - 40°C/ 170°C (- 40°F/340°F)
- intermittent use is recommended
- stainless steel pipe (AISI 304) version: VBI type
- micro version: VBM type
- external mounting version: VBE type
- working temperature VBM/VBE: - 40°C/ 80°C ( - 40°F/170°F)
|
|
Bulk materials are frequently stored in hoppers and silos. To do different
environemental conditions and divers product caracteristics the discharge
and empting of such hoppers and silos can cause troubles.
On the market different discharge pads are offered. Gericke uses, beside of
its RA Bin Discharger and vibrating Bin Dischargers, aeration nozzles (flow
pad). This nozzles inject the 10 Nm3 air per hour and per nozzle in to the
hopper. By this measure the airflow fluidises the product and cleanes the
inside of the compartment.
The installation of the flow pad is very easy and simple just drill a hole
with diameter 53mm and fix the flow pad with 4 screws.
|
|
|
|
|
|
Assistance system with the flow for the powders and the powders
PROMOTION FLOW MUCON
PROMOTION FLOW is a system making it possible to solve the problems of flow of the products in the hoppers, silos or containers.
Stainless steel grids generally, are introduced into the conical part of the hopper. The crossing nuts and bolts which hold the grid are connected to an external medium where is fixed a pneumatic vibrator.
PROMOTION FLOW makes vibrate the contents and not the hopper.
This direct action on the product makes it possible to fight effectively against the independent factors which support the formation of a vault, a chimney or a segregation of product during the flow.
The grids are carried out to measure and will have a form different according to dimensions from the hopper to equip and the treated products.
Ideal for the products like: Reduce to starch potato, cement, lime, drinking chocolate, flour, clay...
After feasibility study of your application, tests could be realized with a hopper equipped with a Mini Flow Promotion. You will be able to thus note the effectiveness of our apparatus.
|
|
Extensometer 178 of Vishay Nobel was especially developed for the applications of level weighing and monitorings on existing or new silos of a few tons to several hundred tons.
Extensometer 178 is a gauge sensor of extensometry which transforms a mechanical deformation of the foot of the silo according to the weight into an electrical signal (mV/V) directly proportional to the load applied to the foot of the silo.
This sensor has many advantages:
Easily plantable on existing silos
No major modifications
Control nonintrusive level
Measuring accuracy from 1% to 4% of the Payload
Very good alternative to the traditional weighing of the silos
Directly exploitable signal of measurement by electronic standards for gauge sensors
Very Quality positive ratio/Price
|
|
