SOFT STARTERS
- 6A to 1200A starter ratings
- Standard and severe-duty types Internal by-pass contactor up to 245A rating
- Torque ramp starting
- Total motor protection incorporated
- Clock calendar
- Digital control and adjustment
- RS232 and RS485 serial ports for remote supervision and control
- Modbus®-RTU and proprietary ASCII communication protocols.
AC MOTOR DRIVES (VFDs)
- Versions for single-phase up to 2.2kW and three-phase up to 630kW
- Special function for pump and fan control using PID algorithm
- Active earth leakage protection EMC suppressor built in all versions
- Selectable motor control mode: V/f, vector, energy saving
- Selectable digital and analog input and output functions.
AUTOMATIC POWER FACTOR CONTROLLERS
- Microprocessor supervision and control
- Accurate current evaluation with TRMS readings
- Automatic rational adjustment
- Versions with 5, 7, 8 or 12 steps; one with static outputs
- Use in co-generation systems
- Communication serial interfaces ASCII and Modbus®-RTU communication protocols.
BATTERY CHARGERS
- 1 charging level
- Versions for lead-acid batteries, 2.5 to 12A ratings
- Charging current limitation selectable.
AUTOMATIC TRANSFER SWITCHES
- Supervision of two three-phase supply lines
- Emergency demand supervision for stand-by generating set
- Control of contactors, motorised circuit breakers or motorised changeover switches
- Event logging
- TRMS measurements of voltage values
- Microprocessor remote control and supervision
- RS232 and RS485 ports
- Modbus®-RTU and Modbus®-ASCII communication protocols
- Real time clock.
|
|
VersiStart i II
two-phase controlled soft starter
controlled by microcontroller
integrated bypass relay
current and torque reduction during acceleration
integrated motor overload protection
motor PTC connection
voltage range 200 - 440V or 200 - 575V
options:
Ext. operating panel and interface (29000.25901)
Interface for ext. operating panel (29000.25902)
DeviceNet module (29000.25903)
Modbus module (29000.25904)
Profibus module (29000.25905)
Module for pumps applications (29000.25906)
Finger protection (29000.25907)
|
|
|
|
|
|
7.5 to 800kW (18 to 1600A)
200V, 400V, 575V, 690V
Digistart is Control Techniques' flexible soft starter range for motor control and protection in constant speed applications. The Digistart range combines advanced control features with simple installation and commissioning. Digistart forms an integral part of our comprehensive product range which covers all of your motor control needs. Digistart can be used in a wide range of industries and applications including:
Pumps
Compressors
Fans
Material handling
Machinery automation
Mining and aggregate
Forestry
Benefits of using a soft starter:
Soft starters are a simple and economic method of controlling AC motors for fixed speed applications. Traditional methods of starting motors such as direct-on-line (DOL) or star-delta result in increased machine wear through rapid acceleration and very high peak currents. Soft starters solve this problem through controlling the acceleration and deceleration phases of operation.
Control Techniques' Digistart family offers two levels of functionality to meet all your soft starter requirements.
Digistart CS:
Digistart CS is a compact soft starter for motors up to 110kW (200A). The Digistart CS offers comprehensive motor protection features and is quickly commissioned using simple rotary switches.
Digistart IS:
Digistart IS is an intelligent soft starter offering many advanced features for motors up to 800kW (1600A). These features include 'Adaptive control' which provides an unprecedented level of acceleration and deceleration control, and an intuitive plain language display for configuration.
|
|
Electronic soft starters
Easy retrofitting even into existing plants
With bypass relay
Current reduction during acceleration
Extremely simple parameterization with three (four) potentiometers
Economically priced substitute for star-delta starters
Reduction of current/voltage peaks by parameterizable soft start ramp
Soft start with rated motor torque possible for applications with high-inertia starting
When making inquiries, please indicate: motor rating, rated motor current, current consumption of motor, application, number of starts per hour
|
|
PETER electronic is developing the VersiStart II series, a new powerful generation of soft starters offering proven quality and dependability in a slim and compact design. Because of its narrow design, the microcontroller-equipped soft starter is extremely space- and cost-saving.
The VersiStart II series can be individually programmed and thus easily adapted to customer-specific requirements. The soft starters are especially suitable for controlled acceleration and deceleration of electric motors and allow, inter alia, jerkless torque increase and current reduc-tion during the starting phase. With this new development, PETER electronic offers a low-priced alternative to star-delta starters and an intelligent solution with a high degree of functionality at low investment cost.
|
|
Motor control :
Efficient reduction of torque and starting current
Incandescent or infrared lamp starting :
Reduction of inrush current
Increase in life expectancy
Transformer control (loaded) :
Elimination of saturation current
Improved control and protection
Whatever your application :
Diagnosis of network, load and state of product
Better balance of and less interference on starters
(full control of the 3 phases!)
Simple use faciliting implementation and adjustements
As compact as an electronic contactor
Dimensions
|
|
|
|
|
|
Digistart is a multifunctional electronic starter with microcontroller. It is suitable for use on all the three-phase asynchronous induction motors, and assures :
- Starting management: All the traditional systems concerning motor starting (direct, star-delta, etc.) can draw a starting current that can vary between 7 and 9 times the motor rated current.
Digistart, can limit by simple adjustment, ina precise way, the current during the entire starting up phase.
- Protection of motor and driven machine: The starting up, the protection and the system automation imply the numerous elements installation making the electronic cabinets complex and costly. Digistart provides supplementary functions that limits the need for additional equipment with a consequent reduction in cost of material, manpower and running costs.
- Progressive stop control: The impact of harsh stops on certain low inertia applications, especially pumps, induces mechanical shocks, hydraulic disturbance or noise pollution.
Digistart, by generating a voltage at the motor terminals during the deceleration phase, extends the time taken for the motor to come to rest.
|
|
Smooth motor starts and stops, can reduce mechanical shock, leading to longer motor life, less frequent servicing and lower maintenance costs.
G3JA - Soft Starters
3-Phase Hybrid Soft Starters Extend Motor Life
Specifications
- G3JA-C Soft Start, Kick Start, Current Limit Start, and Soft Stop functions for 3-phase inductive motors satisfy motor performance needs for a wide range of applications
- Internal protections include protection against overload and phase loss
- Smooth motor starts and stops can reduce mechanical shock, leading to longer motor life, less frequent servicing and lower maintenance costs.
|
|
Due to extensive use of the latest technology, such as new semiconductor control algorithms and bypass design, the new soft starters are very compact and heat dissipation very low.
There is no need for extra ventilation or bypass contactors. This simplifies installation and keeps panel space at a minimum.
|
|
Soft start-soft stop units for 3-phase asynchronous motors from 4 to 1200 kW
Description
230... 415 V / 208... 690 V - 50/60 Hz
Starting and stopping of the machine by the Altistart 48 torque control system (TCS patent: Torque Control System)
Thermal protection of the motor
Protection of the machine: underload and overload with adjustable threshold and times, locked rotor, control of the direction of rotation
Factory set for immediate start-up
Simplified customization of settings using built-in display or the PowerSuite software
Through connection
Control of starter bypass contactor to prevent heat dissipation
Dual configuration (2 motors)
Numerous configurable inputs/outputs
Cascaded starting and deceleration of a number of motors
Modbus Integrated, FIPIO, Profibus DP, DeviceNet, Ethernet
|
|
|
|
|
|
Soft Starters ERSSW05 Series
The ERSSW05 Plus Micro Soft-Starters, with Digital Signal Processor (DSP) control have been designed to supply an excellent performance during starting and stopping of electric motors with excellent cost/benefit ratio. The ERSSW05 Plus Micro Soft-Starters are compact, optimizing the space in electrical panels ensuring quick and easy operations. The series incorporates all protections for the driven motor.
- Power Rating 0.55kW-55kW / 1.5HP-75HP
- All motor protections built-in
- Compact, low cost
- Digital DSP
- Easy operation through operator interface
- High efficiency
- Reduction of stress on couplings and other transmission devices during starting (gear boxes, sheaves)
- Extended life of motor and mechanical components due to reduced mechancial shocks
- Simple electrical wiring
Applications:
- Centrifugal Pumps (Wastewater/Irrigation/Oil)
- Fans/Exhausts/Blowers
- Air Compressors/HVAC (Screw/Piston)
- Mixers/Aerators
- Centrifuges
- Crushers/Grinders
- Wood Chippers
- Paper Refiners
- Rotating Kilns
- Saws and Planers
- Ball Mills/Hammer Mills
|
|

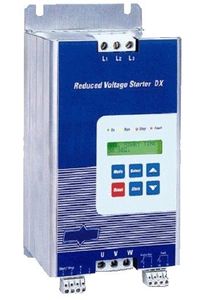

Digital Soft Starter DX series
Advanced design Soft Starters , complying with UL standards, they are able to control standard three phase cage rotor motors in order to reduce Amps and Torque at starting. They are available in 5 sizes , for nominal currents from 8 A up to 310 A and they are equipped with inner by-pass relay.
The digital design makes possibile to carry out additional functions other than the simple starting management. Their control and adjustment can also be done through RS 485 serial line.
|
|
MCD 3000 is a total motor starting solution. Current transformers measure the motor current and provide feedback for controlled motor voltage ramp up, but also for numerous motor protection functions.
A numeric display and logic key pad buttons make programming easy, and an operational status such as motor current is showed via the display.
|
|
|
|
|
|
Application
The softstarter is an electronic starter for AC-motors of the squirrel cage winding with slip-ring rotor constructional type. The function of a softstarter is to allow AC-motors to accelerate smoothly up to nominal speed, whereby the ohmic resistance has been replaced by a low-loss, bi-directional power control semiconductor. The motor ist connected up so that the electronic resistor is in series with one of the three supply wires.
Functional principle
When the motor starts up, the softstarter automaticly switches the series
resistor to a preselectable maximum value. In this way, one of the stator windings will receive a reduced voltage and therefor a reduced current while the other two receive the full voltage supply.
Through this manipulation, the otherwise constant and perfectly circular torque chracteristics are changed to an ellipse. The motor will run up slowly from stationary up to its nominal speed. While the motor is accelerating, the electronic series resistance is continuosly reduced in value, and when the nominal speed has been reached, the resistance is interally short-circuited using a relay. In this way, it is possible to leave the softstarter permanently in the main circuit with no additional power loss.
The values for starting torque and time to reach nominal speed can be
set on the stepless 10-gang potentiometer.
Technical data
Input voltage: 3 x 400 VAC / 3 x 440 VAC (without N)
Output: 3 x 400 VAC
Output current: 8.5 Amp.
Power: max: 3.5 kW
Operating temperature range: -20°C / +70°C
Mounting: On rails acc. to DIN 46277 or wall mounting with screws
|
|
These soft starters are microprocessor controlled and are designed to work with asynchronous motors connected in open delta configuration. By using this technique the soft starter can handle more power than when connected in a conventional star circuit. Motors of up to 55kW open delta (37kW star)can be controlled with this range of units.
The M300 range limits the current during start-up and so it is more efficient. All settings are made through a touch panel which incorporates an LED display.
They protect the mains supply from sags and damaging surges (transients), whilst reducing the current demand during start-up.
|
|
|
|
|
|
WEG soft-starters, microprocessor controlled and fully
digital, have been designed to provide high performance
in starting and stopping electric motors. The keypad
offers a friendly interface for parameter adjustment
making the operation much easier.
SSW05
• Power rating: 0.75 to 75 HP (0.55 to 55 kW)
• Power supply: 220 to 575 V
• Built-in by-pass
• DSP control
• Remote keypad (optional)
• Built-in motor protections
• PID regulator
• DSP control
• Ambient Temperature up to 55 C (131º F)
SSW06
• Power rating: 30 to 2650 HP (22 to 1950 kW)
• Power supply: 220 to 575 V
• Built-in by-pass
• Removable HMI with LED and LCD display
• Kick-Start function for loads with high inertia
• Pump control for intelligent pumping system control
• Full digital / 32 bits RISC microcontroller
• Eletronic motor protection
• Ambient temperature up to 55 C (131º F)
SSW07
• Power ratings: 6 to 30 HP
• Voltage: 220...575V
• Built-in Bypass
• Built-in EMC filter
• High starting duty cycle
• Three-phase controlled
• Integral motor and starter protections
• Programmable KICK-START function to start high break-away torque loads
• Remote HMI
• Very compact product
• It is able to operate in 55ºC without derating
|
|
Soft starter DS6
"In Line" starter in a compact design up to 110 kW
DS6 the smallest soft starter world-wide in the 75 – 110 kW class.
Provided in just two sizes the DS6 enables a two-phase controlled motor start for assigned motor ratings from 18.5 kW to 110 kW (at 400 V). During uninterrupted operation the thyristors are bypassed via internal bypass contacts.
Simple and easy handling comparable with the devices of the DS4 series. Using three setting options: USTART (start voltage in %), tSTART (start-up time) and tSTOP (delay time) in seconds (s) the start conditions can be adapted to suit the respective application.
Two light-emitting diodes (LEDs) provide operational status indications and error diagnostics; two potential-free relay contacts (ready for operation, top-of-ramp) can be used to control external components.
The dimensions and connection terminals correspond to the proven Moeller standards for the circuit-breakers NZM1 (up to 55 kW) and NZM2 (up to 110 kW).
|
|
MCD 100 is a cost effective and extremely compact soft starter for AC motors up to 11 kW, due to a unique semiconductor design.
MCD 100 is a true “fit and forget” product.
Selection can be made on the basis of the motor power – exactly as with traditional contactors.
|
|
ASTAT%u2122 Solid State Reduced Voltage
GE offers 3 lines of ASTAT solid state reduced voltage starters. The ASTAT SD is a line of compact, high performance three phase starters, available to 25hp @ 460v. The SD is a full functional soft starter with complete starting/stopping control and fault diagnostics. The ASTAT IBP Plus is a line of bypass solid state starters featuring a fully rated bypass contactor. These starters are rated up to 300HP @ 460v. The design is completely wired allowing quick, simple installation into either new or exisxting installations as a replacement for traditional starters. Bypass contactors are a must for enclosed installations where free air movement is not possible. The ASTAT CD Plus is the most full featured starter in the ASTAT lineup. Parameters include soft start voltage ramp, kick-start, current limiting, an energy saving feature, thermistor input, soft stop, pump control, DC injection breaking, communications, jog/slow speed and tachometer feedback.
|
|
|
Devices for different power classes are available for continuously optimized startups and shutdowns and for eliminating sudden stresses on conveyor systems, elevators and pumps. Different models ranging from compact devices with built-in bypass contactor through to large modular units with current-limited startup help to reduce maintenance costs.
|
|
|
|
|
|
The ASTAT XT soft starter delivers reliable performance and smooth acceleration for a range of standard AC motors, from 8A-1400A and from 230V-690V. By controlling motor acceleration and deceleration, it reduces mechanical wear and tear on motors better than across-the-line starting methods. This is particularly true in such applications as pumps, fans, compressors and conveyors.
A simple interface for fast set-up and operation
Its backlit LCD screen, which delivers full descriptions of parameters, makes the ASTAT XT easy to use. In two rows of 16 characters each, it displays the function selected and the value of the setting and/or monitor. Selecting and changing parameters is simply done with the arrow keys. Via any one of four selectable user languages (English, German, Italian, Spanish), it delivers:
• Data Readouts – e.g. Line Voltage, Motor Current, etc.
• Fault Diagnostics – e.g. Overload, Overvoltage, Undercurrent
• Statistical Data – e.g. Elapsed Run Time, Fault Recording, Trip Event, etc.
• Parameter Settings – e.g. Acceleration Time, Starting Voltage, Motor FLA
|
|
Electronic soft-start modules 2.2...7.5 kW
Mechanical
¨ Low adjustable starting torque
¨ Reduced cost of drive components
Conveyor belts
¨ Falling over, banging or slipping of products, parcels etc. is eliminated
Electrical
¨ Reduced starting current (with SM, SM2X, SM2 only)
Applications
¨ Conveyor belts
¨ Packing equipment
¨ Long-travel drives for cranes
¨ Compressors
¨ Heat pumps
¨ Vibration transporters
¨ Machines with gearbox, belt or chain drives
¨ Special version for pole-change motors
Features
Switch-on torque and run-up voltage ramp separately adjustable.
¨ Module housing for mounting on 35 mm DIN rails. Very compact version with the width of a standard contactor (45 mm or 90 mm with SM2X)
¨ Terminals and potentiometers are well protected against accidental contact
¨ Easily retrofitted
¨ Can be used as a combined soft-start and injection brake using the electronic brake modules LEKTROMIK B1
|
|
