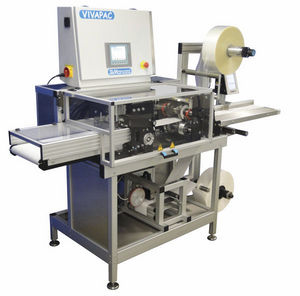

Automatically forms, fills, and seals 4-side seal sachet
Adjustable vertical sealing dies to accommodate a single pack width
Auger style product filler
Horizontal sealing dies with air operated cut-off knife
Single laminate roll unwind unit with constant tension arm and guide rollers
Photo eye registration to ensure correct positioning of the film in the sealing area
Accurate sealing die temperature controls with fully controllable die pressure
Comprehensive control panel with cycle counter
Tear cut in vertical seal
Servo or Mechanical drive system
Full safety guarding
Metric construction
Machine Speed: up to 50 cycles per minute
Deboss coding is also available
Pack Widths: 30mm to 260mm
Pack Lengths: 30mm to 255mm
|
|
FOUR SIDE SEAL MULTILANE MACHINE MODEL PS-4
Vertical Form Fill Seal
Model PS-4
Features
- Handle all kind of product
- The machine can be supplied with auger filler, cups unit, counter system, and other special filling machine.
- The bag length is electronically adjustable as required on the machine itself while it running. And it can be varied with in 1 mm.
- Photo cell to center the print.
- End of reel detector.
- Easy cleaning and access all parts.
- Vertical knife can be easy take out for grinding.
- The sealing jaws are constant heat control by PID temp' controller.
- Photo cell to center the print.
- Conveyor to discharge the bag
- Control by PLC with touch keyboard.
|
|
|
|
|
|
The machine frame is constructed in specially treated and hardened aluminium, all parts in contact with the product are in AISI 316L stainless steel.
The reel of packaging material is housed inside the machine, completely enclosed and protected from external contamination; the reel shaft is positioned to permit easy mounting. The machine comprises 3 Brushless servomotors.
Basic operations are controlled by means of the PLC interfaced with a display panel. Visualization of the following operations from the control panel: length of sachet, output speed, temperature of sealing jaws and sealing rollers, bag-counter, machine alarms, etc. Settings that can be made from the control panel include: length of sachet, output speed, number of sachets to form a group, sealing temperatures, timing for various devices such as printer, vibrator, etc. Photocell mark registration for printed film. Modem for remote diagnosis of PLC software status and display settings. Machine protections with power cut-off when doors are opened. Electrical control cabinet according to the norms in force. Servomotor driven Liquid feed systems according to the type of product, designed for high speed running on up to 16 production lanes.
Feeder suitable for semi-dense liquids containing small particles.
Wide dose range by regulation.
Servomotor driven to allow high speed and easy set up.
Installed power 3 kW.
Air consumption 30 Nl/min. at 6 bar.
|
|
|
|
|
|
|
Automatic vertical packaging machine designed to form-fill and seal stick packs (3 side seal) starting from a single reel of packaging material. Rapid size change by substitution of forming tubes only. Complete with: forming tubes in stainless steel - Photocell for print centering - heated bar sealing with constant temperature controlled by independent thermo-regulators for each lane integrated by PLC - Mobile support for the sealing and forward movement of film controlled by brushless servomotor - Stop machine at end of reel and motorized unrolling of the same. Operations controlled by PLC and Modem for remote troubleshooting. Visualization from the panel: temperature of the finn sealers and of the heated bars - production speed - number of sticks produced - alarms, etc. Settings carried out from the control panel: output speed, seal temperature, enabling of devices eg. printer, agitator, vibrator, photocell, etc. Safety protections with Power cut-off if doors are opened. Electrical control cabinet according to the norms in force. All parts in contact with the product are in AISI 316L stainless steel.
|
|
The TUBE model packaging machine is a machine with alternating movement that forms, fills and seals stickpacks. These sachets, sealed on 3 sides, are a tubular shape, called “sticks”, or a pyramidal shape, called "tetrahedrons". The machine body is made from anodized aluminium and stainless steel. The parts that come into contact with the product are made of stainless steel. The good quality of the materials used and the cantilever sealing areas allow easy cleaning and high versatility for disassembly. The machines are equipped with a PLC and control display to constantly monitor the dispensing parameters and make the transformation process from stick to tetrahedron quick and easy.
Dosing Unit: volumetric (adjustable).
Products to be packaged: flowing powders and granular products.
Depending on the width of the stickpack, the machine is produced with 2 to 20 lanes.
|
|
FW3430/B
- Three side seal bag, it makes the entire face of pack available for impact and branding messages.
- Hygienic cantilevered open construction under main frame allows products crumbs to fall through the wrapper.
- Box motion end sealer model for hermetic seal package.
|
|
Automatic vertical packaging machine designed to form, fill and seal on 4 sides sachets of thermosealable material. Constructed with a modular system to facilitate rapid size change operations.
The machine frame is constructed in specially treated and hardened aluminium, all parts in contact with the product are in AISI 316L stainless steel.
The reel of packaging material is housed inside the machine, completely enclosed and protected from external contamination; the reel shaft is positioned to permit easy mounting.
The machine comprises 3 Brushless servomotors.
Basic operations are controlled by means of the PLC interfaced with a display panel.
|
|
|
|
|
|
Multi-purpose machine with TWIN- DOSING- SYSTEM for all product types in four-side-seals, single-dose sachets.
The OMAG C3/1, one-lane-version, is the most versatile machine of the C3 product line.
It can be used for all product types and, without changing parts, is able to produce sachets dimensions from minimum 50 x 85 mm up to a maximum of 140 x 220 mm, with doses from 1 to 250 cc.
It can be equipped with different dosing systems:
Volumetric filler (for free flowing granular products)
Auger filler (for non free flowing powdery products)
Pump filler (for liquid, viscous and pasty products)
Vibrating filler with counting unit (single units/pieces)
In its Two-lanes-version, namely OMAG C3/2, the sachets dimensions can range from a minimum of 45 x 70 mm to a maximum of 70 x 150 mm, with doses from min. 1 to max. 50 cc.
The picture shows the machine fitted with telescopic cup dosing system for granules and free flowing products. The second filler, by auger filler, for powders and non free-flowing products, can be easily rotated aside and re-set on working position in a few minutes.
PLC- Control-program system + keyboard OMRON TOUCH SCREEN allows to set up and modify the synchronism of the machine and memorize up to 10 different working programs.
|
|
FW3431FS/B
- Four side seal bag, it makes the entire face of pack available for impact and branding messages.
- 2 different film materials can be used for your product wrapping.
- Box motion end sealer model for hermetic seal package.
|
|
|
|
|
|
Multi-lane vertical tubular machine to fill and pack various types of products in single-dose stick-packs.
The intermittent motion unit of OMAG's mod. CS starts from heat-sealable film fed from the reel, cuts it into the number of webs corresponding to the number of lanes and, through small folding shoulders, performs tubes that are first sealed lengthwise by heated bars (Fin-seal) . Then, the bottom cross seal is performed, the product is dosed and dropped into the bag, the top cross seal is performed and the cross cut/separation of the stick-packs are then out fed on a belt conveyor. The cross cut is performed by its specific cutting device, separate from the sealing device.
Dosing systems:
Variable volumetric filler with oscillating hoppers and twin set of distributing cups.
Granular and free flowing products /
doses up to 30 cc.
Auger filler with independent BRUSHLESS POWERING on each lane.
Powdery, dusty, non free flowing products / doses up to 30 cc.
Filler with timed electro-valves / dose by cycle - timer.
Liquid products / doses up to 30 cc.
Different flavours possible.
Pump filler with rotating valve distribution and shrinking system at end of dose unload.
High viscosity, low viscosity and liquid products / doses up to 30 cc.
All fillers are micro-metrically adjustable while machine is running and can be previously (before start) fine-adjusted on each single lane independently.
|
|
The TUBE model packaging machine is a machine with alternating movement that forms, fills and seals stickpacks. These sachets, sealed on 3 sides, are a tubular shape, called "sticks", or a pyramidal shape, called "tetrahedrons". The machine body is made from anodized aluminium and stainless steel. The parts that come into contact with the product are made of stainless steel. The good quality of the materials used and the cantilever sealing areas allow easy cleaning and high versatility for disassembly. The machines are equipped with a PLC and control display to constantly monitor the dispensing parameters and make the transformation process from stick to tetrahedron quick and easy.
Dosing Unit: volumetric (adjustable).
Products to be packaged: flowing powders and granular products.
Depending on the width of the stickpack, the machine is produced with 2 to 20 lanes.
|
|
|
The varied use of OYSTAR Hassia StickPack is mostly obvious for products that are consumed in portions. The consumer-friendly StickPack packaging by Hassia opens up new application possibilities as well as opportunities to increase the sales of both newly developed products and established brands.
|
|
Technically advanced and economical, flexible packing
Capable of packaging an almost unlimited range of products, into a diverse range of bag shapes and sizes.
Modular design ensures, the VPI is perfectly equipped for handling future packaging needs, producing new trends in bag design or processing new wrapping material.
Advantages:
Freely adjustable sealing temperatures offer high flexibility
Long sealing times and high sealing pressure ensure bag integrity
Vacuum draw down as standard, ensures very thin wrapping material can be processed
Patented maintenance free servo-motor drive for higher performance (up to 120 bags/min),
100% commercially available operator controls with user friendly Touch-Screen, ensures ease of operation
Adjustment parameters electronically programmable for reduced down times
Gas flushing for product protection. With pre-gas flushing, a residual oxygen content of <1,0% is guaranteed
|
|
ARAfrom equipment is specifically designed for product dosage in granulated and semi-granulated products. A modular system and high production rates are its most important characteristics.
Starndard equipment
touch screen
expanding reel shaft
total hermetic and monobloc machine
easy cleaning
centralized cleaning
photocell automatic correction of impression
CE certificate
stick presence control per dosing
unwinder with security projections
unwinder motorized
temperature control from the touch screen
automatic stickpack length change
vertical folding and independent jaws
semi automatic reel aligner
parts in contact with product of AISI-316
|
|
ARAone equipment with the high demands of the dairy foods industry reach a production speed of 900 sticks per minute, boxing included, with a standard version in cornerless stainless steel, integral CIP and baths.
Starndard equipment
touch screen
expanding reel shaft
total hermetic and monobloc machine
easy cleaning
centralized cleaning
photocell automatic correction of impression
CE certificate
stick presence control per dosing
unwinder with security projections
unwinder motorized
temperature control from the touch screen
automatic stickpack length change
vertical folding and independent jaws
semi automatic reel aligner
parts in contact with product of AISI-316
|
|
|
|
|
|
TETRAHEDRON PACK MODEL PM-80
For packing a wide range of liquids and semi liquids in pillow bags and Tetrahedron pack.
Easy and simple to operate.
Material can be pack polyethylene and other laminate.
The vertical form fill seal machine, forms the bag, fills it with the product and seals it in a full automatic cycle.
The transport of the wrapping material is affected by a pair of special rubber belt, and operates by mechanically driven system.
The vertical sealing jaws are pneumatically operated.
The horizontal sealing jaws are pneumatically operated.
Foil transported threw dancing roller system to insure low tension.
The feeder of the foil from the jumbo roll is done by motor gear.
The control of the machine is done threw our external control panel key board.
Features
- Handle all kind of product
- The bag length is electronically adjustable as required on the machine itself while it running. And it can be varied with in 1 mm.
- Photo cell to center the print.
- End of reel detector.
- Electronic variable speed.
|
|
The Tube/S is a vertical packaging machine with intermittent movement for packaging tubular sachets sealed on 3 sides (sticks). The machines are equipped with a PLC and touch-screen to constantly monitor functions and parameters during the dosing phase to allow the diagnostics of alarms and any anomalies which may occur. The machine is made of stainless steel and anodized aluminium. The sealing zone is a cantilever with respect to the machine body, the movement is internal and separate from the sealing assembly. Easy cleaning, high versatility in format changes and full respect of the concept of friendly operation (which facilitates working with and on the machine) make the machine excellent in the field of packaging and compliant with the requirements of standards GMP and FDA.
The action of the Tube/S machine is controlled completely by Brushless servo-motors which provide high-precision of dosing, accurate sealing and optimal tolerance of length and centring of the stickpack.
|
|
ARAnorth equipment offers a perfect balance between performance and effective cleaning and maintenance systems. With a capacity of up to 1,200 sticks per minute, automatic nozzle heights, centralised lubrication and tool-free cleaning.
Starndard equipment
touch screen
expanding reel shaft
total hermetic and monobloc machine
easy cleaning
centralized cleaning
photocell automatic correction of impression
CE certificate
stick presence control per dosing
unwinder with security projections
unwinder motorized
temperature control from the touch screen
automatic stickpack length change
vertical folding and independent jaws
semi automatic reel aligner
parts in contact with product of AISI-316
|
|
Tornado Stick 6 Lanes :
6 lanes stick-pack machine with rapid size change by forming tubes substitution only. With a stick width range from 17 to 50 mm this model represents a unique solution in the packaging market to produce, for example, on the same machine 22 mm diameter sticks of coffee powder, 35 mm diameter sticks of cappuccino powder and also 50 mm sticks of drinking chocolate. Ideal for contract packers or small companies with a diversified production.
|
|
The Tube/S is a vertical packaging machine with intermittent movement for packaging tubular sachets sealed on 3 sides (sticks). The machines are equipped with a PLC and touch-screen to constantly monitor functions and parameters during the dosing phase to allow the diagnostics of alarms and any anomalies which may occur. The machine is made of stainless steel and anodized aluminium. The sealing zone is a cantilever with respect to the machine body, the movement is internal and separate from the sealing assembly. Easy cleaning, high versatility in format changes and full respect of the concept of friendly operation (which facilitates working with and on the machine) make the machine excellent in the field of packaging and compliant with the requirements of standards GMP and FDA.
The action of the Tube/S machine is controlled completely by Brushless servo-motors which provide high-precision of dosing, accurate sealing and optimal tolerance of length and centring of the stickpack.
|
|
ARAopris equipment has been specially created to offer high performance in the packaging process of powdered products, from hotel and catering to dietary products, fatty products and food in general.
Starndard equipment
touch screen
expanding reel shaft
total hermetic and monobloc machine
easy cleaning
centralized cleaning
photocell automatic correction of impression
CE certificate
stick presence control per dosing
unwinder with security projections
unwinder motorized
temperature control from the touch screen
automatic stickpack length change
vertical folding and independent jaws
semi automatic reel aligner
parts in contact with product of AISI-316
|
|
FW3430/B
- Three side seal bag, it makes the entire face of pack available for impact and branding messages.
- Hygienic cantilevered open construction under main frame allows products crumbs to fall through the wrapper.
- Box motion end sealer model for hermetic seal package.
|
|
PBV2
PBV 2 is a multi-line continuous motion vertical form, fill and seal machine which is used for packing of fine, loose and particulate materials as well as liquids and semiliquids into flat bags. Drive of the machine is electromechanic, the secondary functions are controlled by pneumatic. This machine is equiped with SIEMENS control system.
Equipment options:
Volumetric doser
Auger doser
Slide-valve doser
Doser for liquids
Doser for semi-liquids
Heat sealing bars
Infeed conveyor
Outfeed conveyor
Dividing and counting of bags
Photo electric eye for print registration
Printer
Inkjet printer
Gas flushing
Metal detector
|
|
FW3431FS/B
- Four side seal bag, it makes the entire face of pack available for impact and branding messages.
- 2 different film materials can be used for your product wrapping.
- Box motion end sealer model for hermetic seal package.
|
|
|
Sigpack Systems flat pouches are distinguished by extremely high weight accuracy and perfect, hermetical seals. For this reason, their main areas of application lie in the packaging of high-quality powders and granules from the pharmaceutical, chemical and food industries.
|
|
| ... products without technical information |
| |
ARAnow + Flowpack machine
A complete turnkey solution, packaging and box wrapping line, with all the guarantees of ARANOW equipment, its maintenance and modular system together with high productions define it as a highly competitive line.
|
|
|
|
