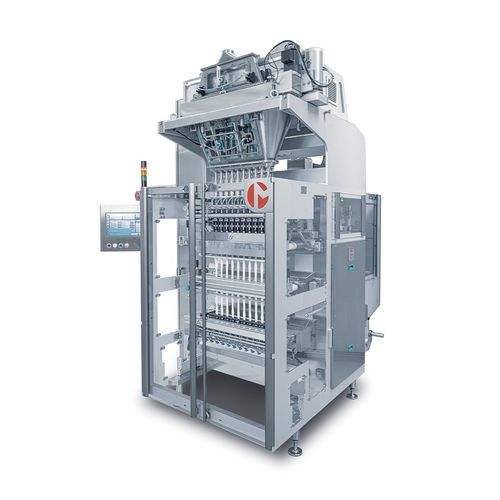

Automatic filling and sealing machine MT Series

liquidsstickpacksyringe

The machines of the MT SERIES are stickpack machines at 10 lanes, operating at intermittent motion to form, fill and seal “stick-packs” starting from single reel of flexible heat-sealable packaging material, equipped with: • Auger Filler dosing unit at 10 lanes suitable for pharmaceutical dry products, either powder and granules; • 10 augers screw filler designed in accordance to the product specifications. Each Auger Screw lane, is independently driven by Brushless motor to allow a perfect dosing accuracy and eventual volume/weight self-correction in case the line is equipped with a checkweigher (through the Feedback packet correction system); • 10 forming tubes with collars, blocks and fingers which are able to self-centring and guiding the film properly into forming channels; • GROUP OF FAST RELEASE to allow the disassembly of the main stations (which composing the machine) in a quick, safe and ergonomic manner, in order to guarantee a high efficiency for maintenance, cleaning or format-size change; • NO HTRP: special machine design and construction in order to remove - or to reduce to minimum - all Hard To Reach Points on operating site (no exposed cables, piping, motors, cylinders …etc.), for an easy access and cleaning operations.
