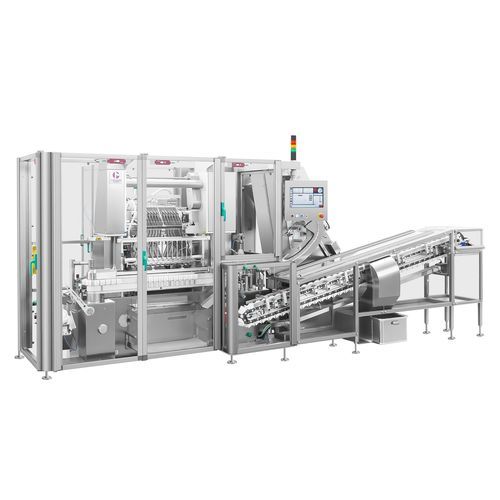

Automatic rigid tubes filling and closing machine, suitable to count and introduce positively tablets in plastic or metallic rigid tubes, cylindrical-shape.
• Final tube closure with pressure cap and discharge of the tubes correctly filled on a bucket conveyor at machine outfeed, with cap facing the operator side;
• Extremely compact tube feeding;
• Tube transport is carried out through bushes that proceed with synchro-dynamic movements;
• The tablet insertion is made with a system that moves them in positive way by means of a pick&place system;
• Machine is manufactured in strictly compliance with GMP norms;
• Balcony type (cantilever);
• Conceived to clearly separate the working area from the area containing mechanical transmissions and electrical equipments;
• Made of steel an aluminium with AISI304 stainless steel panels. The machine operating parts are constructed with materials suitable to operate at direct contact with product.
PRODUCT RANGE -
Tubes Diameter: - from 16 to 40 mm
Tubes Length: - from 60 to 160 mm
Tablets Diameter: - from 14 to 35 mm
Tablets Thickness: - from 3 to 8 mm
Cap Diameter: - from 18 to 44 mm
Cap collar Height: - from 1 to 10 mm
