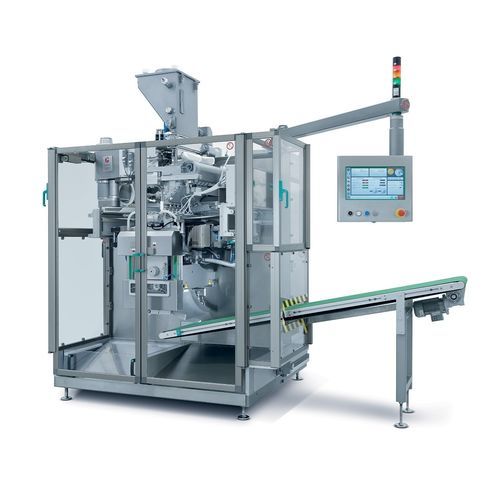

Intermittent motion vertical sachet filling/sealing machine suitable for medium and high production rate lines, built according to cGMP regulations.
• New dosing unit;
• All product contact parts are in stainless steel or in FDA approved material;
• Sealing in flat with mechanical movement;
• Sealing pressure adjusted by an exspansion membrane operating on one of the jaws;
• Film drive system with cold rollers;
• Cutting and/or perforation on extractable frame to facilitate cleaning;
• Stacking and couting unit with cartoner connection;
• Mechanical transfer sachet stacking;
• Count number can be set on display;
• Sachet weight statistical check.
PRODUCT RANGE:
Sachet length: from 60 to 150 mm
Sachet width: min. 25 mm., max. to see with the product
Web width: standard 400 mm - max. 420 mm
Reel outer diameter: max. 500 mm
OUTPUT:
Cycles/min: up to 75
