Features and Benefits:
Bolttech is known for solving the toughest bolting problems found in the industrial world today. These basic practices go into every design and manufacturing detail of our stud tensioning line of tools. We design our tensioners with quality, simplicity and versatility of the specific application and user in mind. Bolttech's Delta Series bolt tensioners maximize efficiency and minimize size for specific single stud size applications.
- Patented high pressure/low friction seals are designed to outlast the competition and provide accuracy within .5% with a calibrated pumping unit.
- Environmentally friendly, using water-filled tensioning systems.
- The direct axial load is applied to the bolt and inaccuracies created through friction are alleviated. |
|
HYDRAULIC BOLT TENSIONING DEVICE
Output 155Kn to 4476Kn, Stroke up to 15mm, Suitable for Bolt Sizes M18 to M115 in various models
|
|
In its standard range of hydraulic tensioners, SKF Equipements offers no less than 6 different types of tensioners with characteristics which are both different and complementary.
The product range includes multi- purpose, powerful, thin, compact and other types of tensioners, covering a wide range of bolt dimensions from M8 to M160 (5/16” to 6”), and able to apply pre-tightening loads ranging from 50 kN to 8500 kN.
|
|
The RotaBolt® range provides you with either finger-tip, visual or remote measurement of tension throughout the life of the bolted joint. They surpass traditional tightening methods such as:
- Hydraulic Tensioners
- Flogging
- Torque Systems
which have severe control limitations and can result in unpredictable bolt tension and joint failure.
RotaBolts are setting new safety standards in a wide variety of sectors where joints are subject to fatigue, vibration, pressure containment and structural slippage.
|
|
| ... products without technical information |
| |

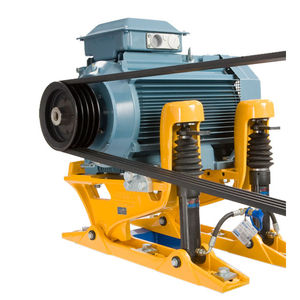

Factory Adjusted Belt Tensioner
This new belt tensioner design is based on the fixed motor principle that relies on a movable idler to properly tension the belt rather than tensioning with a motor mounted to a moving slider plate.
The new design takes the guess work out of changing and adjusting a spindle drive belt in the field. The tensioner is factory set to take the guess work out of setting drive belt tension. Pre-drilled and aligned tensioning brackets ensure the new belt is set to original specifications eliminating the possibility of over-tensioning a spindle drive belt- a very common cause of spindle failure.
Advantages
Increased rear bearing life due to the fact that it becomes no longer possible to over-tension the belt. The proper tension of the belt is determined and set at SETCO to provide optimal life and performance on a per application basis.
The new, robust cast aluminum mounting bracket (Belt Guard) offers a much stronger, more rigid structure to support the motor.
Increased belt life...proper tension eliminated premature belt wear.
Because the belt geometry is fixed by the idler, it reduces the time required for belt replacement.
Once the motor is aligned and mounted to its mounting plate, it never needs to be adjusted or moved. This eliminates the need for special equipment availability such as an over head crane.
The new design uses common parts for mounting the motor facing the spindle nose or towards the rear. The parts are used regardless of spindle rotation direction.
|
|

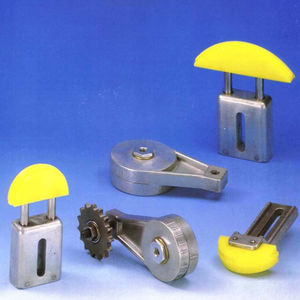

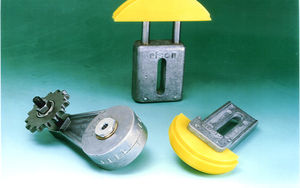

ROSTA chucking device type SE/SE-G/SE-W
ROSTA chucking device SE-F
ROSTA chucking device IS (INOX)
ROSTA chucking device type SE-B "boom rank"
ROSTA belt tension adjuster type KSE
ROSTA of chain wheels and chain wheel-corrodes type N
ROSTA chain glider and chain-glider-corrodes type P
ROSTA cylindrical idler type R
|
|
Magnetic Technologies Ltd. offers custom payoff stands and devices that maintain constant tension through the use of permanent magnets.
• No belts or chains are used
• Available in several sizes. |
|
| ... products without technical information |
| |
Ratchet Tie Down (European market)
Ratchet lashing are used for fixation cargo while transporting, shifting or moving, storage.
After locking, no relax during transportation, safety, saving, light, easy to use, and no damage for cargo.
**100% high tenacity polyester of lashing strap
**Low elongation
**Popular color of strap:orange,blue,yellow,red,black
**Width available:25mm to 100mm
**Breaking strength scope:0.5t to 10t
**Length available:1m to 10m Loose end length by customers requires.
**According to EN 12195/2
others name: cargo tie down, cargo straps, tie down, cargo lashing
Warning:
1.Only use undamaged ratchet lashing, the label indicating the capacity must be clearly legible.
2. Ratchet lashings must not be overload.
3. Do not tie knots in the webbing.
4.Protect the webbing against abrasion and/or cutting by using edge protectors and sleeves for sharp edges.
5.Avoid twisted positioning of the ratchet lashing.
6.Do not place loads on the ratchet lashing, which could cause damage.
7. Ratchet lashings should not be used as a load lifting gear.
|
|
Turnbuckles
Reference: TE.1-36.2
Weight: 18
Dimensions: 1350 - 950
Material: Forged steel
BL: 36
S.W.L.: 18
Finished: Galvanized
Counter Parts : Bars |
|

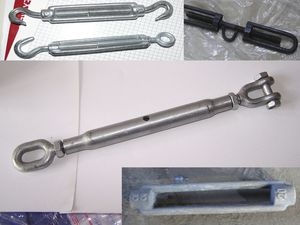

Turnbuckle:
Turnbuckle Frames DIN 1480, drop forged- Electro Galvanized
Turnbuckle Frames DIN 1478, Electro Galvanized
Turnbuckle DIN 1478, Pipe Body Type Eye & Hook
Hamburger DD Turnbuckle - Lashing Turnbuckle
Rigging Screws Eye & Eye Turnbuckle HDG
Rigging Screws Jaw & Eye Turnbuckle HDG
Rigging Screw Jaw & Jaw Turnbuckle HDG
Turnbuckle DIN 1480 Eye & Eye- drop forged - Rigging Hardware
Turnbuckle DIN 1480 Hook & Hook - drop forged- Rigging Hardware
Turnbuckle DIN 1480 Hook & Eye - drop forged -- Rigging Hardware
Turnbuckle Mallable Commercial Type
Turnbuckle Stub End Drop Forged - US Type
Turnbuckle Drop Forged Jaw & Eye, US Type
Turnbuckle Drop Forged Jaw & Jaw - US Type
Turnbuckle Drop Forged, Eye & Eye - US Type
Turnbuckle Drop Forged Hook & Eye - US Type
Turnbuckle Drop Forged Hook & Hook - US Type
Turnbuckle-General Information-Rigging Hardware
