PICOTIG 180
TIG and MMA inverter DC welding machine
HIGHLIGHTS
Easy transport using the carrying strap, e.g. on ladders and scaffolds
Innovative inverter technology for small, compact design and low weight
Self-explanatory operating interface with one-dial operation
Overvoltage protection - Accidental connection to 400 V mains voltage will not result in damage to the machine
Intelligent casing design for reduced contamination in the machine
Robust, impact-resistant plastic guarantees functionality and safety even if dropped or knocked
Large operating voltage range (138V-265V)
Reproducible, safe ignition
Innovative inverter technology with digital control for a stable arc
Safe and reliable to use: Positioning of the electronics in low-dust area, Operating controls in protected position, Integrated temperature monitor for protection against overload
MAIN AREA OF USE
TIG welding: Unalloyed, low-alloy and high-alloy steels, nickel-based alloys, copper and special materials, repair welding on cast aluminium components
MMA welding with rutile and basic coated electrodes: Unalloyed, low-alloy and high-alloy steels, nickel-based and copper alloys
FEATURES
TIG and MMA inverter DC welding machine
Portable, gas cooled, decentralised, 2m mains supply lead with 16A shock-proof pulg
Connection option for remote control
Welding current, reduced welding current, down slope and gas post-flow time 0.1-20 sec. can be set
Non-latched/latched, MMA/TIG, HF ignition/Liftarc
Comprehensive functions for MMA welding: Hotstart current and time, arcforcing correction, antistick
|
|
|
|
|
|
TETRIX 521 AC/DC activArc
TIG inverter AC/DC welding machine
HIGHLIGHTS
Maximum efficiency for all requirements with reproducible welding results and excellent quality thanks to the fully digital inverter welding technology
Unique AC functionality: Synchronous operation of 2 machines for two-sided, simultaneous welding, AC special for the easy joining of very different thickness aluminium panels, e.g. 1 mm to 10 mm
EWM activArc – the powerful TIG arc
Self-explanatory, intuitive operating concepts for everyone - either the standard setting, job mode or synergic one-dial operation
Maximum mobility: fits through standard doors, easy loading and unloading thanks to the even wheel gauge
Intelligent casing design with optimised air guidance for longer duty cycle and ventilation control for less contamination in the machine.
Powerful cooling system for the torch, with centrifugal pump, cooler with large surface area and an extra-large tank
COMFORT, SYNERGIC: Ideal for robot, industrial bus and mechanised applications and documentation via optional interfaces
MAIN AREA OF USE
TIG AC welding: Aluminium and aluminium alloys
TIG DC welding (minus pole): Unalloyed, low-alloy and high-alloy steels, nickel-based alloys, copper and special metals
MMA welding (direct current) with rutile and basic coated electrodes: Unalloyed and low- and highalloy steels, nickel-based and copper alloys
FEATURES
Mobile, water cooled, decentralised, can be lifted by crane and moved by -fork lift, 5m mains supply lead
pressure monitor, pump and temperature-controlled fan
100% tested and free welded
|
|
|
|
|
|
PICOTIG 230 AC/DC PowerSinus
TIG and MMA inverter AC/DC welding machine
HIGHLIGHTS
Professional TIG AC and DC welding with excellent ignition and welding characteristics
Simplest possible operation – ideal for assembly work
Overvoltage protection – accidental connection to 400 V mains voltage does not result in damage to the machine
Also ideal for construction site use thanks to the exceptionally large mains voltage range for problem-free use on long mains leads and on a generator
MAIN AREAS OF USE
TIG AC welding: Aluminium and aluminium alloys
TIG DC welding (minus pole): unalloyed, low-alloy and high-alloy steels, nickel-based alloys, copper and special metals
MMA welding (direct current) with rutile and basic coated electrodes: unalloyed, low-alloy and high-alloy steels, nickel-based and copper alloys
Production and repair work, metal construction, facade, conservatory and window construction, roof-fitting, heating and ventilation construction, food and chemical industries, pipeline, closed container and equipment construction, vehicle, machine, plant and tool construction, and more
FEATURES
Portable, gas cooled
Robust plastic casing, with practical carrying strap as standard
AC and DC TIG welding with HF ignition and liftarc
Non-latched, latched, tapping mode
Manual welding: hotstart, arcforcing, antistick
One-dial operation – one large rotary dial for setting all values
Reproducible setting of all welding parameters on the digital display
|
|
|
|
|
|
TETRIX 350 AC/DC activArc
TIG inverter AC/DC welding machine, modulare
HIGHLIGHTS
Maximum efficiency for all requirements with reproducible welding results and excellent quality thanks to the fully digital inverter welding technology
Synchronous operation of 2 machines for two-sided, simultaneous welding, AC special for the easy joining of very different thickness aluminium panels
Maximum flexibility thanks to the modular and futureoriented machine system: Upgrade to fit the need – no additional tools or specialist staff required.
EWM activArc – the powerful TIG arc
Self-explanatory, intuitive operating concepts for everyone - either the standard setting, job mode or synergic one-dial operation
Maximum mobility: fits through standard doors, easy loading and unloading thanks to the even wheel gauge
Intelligent casing design with optimised air guidance for longer duty cycle and ventilation control for less contamination in the machine.
COMFORT, SYNERGIC: Ideal for robot, industrial bus and mechanised applications and documentation via optional interface
MAIN AREA OF USE
TIG AC welding: Aluminium and aluminium alloys
TIG DC welding (minus pole): Unalloyed, low-alloy and high-alloy steels, nickel-based alloys, copper and special metals
MMA welding (direct current) with rutile and basic coated electrodes: Unalloyed and low- and highalloy steels, nickel-based and copper alloys
FEATURES
TIG and MMA inverter AC/DC welding machine
Mobile, water cooled, decentralised, modular, 5 m mains supply lead
Powerful cooling module with centrifugal pump, pressure monitor, pump and temperature-controlled fan
100% tested and free welded
|
|
|
|
|
|
The YC-300BZ3 DC inverter TIG welding power source has been developed on Panasonic digital technology. It is 100% digital controlled and offers high quality welding.
Technical Data:
100% full digital control high performance welding
• Exact output parameters
• Sharp and stable arc start as low as 4 amp.
• Welding Method:
1. DC TIG, DC pulse TIG for mild and stainless steel as well as titanium 0.3 – 6 mm, copper and brass 0.5 – 3 mm
2. DC TIG arc spot for mild and stainless steel with 2 x 2 mm thickness
3. DC stick for diameter 2 – 6 mm
• Duty cycle: 300A / 40%
• Weight: 36 kg
• Digital interface with Panasonic robots
• Arc drive function for stick welding
• Dimensions: 510 x 380 x 410 mm (L x W x H)
• 400 V AC, 3 phases, 50 / 60 Hz
Digital display, LCD, jog dial
• Digital display for both programmed parameter and actual welding parameter
• Easy and logical parameter setting by LCD and jog dial
Quality control
• 99 memory programs
• Digital connection with the PC / network for production
management and quality control
Customer Benefits:
• Sharp and stable arc start
• Reliable quality for low maintenance and service cost
• Easy parameter setting by jog dial
|
|

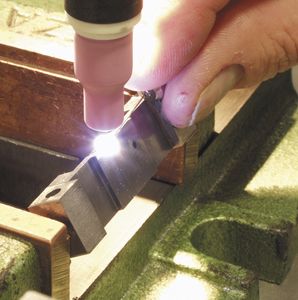

The JOKE® multiSpot technology has revolutionised repair and modification welding for tool and mould making. Easy, quick and safe – the ideal system for efficient on-site tool repair. Specially developed for pulsed welding
applications. Such fine and precise welding has so far only been possible with a laser.
|
|
Panasonic presents the full digital AC/DC-TIG power source
YC-300BP2 which was invented for AC-, DC- and Mix- TIG welding. The BP2 can be used until an AC-frequency up to 400Hz.
The BP2 is easy to operate even if several assigned functions are selected and it has a well arranged control panel. Up to 50 different welding conditions can be stored and operated.
|
|
The main advantage of Tungsten Inert Gas welding is the huge range of different materials that it can be used to weld. These materials can be welded from thicknesses of only 0.6 mm upwards, and include unalloyed and alloyed steels, aluminium, magnesium, copper, grey cast iron, bronze, nickel, silver, titanium, lead and many others beside.
The principal area of use is for welding thin and medium thicknesses of material, and for welding root passes on joints with thicker cross-sections.
|
|
|
|
|
|
INVERTIG.PRO 240 Amps DC to 450 Amps AC/DC
The new TIG feel from REHM
The INVERTIG.PRO combines the finest welding technology with the greatest degree of operating convenience. The unique partnership of the newly developed Bi-Power-Inverter and the precise, digital welding process regulation system offers as yet unattained welding properties.
the precise co-ordination of the high-quality performance components guarantees fantastic Arc Ignition and welding properties with consistant and repeatable quality at all times.
Designed for flexible use, the INVERTIG.PRO range covers a wide range of applications and is important when performance and durability affect economy.
INVERTIG.PRO – The Revolution:
Unbelievably simple and amasingly easy to handle
Easy to read, clear and self-explanatory controls and operation, are typical for REHM – without doubt, easy and quick, even when wearing gloves!
Highest duty cycle and output at sensationally low weight
No limits – Weld for as long as you want! 100 % Duty Cycle for ALL units in the INVERTIG.PRO range
Perfect arc stability
The rapid and precise welding process regulation keeps the arc stable in all situations. Perfectly safe and precise arc ignition thanks to the innovative ignition management system: Where other machines give up, the INVERTIG.PRO continues to operate perfectly.
iSYSTEM
The CAN-networked multiprocessor architecture, linked to intelligent expansion modules, opens up a wide range of uses. Simply Plug & Play.
|
|
The Personal User's TIG machine, the Diversion 165 is an easy-to-understand inverter-based AC/DC machine. Only three switches to operate: a power switch, a material selection switch, and an amperage control/material selection switch - that's it!
Dynasty 350 Maximum flexibility - Miller Electric combines advanced inverter technology with Auto-Line™ technology, offering the most flexible AC/DC TIG/Stick power supply in the welding industry.
Best in class - the Syncrowave 200 is a Squarewave power source package that provides you with professional performance at an economical price.
Maxstar® 150 STL
Best of class - Provides maximum portability and performance in most compact TIG/Stick packages in the industry. Dependability and performance all in one machine.
Industry standard - Miller Electric pioneered the Maxstar-type market, now we've perfected it. Maxstar 200 Series provides a solution for every user's needs; from simple to fully automated.
|
|
|
|
|
|
TIGMATE
The TIGMATE is a complete AC/DC, TIG and Stick welding package. All you need is a bottle of argon shielding gas or your choice of Stick electrodes and you're ready to start welding.
In the TIG mode, the TIGMATE offers superior performance: 18 gauge to 3/16 in. (1.2 to 4.8 mm) steel and stainless steel; 14 gauge to 3/16 in. (1.8 to 4.8 mm) aluminum. For thicker metals, take advantage of the Stick mode using 3/32 and 1/8 in. (2.4 and 3.2 mm) electrodes.
- Upgraded circuitry gives you finer TIG output adjustment with the remote foot or fingertip control. If you need more output while using the remote control, simply increase the setting of the front panel amperage control.
- AC output for superior aluminum welding, DC output for mild and stainless steel
- Four-position polarity and range selector switch offers two AC current ranges, DC electrode (-) for TIG, and DC electrode (+) for Stick
- Special arc starting circuitry eliminates high-frequency starts
- Built-in arc assist stabilizer for AC TIG on aluminum
- Built-in arc assist starter for DC TIG
- Process switch automatically sets machine for TIG or Stick
- Unique "flow-through" shielding gas TIG torch connection allows removal of torch without tools
- Preset automatic postflow timer protects tungsten tip, workpiece and torch
- Automatic high temperature shutdown
|
|
Based on the very latest IGBT inverter technology, TIG power sources with high frequency arc striking of the MATRIX series are equipped with an innovative digital panel for the complete control of all the welding parameters.
The excellent technical characteristics of these welding machines, coupled with the feature of digital control, allow high quality TIG welding, suitable for the toughest industrial applications and maintenance.
These highly advanced technology power sources are robust and user friendly: MATRIX HF’s, DC output only, enable TIG welding of mild and stainless steel, copper and its alloy.
MATRIX series power sources also offer excellent performance also in MMA welding with the most difficult basic and cellulosic electrodes.
|
|
Genesis 200 CLS
The Genesis 200 CLS is a welding inverter for MMA and TIG LIFT welding, offering exceptional performance with all types of electrode.
The 200 CLS offers stable arc welding with cellulose electrodes in all positions as well as light weight (only 16 kg) and compact dimensions for easy carrying.
The exceptional dynamic response of this generator, independent adjustment of the Hot-Start, Arc-Force, and Anti Sticking functions from 0 to 500% of welding current and the considerable voltage available allow you to weld with large diameter rutile, basic metal and stainless steel electrodes. Particular care has been taken to ensure excellent welding results with cellulose electrodes and with special electrodes for aluminium and cast iron.
Standard arc dynamics for welding with the most common electrodes, and special arc dynamics for welding with cellulose electrodes can be selected from the front panel. Further special settings can be made from the set-up menu.
|
|
|
|
|
|
Pi 200 and Pi 250 are for quality welding operations in TIG AC/DC and MMA. You have never seen such a variety of readily accessible facilities for TIG weld-ing: increased programming, simple operation and user-friendly design, as well as inverter technology combined with innovative operation and communi-cation possibilities.
Mono-phase and three-phase
A high-performance mono-phase or three-phase Pi machine is always available and perfect for a wide range of TIG and MMA welding operations. Both the Pi 200 and the Pi 250 are available in three ersions, all of which have easy-to-use control panels:
Pi DC for MMA welding with simple TIG LIFTIG®.
Pi DC HP - TIG with pulse and Synergy Plus™ as standard features.
Three optional pulses:
Pi offers three optional pulse versions: traditional manual pulse, quick pulse, and Synergy Plus™ for DC welding which automatically adjusts all overarching pulse para-meters. Another advantage of Synergy Plus™ is that the traditional sound in pulse welding has been replac-ed by a sound that does not cause stress. Pi 200 HP and Pi 200 AC/DC, the two mono-phase machines, feature PFC (Power Factor Correction), a function that makes it possible to weld with up to 200 A if only 16 A mains fuses are available.
Controlled cleaning zone:
All Pi AC/DC machines - including the mono-phase version - are fitted with the D.O.C.® system,Miga-tronic's revolutionary dynamic oxide control. In
welding aluminium, D.O.C.® ensures a controlled cleaning zone along the weld, increases the welding speed by up to 30% and reduces the consumption of energy and tungsten electrodes correspondingly.
|
|
MATRIX 250 HF
MATRIX 400 HF
Based on the very latest IGBT inverter technology, TIG power sources with high frequency arc striking of the MATRIX series are equipped with an innovative digital panel for the complete control of all the welding parameters.
The excellent technical characteristics of these welding machines, coupled with the feature of digital control, allow high quality TIG welding, suitable for the toughest industrial applications and maintenance.
These highly advanced technology power sources are robust and user friendly: MATRIX HF’s, DC output only, enable TIG welding of mild and stainless steel, copper and its alloy.
MATRIX series power sources also offer excellent performance also in MMA welding with the most difficult basic and cellulosic electrodes.
|
|
MINI GL 155:
Light and handy
Robust design
Perfect for the application on site
High-frequency ignition
High service life of the TIG electrode due to contact-free ignition
MINI GL 175/245:
Light and handy
Robust design
Perfect for the application on site
High-frequency ignition
High service life of the TIG electrode due to contact-free ignition
Digital weld current display
Adjustment of the required weld current
Increased adjustment possibilities
- Down slope adjustment depending on the situation
- Connection of a remote control
|
|
The latest generation of welding equipment can be programmed with specific process preferences of your individual choice or for the actual welding processes. Based on a solid state power source, it weighs just 1/80 of the 70 year old ancestors but has more power. Our different plasma cutting equipment enables you to quickly and accurately cut all types of metals.
|
|
K2619-1 Precision TIG 275 208/230/460/1/60
With NEW patented Micro-Start II™ Technology and our New and Improved AC Auto Balance® on board, the Precision TIG® 275 delivers unrivaled starting and welding at low amperages and improved AC aluminum welding performance. New features, simple controls, innovative accessory storage, and attractive and consistent welds – it all adds up. Whatever the TIG welding application – fabrication, aerospace, production, motorsports, or vocational education – choose the Precision TIG® 275 for outstanding features and precise arc performance.
|
|
Navigator
Mobile TIG and MMA inverter
The Navigator is a range of robust and mobile universal welding machines for TIG and MMA welding operations.
All Navigator TIG machines are available with a trolley and an integrated cooling unit and are
equipped with energy-saving standby functions.
In TIG welding, the Navigator can switch between HF or LIFTIG® ignition. The power module keeps the arc stable during the welding process, thereby enabling the use of the Navigator in environments
where electromagnetic noise is critical.
|
|
BZ2
IT innovation in TIG welding by Full Digital Control
* Accurate output control
* Fine arc start
* Concentrated and stable arc
* Enhanced memory and communication function
* Simple operation by jog dial and touch panel
* Light weight and space saving
|
|
AC/DC TIG WELDER
Featuring “Composite TIG Welding” for best results with aluminium welds.
A next generation AC/DC TIG Welder for metals of all types.
200GP4, 300GP4, 500GP4, 300GF
|
|
| ... products without technical information |
| |
Application:
Presure Vessels and Specialty Seam Welds
Task:
Design a system multi-purpose to weld presure vessels with wire feed and linear seam welding all in one automatic system
Solution:
Weldlogic AWS-150 Computer Controlled Power Supply and PWL-24-48 Precision Welding Lathe with dual spindles for holding the presure vessel halves in the tooling and motorized the torch in a linear direction for seam welding .
|
|
TIG-Welding Torch ABITIG® 20 (liquid-cooled)
For welding alloyed steels, aluminium, magnesium, copper and their alloys, grey cast iron, bronzes, nickel, silver, titanium, lead and unalloyed steels.
Arguments speaking for themselves:
- Ergonomic handle
- Modular switching and control functions integrated in the handle
- Light and flexible cable assemblies with modular machine-side connectors
- Consumables compatible to the international standard
|
|
