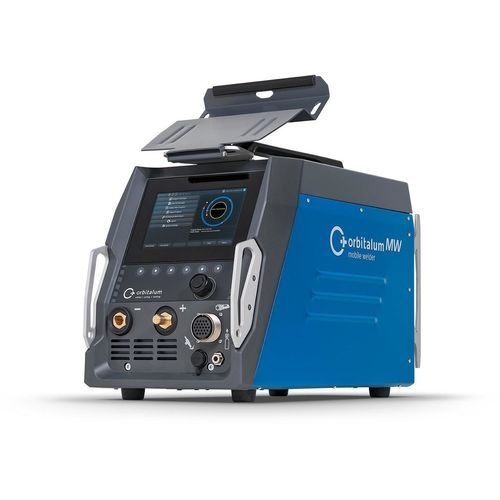

TIG welder Mobile Welder

orbitalportableautomated

Overview
Portable orbital welding power source designed for automated orbital welding and manual TIG work on site. Combines orbital functionality with a manual TIG power mode in one compact, transportable unit.

Key facts

• Commercial name: Mobile Welder
• Machine weight: 15 kg with carry handle and shoulder strap
• Typical setup and familiarization time: approx. 4 hours
• 2-in-1 functionality: orbital welding and manual TIG (no separate power source required)

Intuitive and quick to learn

• Touchscreen interface plus multifunction rotary control for simple operation
• Create and save welding programs with auto-programming for repeatable workflows
• All essential orbital welding functions and parameter storage included

Fast results

• Ready for production in ~4 hours
• Accelerated workflows using saved programs and parameters
• One device for manual and orbital tasks reduces setup time on site

Quality you can rely on

• Clean, continuous weld seams with smooth, pore-free surfaces
• Reproducible results thanks to stored welding programs and parameters

For on the go

• Lightweight, compact design for plant installation and jobsite work
• Carry handle and shoulder strap for easy transport
• Machine weight: 15 kg

Manual TIG welding

• Manual TIG torch can be used for tacking and welding in confined areas
• Flexible switching between manual and orbital welding without additional power source

Upgradeable options

• UPGRADE – Cooling: external cooling unit supports gas- and liquid-cooled welding heads and larger pipe diameters (e.g. up to 275.00 mm when cooled)
• UPGRADE – Software: weld data logging, digital shielding-gas management and enhanced connectivity; control range expandable (example: up to 5–180 A depending on configuration)

Compatible welding heads & packages

• Compatible with Orbitalum weld heads (e.g. ORBIWELD series, Mobile Head, MH, DVR-M)
• Available industry packages (e.g. Food & Beverage package) including weld head, cables and hoses for ready-to-run solutions

Technical specifications

• Pipe outside diameter (base): 3.00 mm – 230.00 mm (expandable with cooling)
• Control range (base): 5 – 140 A
• Duty cycle: 100% at 140 A
• Upgradeable control range with software: up to 5 – 180 A (depending on configuration)
• Setup / familiarization time: approx. 4 hours
• Interface: touchscreen + multifunction rotary control, auto-programming
• Transport: carry handle and shoulder strap included
