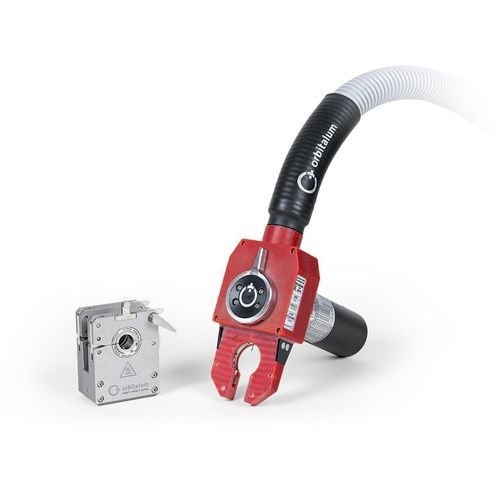

ORBIWELD 17: Compact, actively cooled orbital welding head for precise welds on small pipe diameters.

Key benefits

• Compatibility with market standards
• Precise pipe alignment thanks to removable clamping cassette
• Integrated control panel for power source control

Variants

• OW 17
• OW 17 GC (gas-cooled variant)

Pipe range

• Pipe outer diameter: 3.00 mm – 17.20 mm (0.118 – 0.677 in)

Precise and reliable welding for high-purity applications
The ORBIWELD 17 is designed for high-purity applications such as the semiconductor industry, providing precise and reliable weld seams in confined or cleanroom environments.

Extremely Slim Design

• Space-saving design for confined working environments
• Removable clamping cassette: ideal for inline assembly and alignment of pipes on-site or for prefabrication of modules in the workshop
• Specifically suitable for applications in confined working environments (e.g., semiconductor industry)

Reliable Performance

• Integrated active liquid cooling (OW 17) ensures maximum performance by keeping operating temperature constant and protecting the welding head from overheating
• OW 17 GC with gas cooling as an alternative for lower thermal loads—compact and efficient
• Consistent performance and shorter work cycles during intensive use
• High duty cycle and long service life
• Clamping cassette perfectly fitted; compatibility with standard market cassettes ensured

Simple and Efficient Operation

• Integrated control panel in the handle for direct control of important functions on the welding head
• Direct on-site control saves travel time and effort
• Electrode setting gauge for easy adjustment of the electrode gap
• Pipe center gauge for precise positioning of the pipe joint to be welded

Versatile Applications

• Designed for 1.0 mm (0.039 in) and 1.6 mm (0.063 in) electrodes
• Reliable welding performance even with thicker wall thicknesses
• Ideal for COAX pipe systems, reducing the need for additional welding heads

OW 17 GC – gas-cooled variant

• Reliable gas cooling for consistent weld quality
• Flexible hose package for optimal handling
• Economically attractive alternative without compromising precision
• Highest precision and quality for demanding welding processes

Advantage package for the semiconductor industry
The Laboratory Package is optimally tailored to the needs of the semiconductor industry and is designed to meet the highest demands on weld seam quality, precision, and reliability.

Compatible power sources (examples)

• Mobile Welder
• Mobile Welder OC Plus
• Smart Welder Plus

Caractéristiques / spécifications techniques

• Model name: ORBIWELD 17
• Variants: OW 17 (liquid-cooled), OW 17 GC (gas-cooled)
• Pipe outer diameter: 3.00 mm – 17.20 mm (0.118 – 0.677 in)
• Electrode sizes: 1.0 mm and 1.6 mm
• Cooling: integrated active liquid cooling (OW 17) or gas cooling (OW 17 GC)
• Removable clamping cassette; compatibility with standard market cassettes
• Integrated control panel in handle for direct control
• Electrode setting gauge and pipe center gauge included
• High duty cycle and long service life
• Designed for use in confined and high-purity environments (e.g., semiconductor cleanrooms)
