Gas welding head ORBIWELD 25 GC

orbitalfor tubeshigh-precision

Product overview

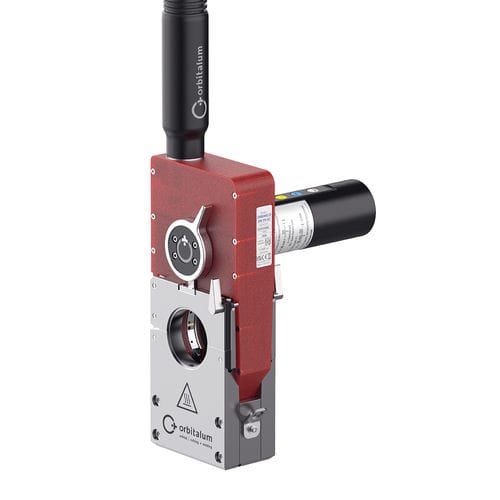

ORBIWELD 25 GC is a compact, gas-cooled orbital weld head designed for precise weld seams in high-purity applications such as the semiconductor industry. It features an ultra-slim design, a removable clamping cassette and an integrated control panel built into the handle for direct on-site control.

Key features

• Ultra-slim, space-saving design suitable for confined working environments.

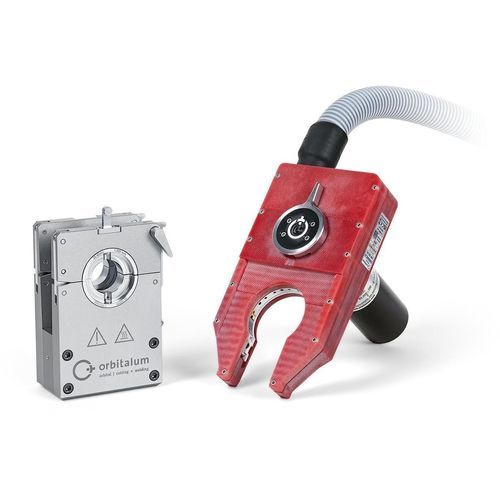

• Removable clamping cassette: ideal for inline assembly, tube alignment on site or prefabrication in the workshop.
• Compatibility with market-standard clamping cassettes.
• Gas-cooled design: compact and efficient alternative for applications with lower thermal loads.
• Consistent welding performance with shorter work cycles and a high duty cycle for long service life.
• Integrated control panel in the handle: direct control of all important weld head functions on-site.
• Designed for electrodes with diameters 2.4 mm (0.094 in) and 1.6 mm (0.063 in).
• Electrode adjustment gauge for easy setting of the electrode gap.
• Tube center gauge for exact positioning of the pipe joint to be welded.

Applications

• Precise orbital welding for high-purity applications, especially in the semiconductor industry.
• Ideal for confined work spaces and inline assembly environments.
• Suitable for prefabrication of modules in workshop environments or on-site welding tasks.

Characteristics / spécifications techniques

• Model: ORBIWELD 25 GC
• Cooling: Gas-cooled orbital weld head
• Pipe outer diameter range: 6.00 mm – 34.00 mm (0.236 – 1.339 in)
• Electrode diameters supported: 2.4 mm (0.094 in) and 1.6 mm (0.063 in)
• Clamping system: Removable clamping cassette, compatible with standard market cassettes
• Integrated control panel: Control panel integrated into handle for direct power source/control interaction
• Features: Electrode adjustment gauge; tube center gauge for exact joint positioning
• Design focus: Ultra-slim, space-saving for confined environments; high duty cycle and long service life
• Target markets: Semiconductor industry and other high-purity applications
