Cut-off saw PS 4.5 Plus

for metalspipecordless

Overview

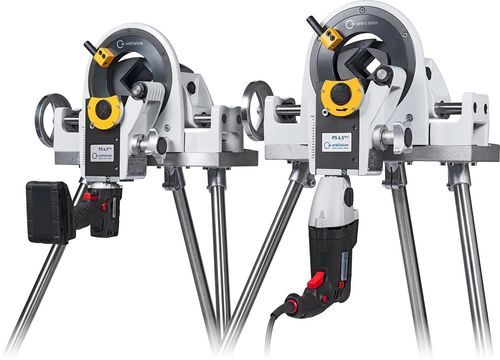

The PS 4.5 Plus pipe saw is a mobile, lightweight machine designed for burr-free, right-angled and deformation-free pipe cutting. It is ready for site use and available in mains and cordless battery versions.

Key advantages

• Variants: PS 4.5 Plus (EU, GB, US) and PS 4.5 Plus Battery (EU, US).
• Covers pipe outside diameters from 6.00 mm to 120.00 mm.
• Wall thickness ranges indicated: 0.60 mm–3.00 mm and for thin-walled pipes 0.3 mm–3.00 mm.
• Compact and low weight for one-person handling.

Compact, mobile, and ready for use anywhere

• Lightweight transport: machine approx. 23.6 kg (electric) or 22 kg (battery).
• Compact dimensions: 480 × 230 × 600 mm.
• Transportable in a hard-shell case; optional removable aluminium stand available.
• Simple one-person operation; ideal for on-site applications.
• Mains connection variants: 230 V (EU), 120 V (US), 110 V (GB); battery version available as cordless alternative.

Precise cut quality

• Proven planetary (orbital) cutting process for precise, burr-free, right-angled cuts.
• Orbitally guided saw blade ensures cold cutting that protects material structure.
• Processes thin-walled pipes and standard pipes within the OD and wall thickness ranges stated.
• Processing of pipe bends from 30.00 mm to 120.00 mm using a second saw blade holder.

Simple and safe operation

• Integrated line laser for marking cut position.
• Feed and sawing in a single operation to save time.
• Deformation-free clamping with reversible, self-centering clamping jaws made of high-quality aluminium alloy.
• Speed control: 30–182 rpm (electric) or 0–118 rpm (battery).
• Electronic overload protection and restart interlock after power failure.
• Low noise level ~78 dB(A) and low vibration < 2.5 m/s².

Low maintenance and durable in use

• Accepts press-fitting saw blade–cutter combinations where applicable.
• Delivered with “Performance” saw blade and GF TOP lubricant.
• Tool key set and lubricant included.

Battery version — full power, even more flexibility
The battery version weighs approx. 22 kg and uses high-performance lithium-ion technology with a brushless motor. AIR COOLED charging reduces charge times. The battery kit typically includes two batteries to allow continuous work while one battery charges. Cordless operation increases site safety by eliminating trailing cables.

Technical specifications

• Model name: PS 4.5 Plus.
• Variants: PS 4.5 Plus (EU, GB, US); PS 4.5 Plus Battery (EU, US).
• Machine weight: PS 4.5 Plus approx. 23.6 kg; PS 4.5 Plus Battery approx. 22 kg.
• Dimensions (approx.): 480 × 230 × 600 mm.
• Pipe outside diameter range: 6.00 mm – 120.00 mm (0.236 – 4.724 in).
• Wall thickness: indicated ranges 0.60 mm – 3.00 mm; thin-walled pipes 0.3 mm – 3.00 mm.
• Speed control: 30–182 rpm (electric); 0–118 rpm (battery).
• Noise level: ≈ 78 dB(A).
• Vibration: < 2.5 m/s².
• Battery drive (battery version): brushless motor, lithium-ion batteries; AIR COOLED charging; typically two batteries included.
• Protection: electronic overload protection and restart interlock after power failure.
• Cutting method: orbital / planetary cutting with orbitally guided saw blade for burr-free, right-angled cuts.
• Included accessories: “Performance” saw blade, GF TOP lubricant, tool key set, lubricant.
