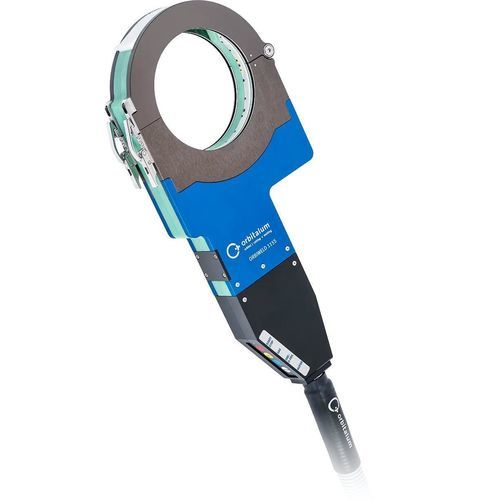

Water-cooled welding head ORBIWELD 115 S

orbitalfor tubesfor narrow grooves

Overview

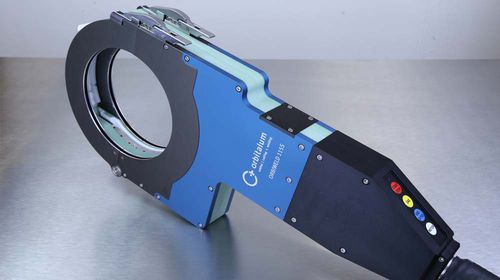

ORBIWELD 115 S is an orbital welding head designed for precise weld seams and reliable continuous operation. Compact and optimized for confined-space applications.

Key benefits

• Extremely narrow design for applications in confined spaces
• High load capacity suitable for continuous use
• Efficient liquid cooling for sustained performance

Design and operation

• Aluminum handle shell with integrated control panel
• No additional remote control required for the power source
• Flip cover allows inspection and readjustment of electrode position when necessary

Perfect for tight spaces

• Narrow profile ideal for short weld lengths and hard-to-reach areas
• Highly flexible hose package (length 7.5 m / 24.6 ft) with strain relief to the power source
• Suitable for confined-space industrial applications

Individually customizable

• Diameter-specific aluminum clamping inserts available separately (narrow and wide versions)
• Tool-free quick-change system for clamping inserts
• Stable clamping locks ensure secure, offset-free clamping and centering of parts to be welded

Performance under continuous load

• Completely liquid-cooled weld head housing enables consistently high performance
• Housing designed for reliable continuous operation

Increased productivity with optional accessories
Optional ORBITWIN switching unit allows alternating operation of two weld heads to reduce setup and idle times and increase overall productivity.

Compatible power sources (examples)

• Mobile Welder OC Plus
• Smart Welder Plus

Technical specifications

• Pipe outside diameter: 20.00 mm – 115.00 mm (0.787 – 4.528 in)
• Operating weight: 9.7 kg
• Hose package length: 7.5 m / 24.6 ft (highly flexible with strain relief)
• Cooling: completely liquid-cooled weld head housing
• Design: extremely narrow design for confined spaces; aluminum handle shell with integrated control panel
• Clamping: diameter-specific aluminum clamping inserts (available separately) with tool-free quick-change system
