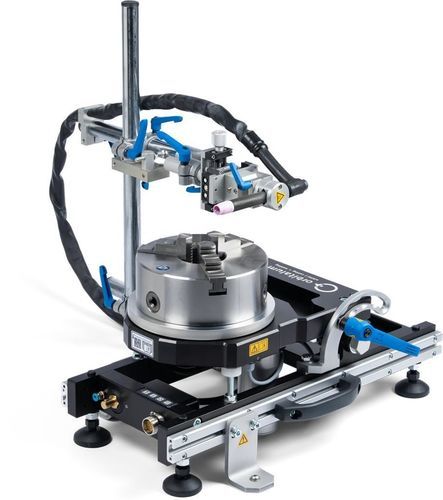

Electric turntable DVR-M

horizontalverticaltilting

Overview
DVR-M welding turntable for precise alignment and repeatable welding quality. Compact and mobile, it supports horizontal and vertical welding positions and is designed to speed up series production through quick setup and repeatable settings.

Key benefits

• Bidirectional welding for flexible operation
• Intuitive operation via integrated control keypad
• Mobile, compact design ideal for on-site use
• Repeatable quality in series production through precise alignment and tool-free adjustments

Main functions

• Maximum flexibility: large hollow-shaft diameter (72 mm) enables purging and clamping of long workpieces; suitable for fittings, flanges and formed parts
• Consistent series quality: precise alignment and tool-free adjustment of the TIG torch reduce setup time and welding errors
• Welding in any position: tilting turntable (0°–90° in 22.5° steps) enables horizontal and vertical welding positions
• Move instead of retooling: sliding torch unit for quick adaptation to different pipe lengths
• Ergonomic control: integrated keypad in the machine frame for direct operation
• Mobile and transport-ready: compact design, compatible with multiple power sources, supplied with a reusable, stackable transport crate

Compatibility

• Compatible with power sources from the Mobile Welder, Smart Welder and Power Welder series

Video
Product demonstration video available on the product page showing operation and key features.

Technical specifications

• Pipe outer diameter: 9.53 mm – 230.00 mm (0.375 – 9.055 in)
• Hollow-shaft diameter: 72 mm (2.835 in)
• Tilt angle (turntable): 0°–90° in 22.5° increments
• Integrated control keypad in machine frame
• Tool-free adjustment of TIG torch
• Sliding torch unit for different pipe lengths
• Compact design and reusable, stackable transport crate suitable for forklift or pallet truck
