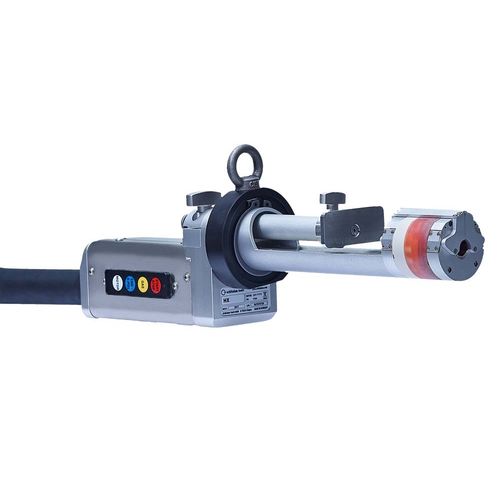

Orbital welding head HX 25P

for tubesclosed

Time savings and cost reduction: Welding times under 30 seconds per tube joint Up to 250 welds per shift and head Parallel operation of multiple heads by one operator possible 50% less preparation time compared to manual welding Highest welding quality for heat exchanger construction: Perfect welds without offsets, gaps, or burrs – even in tight tube bundles Reduced reject rate from up to 4% to under 0.7% Clean penetration – no discoloration, usually no post-processing required Welding of pre-assembled bends – even in difficult positions and orientations Compact design for maximum accessibility: Ideal for compact heat exchangers thanks to minimal space requirements Slim design allows for tube spacing: HX 12P: < 40 mm HX 25P: < 60 mm HX 16P: specifically for tight tube fields in finned heat exchangers Integrated connections for power, gas, and cooling water Easy operation: Automatic welding head recognition with ORBIMAT power sources Tool-free, pneumatic clamping with a single button press enables quick and precise repositioning of the welding head Intuitive operation directly on the welding head Even trained personnel achieve professional welding quality
