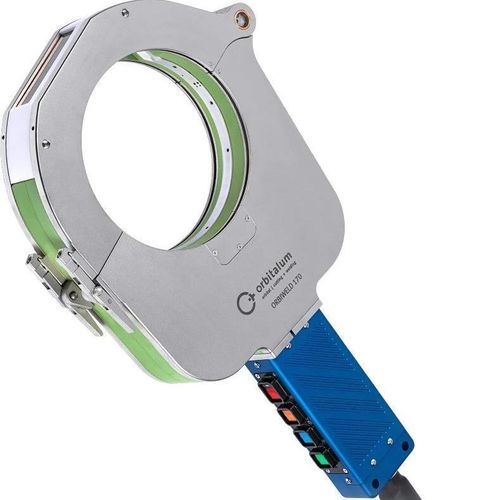

ORBIWELD 170 orbital welding head for pipe welding with high thermal load capacity, designed for precise welds on large-diameter pipes. Closed-head design with gas routing and efficient double-sided cooling for continuous industrial use.

Key features

• Handles pipe outer diameters from 50.00 mm to 170.00 mm
• High thermal load capacity for applications with high welding currents
• Double-sided cooling for effective heat dissipation and extended service life
• Closed design with gas routing for permanent shielding gas coverage
• Robust clamping latches and quick-change clamping insert system
• Viewing window on the welding head for process observation
• Integrated control panel in the aluminum handle for on-site operation

Perfect for large pipe dimensions

• Adapted to demanding applications with large diameters and increased wall thicknesses
• Flexible quick-change system and durable clamping inserts allow adaptation to different pipe sizes
• Suitable for industries with growing requirements such as pharmaceuticals, chemicals, food processing and aerospace

Maximum productivity

• Reliable performance under extreme operating conditions, including high welding currents
• Double-sided cooling supports continuous operation and high throughput
• Permanent gas coverage ensures consistent weld quality along the entire seam

Built for the shop floor. Designed for control.

• Very low heat-tint weld seams reduce post-weld pipe rework
• High-quality, robust housing and handle components designed for intensive use
• Viewing window enables direct monitoring of the welding process

Simple and safe operation

• Integrated control panel in the aluminum handle provides direct access to key functions at the welding head
• On-site control saves setup time and reduces movement between stations
• Robust clamping latches ensure secure fixing and alignment of pipes to prevent misalignment

Optional accessories
Optional ORBITWIN switching unit enables alternating operation of two weld heads to reduce setup and idle times and increase productivity.

Technical specifications

• Model: ORBIWELD 170
• Brand: Orbitalum
• Pipe outer diameter: 50.00 mm – 170.00 mm (1.969 – 6.693 in)
• Operating weight: 18.9 kg (41.7 lbs)
• High thermal load capacity for demanding applications
• Double-sided cooling for efficient heat dissipation
• Closed design with gas routing for permanent shielding gas coverage
• Robust clamping latches and quick-change system for clamping inserts
• Viewing window on the welding head for process monitoring
• Integrated control panel in the aluminum handle for on-site operation
