Smooth & quiet turbocharged 4-cylinder John Deere PowerTech™ diesel engine delivers exceptional reliability, power, and torque.
Patented vertical-lift boom with cushioned boom cylinders provides exceptional load stability, lift-height, and reach.
Purpose-built for rigorous tasks on steep slopes, sand, and muddy terrain.
Unsurpassed stability, breakout, bucket capacity, tractive effort, and travel speed for best-in-class productivity.
Quick-Tatch™ hitch accommodates a wide variety of Worksite Pro™ attachments.
|
|
|
|
|
|
Easy to use Travel and Loader PPC Joysticks
Low effort Proportional Pressure Control (PPC) joysticks operate travel and loader operations. Easy to use PPC controls help operators of all skill levels work precisely and efficiently all day long - with minimum effort and reduced operator fatigue. The right joystick controls the arm and bucket while the left controls the transmission.
Maximum Performance and Precise Control with Komatsu Hydraulics
Komatsu's smooth and precise hydraulic system lets the operator feel the performance of the machine. The Komatsu built system is designed for both single and simultaneous movements which achieves excellent control in positioning the bucket.
Standard Universal Attachment Quick Coupler
A universal quick coupler enables common attachments to be changed quickly and with minimal effort. Auxiliary hydraulics with flat faced connectors are standard. Most competitors' attachments can be utilized on Komatsu's compact track loaders.
Fully Hydrostatic Drive System
The Closed-center Load Sensing System (CLSS) ensures proportionality, precision and smoothness in all movements with two-speed travel. The system features a bi-directional variable flow piston pump coupled with two axial piston motors and incorporates Komatsu's patented Automatic Power Control (APC) allowing the hydraulic system to work at peak efficiency without stalling engine.
|
|
|
|
|
|
UNIQUE RUBBER TRACK UNDERCARRIAGE DELIVERS LOW GROUND PRESSURE SO YOU CAN WORK ON SENSITIVE SURFACE AND IN SOFT UNDERFOOT CONDITIONS
SPACIOUS,DELUXE SEALED CAB FOR YOUR OPTION
AN AIR RIDE SEAT KEEP YOU CONFORTABLE
WIDE RANGE OF OPERATING CAPACITIES AND ATTACHMENTS
80--100 DEUTZ ENGINE AND STRONG PERFORMANCE
TWO SPEED OPTION IS AVAILABLE FOR HIGHER TRAVEL SPEEDS
JOYSTICK WITH SHUTTLE VALVE CAN MAKE YOU DRIVE IT WITH SINGLE HAND
General Dimensions TS80
A-Height to top of ROPS: 2025mm
B-Ground clearance: 200mm
C-Max.lift height, at hinge pin: 2920mm
E-Length of undercarriage: 1938mm
F-Machine length, less bucket: 2676mm
G-Machine length, with bucket: 3385mm
H-Machine width: 1850mm
Track Specifications
I-Track width: 320mm
D-Length of track on ground: 1500mm
Machine Weight:
Weight,less bucket: 4000kg
Ground pressure: 37.9KPa
Ground contact area: 0.96u
Diesel Engine
Model:TS80 DEUTZ D226B-4G
Displacement: 4liter
Gross hoesepower2500rpm: 56kw
Torque(peak): 275Nm
Operating Specifications:
Tipping Load: 2400kg
Operating capacity:
SAE J818 rating, 35% tip lead 840kg
SAE J818 rating,50% tip load 1200kg
Travel speed:
Low 0--8km/h
High 0--16km/h
Control pattern(joystick): Hydraulic Control
Auxiliary Hydraulic Pump
Flow, maximum: 75Lpm
Pressure: 16MPa
|
|
Track Loader
As the next generation of Mustang loaders, the track loaders carry on a strong tradition. With the addition of the MTL312, MTL316, MTL320 and MTL325 track loaders, Mustang has a complete offering to handle any job. Track loaders have become a new favorite on muddy, off-the-road job sites because of their ability to keep ground pressure to a minimum while moving dirt with the same force as a wheeled loader. Mustang's models are comfortable to operate and reliable to own. They are sure to make headlines among Mustang dealers and customers.
|
|
|
|
|
|

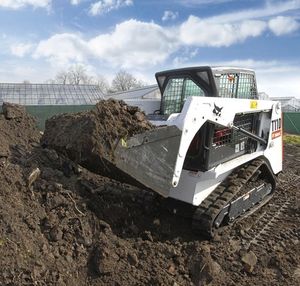

Bobcat compact tracked loaders are the result of half a century's leadership in compact equipment and several years of evolution of the tracked loader concept. They are rugged, manœuverable and offer optimal power-to-weight ratio for working in the most demanding environments.
Bobcat tracked loaders offer more in terms of increased productivity and versatility thanks to a program of constant improvement. Have a look at the high performance undercarriage and the exclusive C-pattern rubber track. These machines designed for durability offer a smoother ride over rough terrain.
Even in the most extreme weather and soil conditions - from rain, mud and hard slopes to tender turf and hot conditions - no other piece of equipment can help you to do your job better, faster and smarter. Take advantage of the SmartFAN™ cooling system and optional high flow hydraulics.
Change attachments while sitting comfortably thanks to the Bob-Tach™ mounting system.
Operators deserve a safe, comfortable and quiet operating space ensured by the failsafe system monitoring, the Deluxe instrumentation and the Selectable Joystick Control (SJC).
Bobcat tracked loaders are backed up with service, parts and financing programs to keep them operational with minimum downtime.
Looking for more information about our wide range of Bobcat compact track loaders? Surf through the next webpages.
|
|
Looks can be deceiving. So can names. Take Ditch Witch mini skid steers, for example. In stature, the SK350, SK500, and SK650 are relatively small. But everywhere else-power, performance, and versatility-they are absolutely huge.
SK350
The platform SK350 mini skid steer features a dual hydrostatic ground drive that gives it the same capabilities of larger machines.
SK500
The original Ditch Witch mini skid steer, the SK500 has the greatest dump height, dump angle, and hinge pin height in its class.
SK650
The biggest of the bunch, the SK650 mini skid steer has superior power and other best-in-class features.
|
|
|
Known for maneuverability and controllability, John Deere dozers deliver productivity, uptime and low daily operating costs. Ranging in size from 15,000 lbs. (6,818 kg) to 73,985 lbs. (33,560 kg) and 70 hp (52 kW) to 324 hp (242 kW), these ideally balanced dozers can accomplish everything from spreading and finishing to cut-and-fill work to simply moving massive amounts of material. The 20-plus models in John Deeres product line include dual-path hydrostatic transmissions, state-of-the-art controls and numerous blade choices.
|
|
|
We build the most complete line of track loaders in the construction equipment industry. Matching Cat track loaders to specific applications is easy with several different configurations of track loaders built to serve customers worldwide.
|
|
* High-powered, 4-cylinder, liquid-cooled and emission-certified diesel engines, which deliver up to 97 hp for exceptional performance. Models CTL55, CTL75 and CTL85 are turbo-charged
* Two-speed drive system utilizes high-torque, radial-piston motors with planetary final drives, to match the application and speed of operations
* SAHR (spring-applied, hydraulic release) multi-disc wet brakes respond quickly, to hold the loader on any grade
* Exceptional hydraulic power, for dependable digging, especially in tough conditions
* Hydraulic self-leveling lift action, to keep loads balanced whenever lift arm is raised
|
|
|
|
|
|
Crawler Skid Steer Loaders : CK35-1
The Komatsu CK25-1 and CK35-1 crawler skid steer loaders with vertical lift deliver the best of both worlds. They combine the compactness and manoeuvrability of the wheeled versions, with the exceptional weight distribution and traction of tracks. Moreover, the unique loader arm design improves performance in terms of lifting capacity and reach, making the machine perfect for operations like material handling.
Stability
Exceptional stability and traction force in all weather conditions and soil types.
Speed
Two speeds: one for maximum drawbar pull, the second for fast motion.
Performance
The unique loader arm design gives these machines greater maximum operating loads, handiness and safety.
Versatility
The optional Super Flow system enables the best use of any kind of attachment, widening the range of uses of the machines.
Comfort
A spacious operator environment, ergonomic controls and 360 visibility guarantee exceptional operator comfort.
Customization
The CK25-1 and CK35-1 offer several possibilities for customisation to get a 'made-to-measure' machine whatever your requirements.
|
|
Optimize your power and performance on rough terrain; soft, sandy surfaces; and wet, muddy conditions with the Bobcat compact track loader. Based on the design of Bobcat Company's popular skid-steer loaders, the compact track loader delivers the same high level of reliability, durability, ease of maintenance and dealer service and support, but with improved traction, flotation and riding comfort.
A tracked undercarriage gives Bobcat compact track loaders several advantages over skid-steer loaders equipped with tires only or over-the-tire tracks. Improved traction over mud, sand or other loose materials, for example, makes it easy to push heavier loads without getting stuck; while a smooth, lighter ride over all terrains eliminates downtime (no tires means no flats), minimizes soil disturbance and reduces the need for work site reclamation after the job is complete.
|
|
Machine weight [kg] 2,300
Loading capacity [m3] 0.4
Backet width [mm] 1,850
Length [mm] 3,750
Height [mm] 1,210
Width [mm] 1,850
Engine Kubota
Model V2203
Output/RPM [kw/HP/@RPM] 33.8/46.8/2,800
Displacement [cc] 2,197
Stage1 speed [km/h] 6.0
Stage2 speed [km/h] 8.0
Transmission H.S.T
Ground pressure unloaded [kg/m2] 0.15
|
|
LC200
Hydrostatic loader
Hydrostatic tracked shovel from 155 KW/210 CV
Weight: 20 ton
Ability Bucket: 2,6 m3
Independent and oscillating undercarriages with hydraulic blocking
Characteristics
* Power: 155 Kw/210 Cv
* Dimensions (Lun x Lar x Stop): 6440 x 2408 x 3200 milimeter
* Ability Bucket: 2,6m3
* Height max of drainage: 3100 milimeter
* Distance of drainage to 45: 1210 milimeter
* Weight: 20 ton
Accessories at call
* Conditioned air
* Dispositive cold start (electrical worker)
* Ripper to parallelogramma 3 teeth/5 positions
* Coupling express
* Bucket for light materials
* Bucket 4 x 1
* Hook of posterior towing
* Ice-skates from 560 milimeter
|
|
| ... products without technical information |
| |
... see all the products in the category
Loaders
|

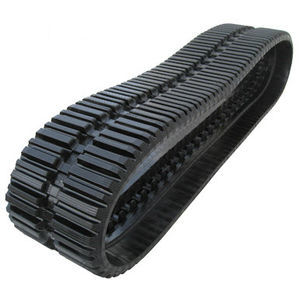

NextGen TDF Series Track Loader Rubber Tracks
Introducing the next chapter in rubber track manufacturing:
Technology Design Formulation (TDF) (Patent Pending)
PROPRIETARY RUBBER COMPOUND FORMULA
The amount of rubber is not the only important feature of a rubber track. Weight alone is meaningless without quality. McLarens proprietary rubber compound formula extends track service life by as much as 50%.
|
|
|
|
|
|
PROTRAC Over-the-Tire Tracks for Skid Steer Loaders
TURN YOUR SKID STEER INTO A TRACK LOADER FOR JUST A FRACTION OF THE COST.
PROTRAC is a self-cleaning skid steer track system, which provides flotation, traction, tire protection, and stability to your skid steer loader (US Pat. 6,464,309/ 6,478,389).
Protrac over-the-tire track system by McLaren Industries is the ultimate solution for your skid-steer loader. Think of it as a stop-loss program for your skid steer.
In a perfect world your skid steer would have perfect traction. In the real world, your skid steers wheels are often left spinning. The result? As much as 50 percent lost productivity.
In sloppy conditions your skid steer can get so bogged down that another piece of equipment is required to pull it free.
Now you have two pieces of equipment tied up and no production going on. Can you afford that kind of loss?
Protrac over-the-tire track systems from McLaren Industries stop the loss. With Protrac, your skid steer has the right combination of flotation and traction in the worst conditions and keeps on working. In the rain. In the mud. In dirt, sand and snow. On steep slopes, loose rock and wet turf.
With Protrac, your skid steer works in conditions and performs tasks that would otherwise require a track loader or a small bulldozer. And because Protrac lowers your machines center of gravity, you get improved stability along with the added traction.
|
|
|
|
