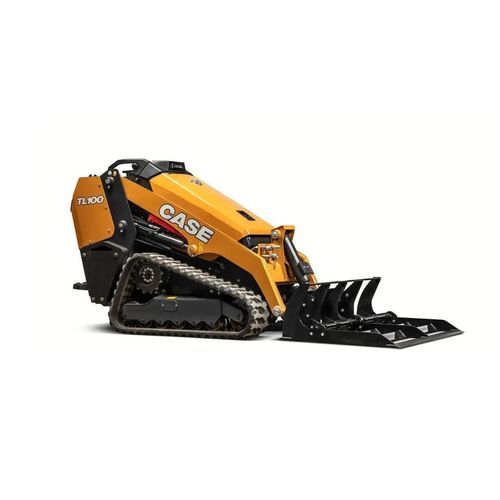

Electric compact track loader TL100

battery-poweredelectro-hydrauliccombustion engine

Overview
The CASE TL100 mini track loader is a compact ride-behind work machine designed for landscaping, construction and property maintenance. It is available with a narrow 36 in. track for improved access or a wide 42 in. track for enhanced stability. The machine has a rated operating capacity of 1,000 lb and supports 40+ attachments via Common Industry Interface (CII) couplers, standard auxiliary hydraulics and an optional 14-pin electrical connector. Pilot joystick controls provide smooth, precise operation.

TL100EV (Electric) - Overview
The TL100EV electric variant is powered by a 102V battery with an onboard charger for zero-emission, low-noise operation suitable for indoor demonstrations and noise-sensitive sites. It retains a 1,000 lb rated operating capacity, offers the super-compact 36 in. narrow track, radial linkage loader arm for improved digging performance and durability, and a 7 ft 2 in hinge pin height to clear most dumpsters and trailers. Electro-hydraulic joystick controls and a thumbwheel allow user adjustment of auxiliary hydraulics.

Quick specifications (high level)

• Horsepower: 24 hp | 18.0 kW
• Wide track rated operating capacity (@35% of tipping load): 1,102 lb | 500 kg

Walkaround
Review the TL100 walkaround to inspect features and technologies that enhance productivity, serviceability and operator accessibility.

Standard equipment

• Operator environment: Hydraulic pilot joystick control; loader and ground drive control lockout; cushioned operator platform; operator presence sensor
• Engine: Engine tip-over shut-off; glow plug starting aid; locking fuel cap; electric fuel pump; lockable hood compartment
• Drivetrain: Dual hydrostatic drive motors; 5-roller undercarriage; narrow rubber track belt
• Hydraulics: 3-spool loader control valve; 1x dual-acting auxiliary hydraulics; proportional auxiliary hydraulic control on joystick with detent; 1-way or 2-way auxiliary hydraulic selector valve; loader arm float
• Telematics: MyCASEConstruction Telematics - includes hardware and 7-year data subscription
• Loader: Radial lift geometry; CII mechanical attachment coupler; loader lift arm support strut; 2x additional counterweight
• Electrical: 12V power socket; front and rear LED work lights

Optional equipment

• Drivetrain: Wide rubber track belt
• Hydraulics: Case drain attachment connection; bio-hydraulic oil and lubricants
• Loader: 36 in. dirt bucket; 42 in. dirt bucket; bolt-on bucket teeth; bolt-on bucket cutting edge; 6x additional counterweights
• Electrical: 14-pin electrical auxiliary connection

Warranty

• 2-Year / 2,000-Hour Base Warranty
• Full Machine Limited Warranty

Specifications / Technical data

• Model family: TL100
• Rated operating capacity: 1,000 lb (approx.)
• Attachments: 40+ compatible via CII coupler and auxiliary hydraulics
• Track options: Narrow track 36 in.; Wide track 42 in.
• Horsepower: 24 hp | 18.0 kW
• Wide track rated operating capacity (@35% tipping load): 1,102 lb | 500 kg
• TL100EV battery capacity (electric variant): 21.2 kWh; operates on 102V battery with onboard charger
• Operating weight (TL100EV): Narrow Track 3,886 lb | 1,862 kg; Wide Track 4,133 lb | 1,875 kg
• Hinge pin height: 7 ft 2 in (clears most dumpsters and trailers)
• Loader linkage: Radial lift geometry (improved digging performance)
• Controls: Pilot joystick control; user-adjustable electro-hydraulic joystick (EV variant) with thumbwheel auxiliary control
• Hydraulics: 3-spool loader valve; dual-acting auxiliary hydraulics; proportional control with detent; 1-way/2-way selector; loader arm float
• Drivetrain: Dual hydrostatic drive motors; 5-roller undercarriage
• Electrical: 12V power socket; front/rear LED work lights; optional 14-pin electrical auxiliary connection
• Telematics: MyCASEConstruction Telematics hardware included with 7-year data subscription
• Operator features: Cushioned operator platform; operator presence sensor; loader and ground drive control lockout
