Builtrite offers 5 different back of cab/back of trailer mounted cranes for a wide variety of applications including scrap pick-up, trash pick-up, handling pipe, cable, jersey barriers and other construction materials. These cranes are designed for every day, heavy duty use. We also offer a wide variety of grapples for handling a wide variety of materials. We customize our product to suit our customers' needs.
|
|
Link-Belt
HC-238H II
150-ton (136.08 mt)
Lattice Boom Truck Crane
- 50’ – 260’
(15.24 – 79.25 m)
tube boom
- Maximum boom & jib
combination: 230’ + 75’
(70.10 + 22.86 m)
- 308’ (93.88 m) maximum
tip height
- 270’ (82.30 m) maximum
360° working radius
- Maximum luffing attachment length:
Luffing boom – 165’ (50.29 m);
Luffing jib – 150’ (45.72 m);
Fixed jib – 30’ (9.14 m)
- 348’ (106.16 m) maximum luffing attachment working height
- 240’ (73.15 m) maximum working 360° radius
- Height - 12’ 6” (3.81 m); width – 11’ 0” (3.35 m); length – 34’ 7.25” (10.55 m)
- 23’ 6” (7.16 m) wheelbase
- 85,334 lbs (38 706 kg) travel weight
- Upper engine: 200 hp (148.4 kW)
- Lower engine: 430 hp (321 kW)
- Outrigger spread: 22’ 8” (6.91 m)
- Outrigger base: 19’ 10” (6.05 m)
- 35,913 lbs (16 290 kg) maximum winch line pull
- 557 fpm (169.77 mpm) maximum winch line speed
|
|
|

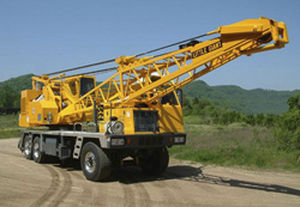

Manitowoc offers three lattice-boom truck cranes with capabilities ranging from 132 tonnes (91 tons US) to 272 tonnes (300 tons US).
|
|
Link-Belt HTT-8675 II
75-ton (70.00 mt)
Truck Terrain Crane
BASIC SPECIFICATIONS:
- 41-127 ft (12.5-38.7m) four section boom
- 38 ft - 64 ft (11.6 %u2013 19.5m) two piece offsettable fly
- Two 16 ft (4.9m) boom extension plus 64 ft (19.5m) two-piece offsettable fly [Total attachment length is 96 ft (29.3m)]
- 230 ft (70.2m) maximum tip height
- Height: 11 ft 9in (3.6m)
- Width: 8 ft 6 in (2.6m)
- Length: 48 ft 7 in (14.8m)
- 56.0 mph (90.2km/hr) travel speed
- 23 ft 10 in (7.26m) wheel base
- 445/65R22.5 front and rear tires
- Caterpillar C13 12.5L 445 hp (331.8kW) diesel engine
- ZF AS-Tronic automated 12-speed transmission
- 24 ft - 0 in (7.32m) outrigger spread, 20 ft %u2013 6 in (6.25m) outrigger base
- 16,800 lbs (7 656.6kg) maximum winch line pull
- 460 fpm (140.2m/min) maximum winch line speed
|
|
|
|
|
|

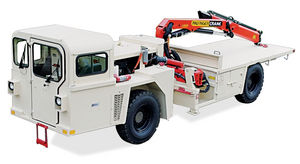

We at RDH Mining Equipment are proud to feature the RUV-20-CT Crane Truck as part of our underground utility vehicle line. This rugged and economical workhorse is engineered to meet demanding mine requirements because it is built using a proven carrier design. Whether it is for maintenance, service or production operations; this machine is up for the task at hand.
The carrier design features central operator location and thus providing superior bi-directional visibility and operator safety. The rugged welded steel frame is designed to keep the overall profile and center of gravity of the machine to a minimum. This provides excellent weight distribution and superior stability.
This low profile design allows the driveline to remain relatively horizontal within the frame and thus extending its life span. Furthermore, the driveshafts are bigger than most comparable machines and thus further increasing the selection of engines and drive components. The articulation joint is widely spaced and thus reduces loading on bearings and provides easy access to hoses, wires and the driveshaft.
|
|
|
Quick set-up is a feature of Grove TMs along with long reach, high capacity booms and highway speed travel capabilities. A front outrigger is standard for 360° operation. Grove truck cranes are popular choices with their extensive list of standard features. This range includes the new GSK55, which merges an all-terrain upperworks with a specially-designed truck chassis that acts as a trailer.
|
|
|
National Crane offers 11 models of stand-up control telescoping cranes with capacities ranging from 8 tons to 33 tons. Controls are located on both the left and right side of the crane facilitating ease of operation on any job site.
|
|
|
With 11.1 metres the PK 4501 Performance offers the biggest hydraulic outreach in the 4-metre-tonne class. Thanks to its low dead weight and its operating versatility the PK 4501 Performance is the ideal crane for your small truck. Its optimal lifting moment – dead weight ratio ensures maximum payload utilisation. Its stability is also impressive: The new hexagonal profile on the boom system increases its rigidity.
|
|
|
Grove ATs combine fast highway speeds with excellent off-road performance and very powerful lifting capabilities. All wheel multiple mode steering provides unrivaled job site mobility and the exclusive MEGATRAK™ suspension system, standard on GMK models, enhances driveability and traction both on and off-road.
|
|
| ... products without technical information |
| |
|
|
|
|
Block Loading Grabs – with Adjustable Height AKZ-H unigrip / AKZ-N unigrip / AKZ-S unigrip
This has the same design and characteristics like the AKZ-unigrip but comes with adjustable height for differing pack heights. This universal type of grab is suitable for the transport of building materials of all types and sizes. By the adjustable height and the large opening width it can be used for all building materials on pallets and without pallets.
A choice of various heights.
The vertical height adjustment bar is equiped with 4 drillings which are situated on different height levels, each shifted by 90°.
The different levels are for the following heights:
level 1 (turning 0°) 1.100 mm
level 2 (turning 90°) 1.280 mm
level 3 (turning 180°) 1.470 mm
level 4 (turning 270°) 1.650 mm
Height Adjustment with a choice of fixed or floating position.
Now even more simple handling of the height adjustment - just move one lever.
Higher pressure – finely adjustable, for example to grip material which is sensitive against pressure.
Low overall height of equipment.
Standard Specifications:
Hydraulically and smoothly operable and works in parallel.
Robust gear rack balance for the absolute synchronous running of the hydraulic cylinders.
Large low-maintenance polyamide sliding guides with 5-year guarantee.
Automatic pressure control. Carrying capacity of height-adjustable versions in retracted position will be increased as per positive working automatic pressure control up to the respective figure indicated in brackets.
Manually adjustable pressure-reducing valve.
Oil pressure gauge.
4 hanging eyes for cables or straps/belts.
Light-weight construction in high-tensile steel.
|
|
