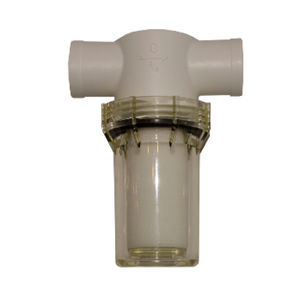

Vacuum filters, series FVI
Compatible with pneumatic vacuum generators (venturis) or electric vacuum pumps.
|
|
|
This range of filters has been specifically designed to operate in conditions of almost absolute vacuum. Each filter is individually tested in order to verify its vacuum sealing capacity and the surface treatments applied are capable of ensuring their optimum condition through time. The filter cartridges are interchangeable with those usually used in this field. The filter screen being made of treated paper with filtering capacity of approx. 5 microns. This is sufficient to guarantee the protection of the vacuum generating pumps under normal working conditions. The filter cartridges need to be replaced when they are found to be either clogged or damaged, their replacement being facilitated by the filter closure system. In addition to the shown filter types, on request we also produce filters having special dimensions, with non-standard inlet and outlet caps, or with filter cartridges made of various materials, to meet special requirements.
|
|
|
Headline Vacuum Pump Exhaust filter housings are available in two materials:- Aluminium and Stainless Steel. All housings, other than Model 420, provide a captured outlet for the ducting away of the aerosol-free exhaust if required. The choice between Aluminium and Stainless Steel will depend upon the chemical composition of the exhaust. If the temperature can exceed 120°C, or if corrosive chemicals are present, stainless steel should be used. All housings are rated at 2 bar pressure at their maximum pressure rating.
|
|
The exhaust from oil sealed vacuum pumps is laden with a fine stable oil aerosol. This pollutant must be removed or serious health and environmental damage may be caused.
Headline vacuum pump exhaust filter housings and coalescing elements completely remove oil aerosols from the vacuum pump exhaust. Available in aluminium and stainless steel, the housings are suitable for flow rates up to 765 Nmþ/hr and give complete security, low back pressure and running costs, and exceptional service life.
|
|
|
Headline Vacuum Pump Exhaust filter housings are available in two materials:- Aluminium and Stainless Steel. All housings, other than Model 420, provide a captured outlet for the ducting away of the aerosol-free exhaust if required. The choice between Aluminium and Stainless Steel will depend upon the chemical composition of the exhaust. If the temperature can exceed 120°C, or if corrosive chemicals are present, stainless steel should be used. All housings are rated at 2 bar pressure at their maximum pressure rating.
|
|
Vacuum pumps are used in a variety of applications from manufacturing processes to medical devices. In general, a vacuum pump provides high quality, reliable performance and is a low maintenance piece of equipment. Vacuum pumps convert mechanical energy into pneumatic energy by evacuating the air contained within a system. They use the same pumping mechanism as air compressors except that the unit is installed so that the air is drawn from a closed volume and Exhausted to the atmosphere.
In a compressed air system the compressor inlet is usually at atmospheric pressure, whereas in a vacuum system, the outlet is at atmospheric pressure.
|
|
|
|
