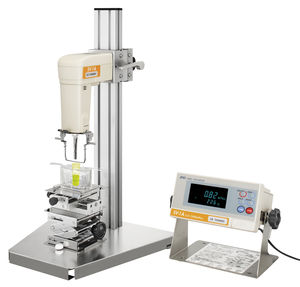

The new Sine-wave Vibro Viscometer, the SV-A Series, is a solution to the excessive use of expensive sample fluids during viscosity measurements. This new viscometer can perform viscosity measurements with sample liquid as small as 2ml (SV-1A).
The SV-A Series incorporates the tuning-fork vibration method. Unlike a rotational viscometer, which requires several different rotors to cover a wide range of measurements, the tuning-fork vibration viscometer is capable of using the same, fixed sensor plates to perform continuous measurements from very low to high viscosity [SV-1A: 0.3~1000mPa•s (cP), SV-10A: 0.3~10000mPa•s (cP), SV-100A: 1000~100000mPa•s (cP)].
The SV-A Series has a temperature sensor (0 ~ 160˚C) right next to the viscosity sensor plates: it is widely known that viscosity is temperature dependent (−2 ~ −10%/˚C) and this feature enables users to easily monitor the relationship between viscosity and temperature. In addition, the SV-A Series also comes standard with the Windows Communication Tools, WinCT-Viscosity that receives viscosity and temperature data from the SV-A Series and creates a graph on a PC in real time. Consequently, changes in viscosity and temperature over time as well as the correlation between viscosity and temperature can be observed visually.
Furthermore, the SV-A Series features a super-fast measurement speed (the initial viscosity coefficient is indicated just 15 seconds after starting the measurement), very high accuracy (repeatability is only 1% of the reading), and a simplified calibration function (a one-key operation that utilizes purified water), etc.
Please see the Users Handbook for the SV Series for further details.
|
|
|
|
|
|
SVM 3000 Stabinger Viscometer
SVM 3000 measures the viscosity and density of oils and fuels according to ASTM D7042. The Stabinger measuring principle with Peltier thermostat enables an incomparably wide viscosity and temperature range with a single system. SVM 3000 is quick, compact and energy-saving, versatile in use, with only small amounts of sample and solvents required. This makes it the most efficient high-precision viscometer on the market.
Time is money
* Viscosity and density in one measurement
* Up to 30 samples per hour
* Automatic filling and cleaning with Xsample sample changers
* Automatic data processing with Visiolab software
Accuracy means quality
* Proven quality in ASTM ring tests
* Results equivalent to ISO 3104 / ASTM D445
* High-precision thermostat with stability of 0.005 °C
* The software manages calibrating constants - to prevent user errors
Economical with resources
* from 2.5 mL sample volume (from 1 mL without density measurement)
* from 2.5 mL solvent required
* only 75 W maximum power consumption
* Needs only 0.25 m² space
* No thermostatting bath required
Flexible and universal
* Measuring temperature can be changed in minutes
* You can quickly set up your SVM 3000 at another location
* Independent of gravity and vibrations
* SVM 3000 also works without a PC
|
|
|
|
|
|
AMVn Automated Micro Viscometer
AMVn measures the rolling time of a ball through transparent and opaque liquids according to the rolling ball principle. Measurement is possible with as little as 150 µL sample volume. Results are given as relative, dynamic or kinematic viscosity. You can also use the quick and easy analysis options of the Rheoplus software to determine the intrinsic viscosity, K value or molar mass of a polymer solution. AMVn is compact and economical, and saves you space in the lab.
Economical
* from 150 µL sample
* Space-saving, modular system
* Rapid and precise Peltier thermostat
* Combine with a sample changer and density meter for maximum efficiency
Quality
* High precision and comparability of the measurement results
* Closed system - no sample/air contact
* Variable measurement angle for zero viscosity calculation
* Highest resistance to aggressive solvents
Comfort
* Built-in Peltier thermostat (5 - 135 °C)
* Powerful software for recording and analyzing data
* Factory-calibrated measuring systems
|
|
|
|
|
|
The AVSPro automatic sampler is a fully automated measuring instrument for determining the viscosity of Newtonian fluids with capillary viscometers.
In spite of the high sample throughput, the AVSPro provides maximum accuracy and reproducibility and even allows unsupervised 24-hour operation.
The AVSPro automatic sampler works with the capillary method, which is the most precise method for determining the viscosity of Newtonian liquids in terms of physical chemistry. The great versatility offered by viscometers with optical and TC sensing systems opens up an extremely wide range of applications. This includes measurements of clear liquids as well as opaque petroleum products.
The main feature of the automatic unit is the three-axis positioning mechanism of the sample dosing system. The new X-Y-Z positioning mechanism allows parallel operation of up to eight viscometers in two thermostatic baths, which can be set at two different measurement temperatures.
Because of its large throughput capacity and its functional reliability, which it has demonstrated in the course of continuous practical operations, the AVSPro has proven itself to be an indispensable instrument for day-today utilization, particularly in the petroleum and plastics industries.
|
|
The viscosity of Newtonian fluids can be most precisely determined using capillary viscometers. This method of measurement, measures the time taken for a defined quantity of fluid to flow through a capillary with a known diameter and known length. With the industrial production of such precisely calibrated capillary viscometers, we have created the conditions to enable this measuring method to establish itself worldwide as a reliable procedure.
With the development of the first automatic measuring systems, we replaced the stopwatch with automatic registration of the fluid at the start of the 1970’s. Since then, subjective measuring errors have been a thing of the past.
VISCOMETERS AND THEIR RANGE OF USE
Ubbelohde viscometers, normal form
Ubbelohde viscometers, normal form (ASTM)
Ubbelohde viscometers, with additional tube and threads
Ubbelohde viscometers with TC sensors
Micro-Ubbelohde viscometers, viscometers for dilution series
Cannon-Fenske viscometers
Ostwald viscometers
|
|
|
|
|
|
New: For the first time ever, you can use the same device to work with “pressure“ or “suction“. This gives you more flexibility and better adjustment to the liquids to be examined.
The ViscoSystem ® AVS 470 is a measuring system that includes everything you need to take precise and reproducible measurements without a PC. All common types of viscosity calculation are integrated into the device, a small PS2 keyboard is all you need to enter additional data. A serial printer can be used to document your measuring results. Virtually all customary capillary viscometers can be used.
With the ViscoSystem® AVS 370 you are perfectly equipped for all tasks involved in determining viscosity. PC-controlled, the AVS 370 determines the time which the liquid to be examined requires to flow through the measuring distance in the capillary viscometer. Measurement of the flow time of the liquid’s meniscus can be scanned optoelectronically or with TC sensors thus enabling viscosity measurement of clear fluids through to black or fully opaque liquids. If necessary, the system can be extended to form a multiple measuring station with PC-controlled multi-tasking. The WinVisco 370 software enables parallel operation of two fully equipped AVS 370, with a total of eight ViscoPump II modules.
|
|
|
|
|
|
MINIVIS 445 Viscosity Tester
Portable Micro-Viscometer
The MiniVis 445 is the clever combination of a rolling ball viscometer, an advanced density meter, and an automatic filling system: Precise determination of dynamic and kinematic viscosity over a wide temperature range, all in rugged instrument fit for heavy duty environments, yet precise enough for the lab bench.
The use of reflection sensors makes it possible to cover a wider range of applications: even samples as dark as used or heavy-oil can be measured with highest accuracy and repeatability.
Users appreciate the small sample volume and the automatic sample feeding, the measurement cell is easily accessible and eliminates the usual cleaning problems of other viscometers.
Temperature control with the built-in Peltier elements eliminates large water baths and allows for quick determination of viscosity indices.
Features:
* Excellent correlation to ASTM D445 and ISO 3104
* Viscosity range of 0.2 to 2000 mm²/s (mPa.s)
* Viscosity index (ASTM D2270)
* Only 25 mL sample for measurement and cleaning
* Only 3 min. turnaround time for 100 cSt at 40°C
* Fast thermoelectric temperature control (Peltier):
* Wide temperature range: -20 to 110 °C
* Automatic sample introduction
* Cleaning cycles automatically programmed
|
|
|
|
|
|

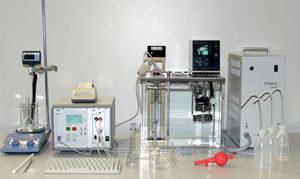

LAUDA Viscosity measuring system PVS - fully automatic and safe
The LAUDA viscosity measuring system is built up from independent and self-contained functional units. These are linked through a central control unit to a conventional PC which controls the entire measurement sequence and evaluates the measured data. The decentralized structure enables all components to operate independently of each other.
The modular structure also permits economic system arrangements which are optimally matched to actual requirements. The configuration can thus be adapted to a larger sample throughput, to new tasks, or to the integration of newly developed modules.
Viscosity evaluation for a great variety of materials like plastics, lubricants, oil and fuel, Enzyme activity, Cellulose.
Flexibility
✜ Individual combination of components to suit the current task
✜ No ballast through unnecessary functions
✜ Readily extended at any time
✜ Always the latest version by integrating newly developed modules
Functionality
✜ Decentralized arrangement
✜ Independent intelligent components through single chip processors
✜ Simple and reliable operation
✜ Long life, all functional components have maximum resistance to chemicals and heat
✜ Automatic filling of up to four independently operating viscometers
✜ Automatic emptying and cleaning with up to two cleaning liquids
✜ Facility for mixed operation with two sample types dissolved in different media
✜ Operations controlled completely by PC
✜ Maximum safety in handling dangerous substances
|
|
|
|
|
|
The New DV-I Prime Viscometer...
...exciting new look, new feel and new features!
Middleboro, MA - Brookfield Engineering introduces the new DV-I Prime Viscometer featuring a totally new look and feel with several exciting new features. The shape, color scheme and keypad layout have all been improved. New “Timed Option” and “Print” buttons have also been added to the easy-to-use keypad.
The new DV-I Prime now includes an RS-232 PC interface for use with optional Wingather Software. Featuring tabular and graphical display, Wingather allows the user to collect, analyze and
record test data within the application or export data files to Excel. There is also a new printer output connection so the operator can send data directly to a printer or file.
The DV-I Prime now features direct access to timed mode, greatly enhancing time test functionality. And, DV-I Prime Viscometers ordered with the temperature sensing option have a new temperature offset capability to ±5°C.
With these dynamic new features plus continuous sensing and data display, the DV-I Prime
Viscometer is best value on the market!
|
|
|
With the modular concept of the Processor viscosity measuring system PVS 1, measuring routines can be performed efficiently, quickly, safely, and with good reproducibility. It enables the automatic determination of kinematic viscosities using standardised capillary viscometers and an optimum adaptation to the requirements of the application with respect to sample throughput and automation. This unique modular system allows individual configuration of measuring systems, from one to four to even eight measuring stands, with automatic cleaning or automatic sample generator.
|
|
High Pressure PVS Rheometer
The PVS Rheometer is an instrument designed for testing complex samples in a benchtop environment under simulated process conditions. Pressures to 1000psi and temperatures to 200°C are possible. Key applications include: oil & gas drilling fluids and volatile chemicals. The updated Rheovision Software is user-friendly with ramp wizard and new graphing capabilities.
The features and benefits are:
Portable site-to-site mobility with 1'x1'x2' instrument
Designed to operate in severe environments with Hastelloy C cup and bobs
Measure sampless from vacuum to high pressure up to 1,000 psi
Measure under temperature conditions: from -40°C to +200°C
Avoids sample boil-off
Quick and easy setup in minutes
Test to API industry standards
|
|
|
|
|
|
The DV-II+Pro Viscometer has a Fresh New Look!
Brookfield Engineering introduces the newly redesigned DV-II+Pro Viscometer. The shape, color scheme and keypad layout have all been updated with a contemporary new look. The DV-II+Pro is Brookfield Engineering’s most popular and versatile viscometer providing continuous viscosity sensing, temperature measurement and data display. The DV-II+Pro features bi-directional communication when used with a dedicated computer. Utilizing Brookfield Rheocalc32 software, the instrument can be totally controlled by the computer. This dynamic capability positions the DV-II+Pro Viscometer as the best value on the market.
The DV-II+Pro offers simplicity of operation for single point viscosity measurement or it can be configured to run automated tests in standalone mode for comprehensive flow curve characterization without the involvement of the operator or computer. When using Brookfield’s Rheocalc32 software, advanced data collection and analysis methods are possible with all instrument functions being controlled through the computer.
|
|
Rapid Visco Analyser (RVA)
The RVA is a rotational viscometer with variable temperature and shear capabilities. Standard methods include starch pasting, degree of cook and weather damage in grain.
|
|
The CAP2000+ now offers lower shear rates, making it suitable for many applications where small sample volume and good temperature control are necessary. And the rugged, easy-to-use design make it perfect in environments where other instruments won't last.
|
|
The TT-100® In-Line Viscometer is designed to provide years of trouble-free service in closed loop systems which require constant monitoring and associated control of product viscosity.
|
|
|
|
|
|
HVU 482 - AUTOMATIC LOW TEMPERATURE KINEMATIC VISCOSIMETER
Automated low temperature viscosity determinations of aviation turbine fuels; high & low temperature lubricant testing
Totally microprocessor controlled, this time-saving instrument features two Ubbelohde-style capillary tubes in a programmable constant-temperature bath, local keypad and display, near-infrared or thermistor timing of efflux flow, and an automatic tube cleaning system. The HVU482 simultaneously tests up to two samples using standard Ubbelohde-style capillary tubes. Near-infrared (NIR) or NTC thermal meniscus detection systems precisely measure flow properties of even the most challenging sample types, while an automatic tube cleaning system incorporates Kalrez(tm) seals to withstand use of aggressive solvents such as toluene or acetone. Complete cycle time, including automated cleaning, is 30 to 40 minutes. Results can be exported immediately or on-demand to a printer or LIMS. Add the powerful Herzog Laboratory Information System (HLIS®) Windows-based software for enhanced operation and data management.
|
|
|
|
|
|
PORTABLE/LABORATORY LIQUID VISCOMETERS VM-300 SERIES
VM-300 is a portable/laboratory Viscometer. It offers highly accurate Dynamic Viscosity measurements in seconds. Resonant technology applied in VM-300 is based on the changes of the sensitive element (resonant tube) in measured liquid. Proven resonance technology performs stabile measurements and can be used for very viscous liquids. Robust design of the VM-300 provides measurements in field conditions.
Viscosity is the most important oil characteristic. Dynamic viscosity can increase or decrease as a result of contamination, fuel dilution, shear thinning, water-oil emulsion presence, etc. Therefore viscosity is extremely important for out-of-spec fuel detection, equipment`s damage prevention and quality determination of large range of products like hydraulic oil and lubricants, transformer oil, etc.
New age of LEMIS process combined meters measure various critical parameters: density, concentration, dynamic viscosity, kinematic viscosity, temperature. Two meters in one device saving cost of installation and maintenance!
|
|
The PIVI is the only portable viscometer as stable in process as in lab.
PRINCIPLE :
The active part of the PIVI is a vibrating rod, held in oscillation by a constant electrical power. The vibration amplitude varies according to the product viscosity where the rod is immersed.
ADVANTAGES :
• Especially developed for field, factory and laboratory viscosity measurement
• Easy-to-clean
• No wear part
• Low maintenance
• Simple, Rugged
• Accurate and RELIABLE
• Instantaneous digital display with 40 measurements memory and RS 232 link.
OPERATING CONDITIONS :
• Sample temperature : 200°C
• Sensor temperature : 100°C
• Sensor water tightness : IP 67
• Sensor material : 316 L stainless steel
• Autonomy : 4 hours
MEASUREMENT RANGE :
• Any range from 0,1-100 mPa.s to 100-100 000 mPa.s
|
|
|
|
|
|
PORTABLE LIQUID IN-TANK VISCOMETERS VM-250 SERIES
Portable Submersible Viscometers VM-250.1 and VM-250.2 are best suited for liquid viscosity and temperature measurements directly in the storage or process tanks (up to 30 meters depth). No labor extensive and errors critical sampling required. Instead, the sensors of VM-250.1 and VM-250.2 are submersed at any required level and record spot viscosity and real temperature at that point directly in the liquid. The operation personal can get in minutes the average viscosity in the tank and its viscosity / temperature / level profile, for example, at every meter. VM-250.3 is best for situation when VM-250.1 and VM-250.2 could not be installed. Just take some hundreds mililitres of sample and give results in seconds! Hundreds of measurements can be stored locally and future transferred to a PC or printer via built-in bluetooth connectivity. Backlighted LCD facilitates nighttime operation.
Viscosity determination directly in the tanks is faster, easier, more precise and cost effective comparing with conventional technique requiring sampling and use of glass capillary viscometers by qualified personal in laboratory. That is why the portable viscometer from LEMIS process have found wide application, first of all in oil industry upstream and downstream operations where control of quality (viscosity) of petroleum products at movement and storage is very critical.
New age of LEMIS process combined meters measure various critical parameters: density, concentration, dynamic viscosity, kinematic viscosity, temperature. Two meters in one device saving cost of installation and maintenance!
|
|
The PIVI is the only portable viscometer as stable in process as in lab.
PRINCIPLE :
The active part of the PIVI is a vibrating rod, held in oscillation by a constant electrical power. The vibration amplitude varies according to the product viscosity where the rod is immersed.
ADVANTAGES :
• Especially developed for field, factory and laboratory viscosity measurement
• Easy-to-clean
• No wear part
• Low maintenance
• Simple, Rugged
• Accurate and RELIABLE
• Instantaneous digital display with 40 measurements memory and RS 232 link.
OPERATING CONDITIONS :
• Sample temperature : 200°C
• Sensor temperature : 100°C
• Sensor water tightness : IP 67
• Sensor material : 316 L stainless steel
• Autonomy : 4 hours
MEASUREMENT RANGE :
• Any range from 0,1-100 mPa.s to 100-100 000 mPa.s
|
|
|
|
|
|

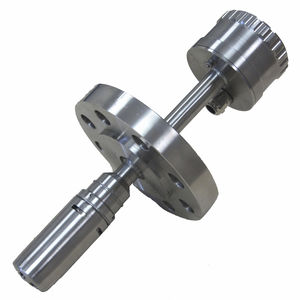

PROCESS LIQUID IN-TANK VISCOMETERS DC-41 SERIES
Process in-tank liquid viscometer DÑ-41 series is designed for long-term continuous liquids' viscosity and temperature measurements in tanks. Device measures highly viscous liquids up to 1200 mPa·s. All measured values are transmitted in external or internal network to a processing system line or personal computer. Standard delivery supposes signals transmitting via RS485 or RS232 channels; another configuration (for example – 4-20 mA) is optional.
Fields of applications: automate systems for petroleum products fiscal transfer; automate systems for monitoring of technological processes in refinery; Food, Dairy & Beverages; heating; fuel delivery systems; other technological needs where continuous viscosity and temperature measuring is required. Large selection of installation types gives flexibility to fit various tanks. According to required configuration are available direct insertion, top, bottom or side mounting. This technique can be employed in open or pressurized tanks and reactors. Large temperature range. The meters have approvals for use in hazardous areas.
New age of LEMIS process combined meters measure various critical parameters: density, concentration, dynamic viscosity, kinematic viscosity, temperature. Two meters in one device saving cost of installation and maintenance!
|
|
On-line viscosity measurement of any fluid at a required reference temperature.
PRINCIPLE :
The fluid is permanently drawn from the process brought at the required constant temperature, its viscosity measured, then re-injected in the main line.
ADVANTAGES :
• No extra installation
• Short response time: 2 to 5 min
• Insignificant maintenance : ½ day / year
• Small size
• Reliable and accurate
• Usual power : mains and pressurized air
• Optional density measurement
• Simple, Rugged
• Exproof approval : ATEX EEx d IIB T4...T6, FM, JIS
OPERATING CONDITIONS :
• Maximal temperature at the cell: 200 °C
• Reference temperature: according to the requirement
• Maximal inlet pressure: 16 bars
• Maximal outlet pressure: 40 to 120 bars according to product viscosity
MEASUREMENT RANGE : (at reference temperature):
• 1 – 100 mPa.s ; 10 – 1000 mPa.s ; 100 – 10 000 mPa.s
|
|
PROCESS LOW FLOW RATE LIQUID IN-LINE VISCOMETERS VC-30 SERIES
In most cases viscometers presented in the market are bulky and require significant flow rates to be effective. VC-30 is a brand new Process Viscometer which able to manage very low flow rates. Based on resonant tube technology, where frequency changes of the sensitive element in measured liquid. VC-30 gives high accurate Dynamic Viscosity values continuously.
Design of the instrument performed in a way that VC-30 has no pressure or flow effect on the measurements. Therefore VC-30 is an obligatory element of process control systems and a best solution for process viscosity!
New age of LEMIS process combined meters measure various critical parameters: density, concentration, dynamic viscosity, kinematic viscosity, temperature. Two meters in one device saving cost of installation and maintenance!
|
|
CIVI PROCESS VISCOMETER FOR INLINE AND ONLINE APPLICATIONS
Simple, Rugged, Reliable, No wear part, Low maintenance, Operates in any position, Easy installation, inline, online (by pass), or on reactor mounting.
GENERAL TECHNICAL DATA :
• Maximum process temperature : 40°C
• Maximum working temperature : 100°C
• Maximum working pressure : 20 bar
• Maximum viscosity range up to 10 000 mPa.s
• Watertightness of the body : IP 67
• Material : 316L SS, Hastelloy...
• Protective coatings : Diamolith, PTFE, enamel...
• Exproof approval : ATEX EEx d IIB T4...T6
APPLICATIONS :
Resins, paints, varnish, Inks, gels, printing & coating...
|
|
MIVI PROCESS VISCOMETER FOR INLINE, ONLINE AND ON REACTOR APPLICATIONS
Simple, Rugged, Reliable, No wear part, Low maintenance, Operates in any position, Easy installation
GENERAL TECHNICAL DATA
• Maximum working temperature up to 200 or 300°C
• Maximum working pressure up to 60 bar or 150 bar (500 bar at request)
• Maximum viscosity range up to 1000 Pascal.second
• Watertightness of the body IP67
• Material 316L SS, Hastelloy, ...
• Protective coatings Diamolith, PTFE, enamel
• Exproof approval ATEX, FM, JIS
• Sanitary design on request
INDUSTRIES :
Petrol, Petrochemical, Chemical, Food & beverage, Cosmetics, Printing & coating
APPLICATIONS :
Polymerization control, Heavy fuel oil control, Inks control...
PRODUCTS :
Oil, Polymers, Fuels, Bitumen, Resins, Gels, Emulsions, Cheese, molasses, Paints, Inks...
|
|
Key Features:
- Table-Top instrument, which has all it's electronics integrated, including the touchscreen user interface and display
- Touchscreen-Dispaly is all that is needed to run the program and to display all relevant data. No need to make manual adjustments.
- Three separate heater bands
- High precision 6-pole synchronous motor to run a user defined constant rpm or per norm 2 rpm
- Data is saved on Compact-Flash Type I, pre-installed in the instrument.
- Build-in serial port to save data externally or to connect to an external PC. Using this port allows the use od optionally available software from Scarabaeus or Eclipse.
- Build in parallel interface for a printer (option)
- Compact and easy service
|
|
Perfect stability, automation and high sample throughput
Herzog's HVU 481 offers truly stand-alone operation with exceptional bath temperature range and stability. It simultaneously tests up to two samples using standard Ubbelohde-style capillary tubes. Near-infrared (NIR) or NTC thermal meniscus detection systems precisely measure flow properties of even the most challenging sample types, while an automatic tube cleaning system incorporates Kalrez(tm) seals to withstand use of aggressive solvents such as toluene or acetone. Complete cycle time, including automated cleaning, is 30 to 40 minutes. Results can be exported immediately or on-demand to a printer or LIMS. Add the powerful Herzog Laboratory Information System (HLIS®) Windows-based software for enhanced operation and data management.
|
|
|
The Relative Viscometer was specifically developed to measure the viscosities of dilute polymer solutions. It provides faster analysis, greater precision and less solvent exposure when compared to conventional glass tubes. The Relative Viscomer is ASTM approved and its closed loop system provides greater operator safety.
|
|
Viscotek's Dual Detector is specifically designed to be added to an existing GPC/SEC system equipped with a concentration or light scattering detector, instantly converting it into a triple detector system.
In triple detection, the patented 4-capillary differential viscometer provides a direct measurement of intrinsic viscosity and allows for the determination of molecular size, conformation and structure.
|
|
|
|
|
|
PROCESS LIQUID IN-LINE VISCOMETERS DC-51 SERIES
LEMIS process DC-51 series of process in-flow viscometers have been carefully engineered for continuous measurement of liquid viscosity to fit large range of applications.
LEMIS process use streamlined resonant tube which is washed on either side by measured liquid. The oscillation period of the vibrating tube and its frequency characteristics depend on behaviour of the measured liquid allowing simultaneous and accurate direct measurement of dynamic viscosity.
Large offer of factory pre-built installation packs allows quick and simple field installation with minimal pipeline disturbance or process downtime. The meter supplied with rigorous factory calibration for viscosity. The DC-51 series proves high accuracy and long-term calibration stability insensitive to mounting position, plant vibration, process flow rate and pressure variations.
New age of LEMIS process combined meters measure various critical parameters: density, concentration, dynamic viscosity, kinematic viscosity, temperature. Two meters in one device saving cost of installation and maintenance!
|
|
|
|
