Vision systems represent the most complex step in image processing. They are tailored to the specific requirements of each application. The turnkey image processing and laser sensor system solutions are suitable for almost all branches of industry, from automotive to pharmaceutical.
Experienced engineers, technicians, and installers will place your vision system in operation and provide training for you, your staff, and your clients. Detailed studies, field trials, plant support and remote maintenance are carried out professionally and conscientiously, thereby ensuring a solid basis for your financial investment decision.
|
|

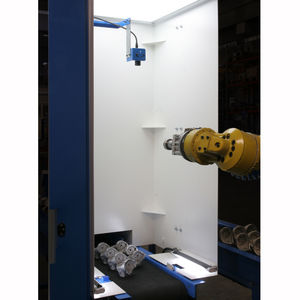

The NV-AX Vision Sensor is Nachi's image processing system that is integrated into the AX controller. Its' high-performance digital image processing technology and image defect tolerant search tool delivers outstanding object recognition.
The NV-AX integrates a high-speed robot with a vision interface. It is easy to operate and program via the robot teach pendant.
Benefits & Features
Integrated Stereo Recognition Function:
- Nachi's proprietary stereo recognition algorithm measures parts positions in 3-D. The robot excels in "bin picking" applications.
High-Performance Image Processing:
- Nachi's high-speed search tool tolerates real world factory conditions and correctly identifies parts.
Simple Teach Pendant Operation:
-The robot and vision integrated AX control offers easy programming in the intuitive WindowsTM environment and provides a single point of operation for both robot and vision.
Applications
- Bin Picking
- Multi-Part Processing
- Measurement
- Product Inspection
|
|
|
|
|
|
W10x-HD deploys cutting edge High Definition video technology and offers superior resolution, contrast and colour reproduction with its built-in 10x auto focus zoom optics. This macro-inspection camera is ideal for visual examination and quality control of assembled boards, electronics components, wires, connectors and similar objects. Large working distance of the W10x optics makes is also suitable for rework, hand soldering or gluing tasks.
By deploying extremely quick auto focus together with Optilia's renowned optics, the time spent on inspecting objects is significantly reduced compared to other video systems. The integrated laser pointer is an excellent guide to locating the areas of interest on the object.
The camera can easily be connected to a Full-HD or HD-ready monitor or TV of relevant size through HD component video outputs. For recording, measuring and archiving of digital images, the system can be linked to a computer through Optilia's FireWire or USB 2.0 Frame Grabbers. Image attributes, such as brightness, contrast, focus, image sharpness, colour and other parameters are automatically set but can be controlled manually by the user through the software.
|
|
LMI FireSync ™ Platform:
The FireSync™ platform provides hardware and software components for rapidly developing custom vision sensors or solutions. Using FireSync components, machine vision engineers can easily develop a simple or complex vision sensor with multiple cameras, light sources and an embedded DSP sensor controller. The FireSync modular design provides engineers with scalable networking, simple cabling, and microsecond synchronization for easy system integration.
Additionally, the FireSync platform is designed to manage system-level complexities, such as video streaming, time stamping, data transmission and event synchronization. With support from LMI's software environment, FireSync Studio and FireSync Factory, engineers are provided with a set of user friendly tools to manage and deploy key timing, synchronization, networking, data collection as well as manufacturing tools to support sensor alignment and calibration.
|
|
IMPACT C-Series Machine Vision Micro-Systems
Helps solve the most challenging machine vision tasks.
- Processor: 2000 MIPS
- Memory: 256 MB RAM, 128 MB Flash
- Size: 203 x 172 x 70 mm
- Weight: 1.589 kg
- Power: 24 VDC / 1.75 A (min)
- Ambient Operating Temperature: 0° to 50° C
|
|
Adept pioneered vision-guidance capabilities for robots more than twenty years ago, and the company remains the performance leader today. Adept vision systems deliver state-of-the-art, geometric-object location and highly-accurate, robot-to-vision calibration. Seamless integration of vision with motion control creates the most robust, scalable and flexible vision-guidance systems available. As a top tier provider of vision and motion control products, Adept makes the use of vision guidance easier and more effective.
Our current vision product line includes vision guidance products and options, standalone vision inspection systems, and PC-based machine vision libraries.
|
|

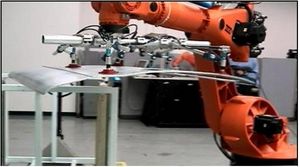

Measuring robots are typically used as programmable plant floor inspection stations. Robotic systems are ideal for replacing multiple check fixtures with a single programmable station, providing major savings in cost and floor space in applications such as automotive assembly.
LMI Technologies developed the SRS 100 3D Sensor specifically for robotic implementation, housed in a rugged, sealed enclosure to withstand the plant floor environment. A specially selected high flexibility cable provides freedom from cable problems.
Our Flexible Robot Measurement applications division works closely with System Integrators & Original Equipment Machine Suppliers to deliver the most effective solutions for their particular sensor vision needs.
|
|
Robot options & additional robot software
Stäubli simplicity adapted to your most specific developments.
VISION
Provides direct access to the InSight® system without programming for the Identification, measurement and localization of parts using vision guidance
|
|
|
|
|
|
NVS9000™ has been specifically designed to dramatically improve the overall system throughput in large couriers and postal distribution centres.NVS9000™ provides the simplest integration, the easiest installation and highest industrial reliability for a very low total cost of ownership.
NVS9000™ provides high quality image detection with extended depth of field on large conveyors up to 1400 mm (55”). Outstanding dynamic performance, up to 4.8 m/s, combined with a new high speed autofocus system, guarantees excellent reading capabilities on high speed conveyors.
NVS9000™ can be easily mechanically integrated thanks to its patented pulsed lighting feature that dramatically reduces the overall system dimensions. The NVS9000™ can be combined with dimensioning and scale systems for revenue recovery applications and it’s ready to be integrated with OCR and Videocoding sw for improved overall reading capability.
A single installer can complete the system mounting and setup in just a few hours due to a unique point of configuration, a simple step by step procedure and the product’s lightweight.
A plug and play concept has been introduced for every replaceable part to reduce the MTTR to a few minutes. Preventive maintenance is also easily improved by the Datalogic WebSentinel™ supervisor sw that provides diagnostics, statistics and email alerts activation anywhere and anytime.
The rugged metal construction, IP65 protection and max operative temperature of 50°C make NVS9000™ the ideal solution even in harsh environments. The simplified mechanics of the new autofocus, a solid state integrated decoder, and an active filter-free backup fan increase the overall system reliability.
|
|
|
|
|
|
FA 45 Vision System EYESIGHT
Flexible and reliable image processing
Flexible, user-friendly and above all reliable vision software combined with a powerful and robust camera system form the “all-in-one” EYESIGHT vision package.
Whether used as a stand-alone unit or integrated in a flexible production line, EYESIGHT ensures the increase in productivity and quality in industrial automation in a wide variety of applications. EYESIGHT is the intelligent eye for your process, spanning all the major manufacturing sectors such as the automotive and food industry, pharmaceutical and cosmetics industry, electronics production and also the packing industry.
· Independent: Intelligence and processing power within the camera
· Perfectly in phase: Smart camera + software
· Easy to use: graphic programming via drag & drop, parameterisation online or offline using sample images
· Excellent cost-performance ratio
The Smart Camera FA 45
With the FA 45 smart camera, we have packed a powerful camera in a casing that will inspire you. It is not just exceptionally compact but is also extremely robust.
Increase your product quality and enhance the productivity of your processes.
· All in One – no PC necessary in running mode
· Quick and simple installation & program generation
· Very small, robust extruded casing
· Integrated lighting or C-Mount version
· Ethernet (LAN) and RS422 interfaces
· Intuitive graphic user interface
The Software
The EYESIGHT vision interpreter is a high-performance tool which enables integrators and ambitious end customers to efficiently and comprehensively solve visual measuring and inspection applications.
|
|
|
The new range of Systems of Industrial Vision is an ideal tool to answer the whole of the industrial applications. This new system of vision compact and modular - constituted of central processing units, of software of Industrial Vision and cameras - is available in 2 versions (400 or 500). Series 400, equipped with the processor VIA C3 1GHz, and Series 500, equipped with the processor Pentium M 1,6 GHz, allow the management from 1 to 4 cameras. These cameras are of type matric or linear, available with several sizes of sensors in versions CCC or CMOS, integrated in compact and robust cases. According to the applications to be solved, systems BOVS 400 and 500 can be equipped with the software of Industrial Vision QualiReader® or NeuroCheck®. Thanks to their connectivity (management of entries left TOR and Ethernet connection), these new systems are integrated easily in the environment of the automated chains of production and make a tool for reliable and powerful quality control of it.
|
|
Matrox 4Sight X
Matrox 4Sight X is a high-performance embedded system for image capture, processing, and display that features powerful Intel® multi-core CPU and GPU technology. A small footprint and rugged construction make Matrox 4Sight X ideal for demanding industrial environments.
Matrox 4Sight M
Matrox 4Sight M is an industrial imaging platform that integrates image capture, processing and display in a compact, rugged enclosure.
Matrox Nexis
Matrox Nexis is a highly integrated imaging acquisition sub-system for machine vision applications. Intended for use with Matrox 4Sight M and Matrox 4Sight X, the Matrox Nexis features two remote camera heads combined with a dual camera control unit (CCU) and frame grabber on a single PC/104-Plus™ card.
|
|
User-friendly:
Simple parameter setting with a PC via USB 2.0
Intuitive user guidance due to pre-configured sensor functions
No image processing know-how required
Reliable:
High-quality receiver modules and optics detect every detail
Insensitive to ambient light and process tolerances
Rapid switching of test jobs
Powerful:
Extensive function library for versatile use
Simultaneous verifi cation of various properties within one job
Up to 3000 inspections / min
Simple installation:
Easy to install industrial housing
Manual focus adjustment for fl exible working distances
Extensive installation accessories
All-in-One:
Compact, rugged design in a single durable housing
Integrated LED illumination, precision optics and processing electronics
Autonomous operation without additional external devices
Optional serial data interface
Industry standard:
8...30 VDC power supply
PNP switching outputs, alarm output
High protection class
Standard M12 connector
|
|
The Epson Visionsystem is fully integrated into the Epson development bench RC+. Beside that it offers outstanding prformance:
- Recognition of overlapping and skewed objects.
- Simple usage through an built in assitant.
- Simple adaptation also to critical lightcircumstances.
|
|

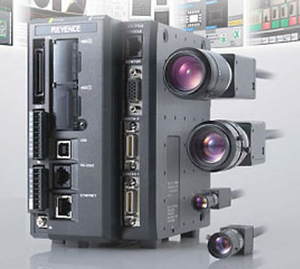

CV-5000 Series
The Industry's Most State-of-the-art Problem Solving Tool is Now Even Better.
Introducing the New CV-5000 Series, Relentless in Its Ability to Solve Challenging Applications.
For full details, download the PRODUCT CATALOG using the CATALOG icon in the Online Support and Services box above
11x high-speed, 5 million-pixel camera
Ultra high-definition image processing is now available
The 11x high-speed camera transfers ultra high-definition, 5 megapixel images (2432 x 2050 pixels) in 61.2 ms (16.3 times/sec). High-speed production lines can now harness the benefits of high-precision image processing. The new CV-5000 Series accepts up to four 5 million-pixel cameras and transfers the images simultaneously, allowing for high-definition inspections of up to 20 million pixels.
|
|
UNIQUE VISION™ – High Speed Camera System
UNIQUE VISION™ ensures 100% verification and quality control of variable data even at the highest production speeds. It can be easily implemented on all printing lines, packaging machines and finishing lines.
Special Features & Benefits
- Modular and flexible structure for customer specific solutions in industrial applications
- Intuitive, easy operation and user friendly interface
- Dedicated software algorithm (OCR, bar code 1D & 2D, shape and label control)
- Easily links to innovative AZ controller technology for full traceability
- Q-control 1D & 2D bar code
- Efficient capturing of material and information flows to secure value chain
- Cost-effective investment that can be upgraded as needed
|
|
Ultimate power - high resolution, network - ready vision system
The F500/F210ETN are network ready, digital vision systems. The optional software VisionComposerNET allows configuration and maintenance of a vision network from a central PC. For documentation or later audits, the system provides tools for logging images and results for later analysis.
Two digital camera ports, high resolution (1K x 1K) with F500ETN
Advanced real time data logging and storage functions
10/100 Base TX Ethernet Port, USB, RS232/422, 33 digital I/O
Optional VisionComposerNET for remote configuration/maintenance
Security tools, audit trail creation in security sensitive environment
|
|
|
|
|
|
Short description :
Advanced Ultra High Speed Imagechecker
The PV310 inherits image processing technology derived from many years of research and hands on experience in the field. Even more importantly, it is designed for the kind of performance demanded by our customers. Utilizing two processor technology, unique high speed processing technology, and easy to use sophisticated functions, we have created a gray scale image processing device that reaches an even higher level of perfection.
Flaw Detection and Surface Inspection
The PV310 combines sophisticated flaw detection functions with an easy to use set up. Scratches, stains, chipped edges and other defects can be easily processed, and by using its thirteen different pre-processing filters, reliability and accuracy of every inspection task is increased.
360 Degree Smart Matching
This function has been improved to inspect workpieces from 0 to 360 degrees. This function detects the presence or absence of a pattern or template. Smart Matching can be used for pick and place robotic applications... where it is required to locate many pieces at any rotation angle in the same field of view. In addition, using its gray scale differential processing function, shape and defect inspections can be carry out simultaneously reducing the inspection and programming time.
|
|
|
National Instruments is a leading machine vision and scientific imaging hardware and software tools provider. From inspecting automotive parts to researching advanced medicines, engineers and scientists use NI vision software and hardware to solve a diverse set of application challenges, faster and at a lower cost.
|
|
|
Omron Vision Sensors - The eyes of your process Our vision products offer varying degrees of intelligence to allow the most suitable solution to be selected for your problem - From "easy vision - teach&go" to high-end, network-ready, high-resolution vision engines.
|
|
|
Panasonic's machine vision and ID products offer the latest in detection and inspection technology. Durable and extremely accurate, our newly released PD60 and PD65 series ID products offer high decoding capabilities complimented with simple setups. Our vision systems such as the PV310 and AX40 series showcase Panasonic's innovative and precise image processing algorithms.
|
|
Designed for 3-shift operation
Highest hygiene due to enclosed design
Industry proven control system
None of the joints or drive mechanisms requires lubrication
Delta robot drives fixed positions and have therefore no moving wires resulting in longer life, easier maintenance, higher speeds and accelerations than conventional robots
The robot upper and forearms as well as end-effectors are made of composite materials and have been optimized for low weight, high strength and long life
The motors are fully enclosed; therefore the Sigpack Delta robots are washable
|
|
|
|
|
|
The World's Smallest Video Cameras.
Medigus offers the world's smallest micro cameras. The current offering includes a new revolutionary disposable CMOS camera, which has an outer diameter of only 1.2mm x 5mm long and is by far the smallest camera in the world. In addition the company offers reusable CCD cameras in two sizes: 3.0mm x 3.0mm and 1.8mm x 1.8mm.
The outer diameter size of the recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity. The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
In addition, Medigus' CCD cameras (3.0mm x 3.0mm and 1.8mm x 1.8mm) offer excellent image quanlity and are suitable for both medical and industrial applications.
|
|
|
|
|
|
FANUC has been developing vision systems since 1994. Based on this proven experience, iRVision is the latest and the most consequent technology to ensure top level robotics vision.
The new R-30iA controller provides an integrated 2D vision system to speed-up the installation of vision applications. This 100% FANUC solution brings a reliable and efficient solution for all complex robotics applications.
2D iRVision is used for reliable part location and orientation, and offers:
- the possible selection of specific areas to be viewed or ignored
- simplified parts location, as no additional tooling is necessary
- various parts setting for the camera
It can easily be extended to 2D and 3D options that will be available within the end of the year.
2D options:
- 2D vision shift to compensate some position gaps between the offline program and the real configuration
- 2D visual line tracking for accurate tracking of parts on a conveyor (extendable to Dual Arm with 2 robot arms)
3D options:
- 3D vision for enhanced accuracy in parts location
- 3D vision bin picking for unmanned handling (e.g.. in machine tending applications)
- 3D compensation
|
|
Power E (4 axis numeric controller)
Cheap solution “All In One” achieved with a coloured touch screen interface for low budget applications. Available with display 6,5”, 8,4”, 10”, 12” and 15” with or without touch screen. Besides axis it can manage “on board” up to 48 digital I/O and 12/12 bit analog inputs all in a very compact electric board. At the moment, it’s the only Tex Computer’s controller with USB interface integrated.
|
|
|
|
|
|
FANUC has been developing vision systems since 1994. Based on this proven experience, iRVision is the latest and the most consequent technology to ensure top level robotics vision.
The new R-30iA controller provides an integrated 2D vision system to speed-up the installation of vision applications. This 100% FANUC solution brings a reliable and efficient solution for all complex robotics applications.
2D iRVision is used for reliable part location and orientation, and offers:
- the possible selection of specific areas to be viewed or ignored
- simplified parts location, as no additional tooling is necessary
- various parts setting for the camera
It can easily be extended to 2D and 3D options that will be available within the end of the year.
2D options:
- 2D vision shift to compensate some position gaps between the offline program and the real configuration
- 2D visual line tracking for accurate tracking of parts on a conveyor (extendable to Dual Arm with 2 robot arms)
3D options:
- 3D vision for enhanced accuracy in parts location
- 3D vision bin picking for unmanned handling (e.g.. in machine tending applications)
- 3D compensation
|
|
PHLOX® introduces this ABSOLUTLY NO SHADOW AND UNIFORM ILLUMINATION system for cylindrical and/or reflective objects.
PHLOX® Tunnel Light is the first product of this kind on the market.
Tunnel Light 157x100:
- Luminance Minimum: 2000 Lux
- Input current: 150 mA
- Colour Temperature: 5650° K
- Expected life: 50 000 hours
Application: Lighting for industrial vision
|
|
