APV Compakva
Instantaneous compact water heaters and district heating units
Innovative technology and design
* The smallest unit of its type
* High thermal efficiency
* Low operating costs
* Low power consumption
* Easy to mount and clean
The series of Compakva units ranges from a simple water heater, consisting of a multi-functional block, a plate heat exchanger and thermostatic valve to more advanced district heating units with additional equipment including two plate heat exchangers, pump, expansion vessel and thermometer.
|
|
|
|
|
|

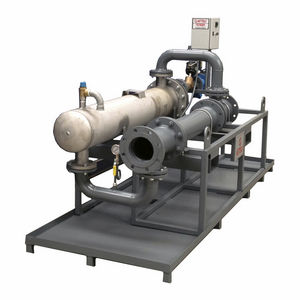

Instantaneous Water Heaters
The Armstrong packaged I.W.H. units are available in several ranges fulfilling a large variety of application demands. The I.W.H. is ideal for hotels, resorts, hospitals, rental apartment/condo buildings, commercial buildings, schools, institutional facilities (prisons), army barracks, sport arenas, nursing homes, shopping centers, and process applications. Whatever your application, Armstrong has the unit and the necessary expertise to address and satisfy your needs. Armstrong I.W.H packaged systems are designed to provide hot water instantaneously - from zero demand to maximum rated output - without the need for hot water storage tanks. The I.W.H. packaged system, an innovative approach to the supply of hot water, was exhaustively tested and proven. The unit comes completely assembled on a common base-plate. The heat exchanger is a plate type offering fast heat transfer and making it ideally suited for applications with rapidly changing demands. The I.W.H. comes equipped with a motorized 3-way control valve and PID (Proportional plus Integral plus Derivative) temperature controller.
Design Features
- Space is at a premium SMALL FOOTPRINT
- Night-time temperature set-back — ENERGY EFFICIENT
- Optional Double-Wall plates NO CROSS-CONTAMINATION
- Instantaneous supply NO SHORTAGE OF HOT WATER
- Reduced risk of Legionella disease NO STORAGE
- Ease of installation JUST PIPE-IN & WIRE
- Simplified maintenance BACK-FLUSH PERIODICALLY
- High temperature limit switch on all models
- Temperature control within ± 4°F (± 2.2°C)
- Control panel UL & CSA Approved
- Building Automation System compatible
- Single source of responsibility and support
|
|
Heater applications
* Fuel oil
* Lube oil
* Fresh water
* Cargo
* Tank outflow
* Tank suction
The GEA Bloksma oil & water heater V-type is a compact heat exchanger for heating heavy fuel oil, lube oil, diesel oil or water by means of steam, thermal oil or hot water.
The thermal calculation is based on the latest heat-transfer technology. This ensures an optimal design of the heater.
|
|
Split solar water heaters HFT-300L HFT-200L
Working principle
This split solar water heating system has solar collectors on roof and water tanks inside the house, and transfers heat energy collected by the collectors into the tank by natural or forced circulation of the working fluid between collector and the tank.
Components:
The system comprises of solar collectors, a water tank, a heat exchanger, a controller and pumps.
|
|
Pressurized solar water heaters (compact)
1. Heat pipes are installed inside the vacuum tubes. Without water flow inside, the tube will not be broken or blocked by scales, which is safer and more reliable.
2. Operate automatically with pressure inside the system, so water is supplied under a pressure with more comfortableness for bathing. Its installation site is free from limitation.
3. This machine is equipped with auto. auxiliary heating system, offering hot water safely even in cloudy or rainy days.
|
|
Compact immersion tube integrated in tanks
HOT WATER TANK
There are three ranges to take advantage of the benefits of compact immersion tubes in a tank: hot water tank, instantaneous hot water generator and thermal fluid heater.
The hydroaccumulator enables peaks to be restricted and ensures the production of sanitary hot water, stable in temperature and flow rate, in spite of variations in requirements, without using a huge amount of power.
USE:
Food industries:
CIP station tanks, production of sanitary hot water and floor cleaning water.
Textile industries:
Production of superheated water.
Market gardening industries:
Greenhouse heating with C02 production
Ranges:
Size of tanks from 1 m3 to 100 m3
Power from 30 kW to 1500 kW
|
|
|
|
|
|
General features:
- Stainless steel sheathed 1500 watt, 120 VAC electric heating element will operate in air. No need for check valve to prevent element failure when not immersed in water. 15 gallons per hour recovery! (40O F temp rise)
- Factory installed ASME temperature and pressure relief valve for added protection
- Ignition protection with safety ground terminals for location in engine and bilge areas.
- Oversized magnesium anode rod provides maximum protection for glass lined tank.
- High density fiber glass insulation easily holds water at desired temperature
- Torrid's super efficient copper heat exchanger converts heat from engine cooling water to hot water supply system. Full ¾" I.P.S. flow to reduce pressure drop. Designed for maximum heat transfer. One more symbol of Torrid® quality.
- Adjustable electric thermostat 120-180 O F. with energy cutoff combination gives super accurate temperature control and an extra measure of safety.
- Durable powder coating and zinc plated jacket ensure superior protection. Optional Stainless steel jacket available.
|
|
| ... products without technical information |
| |
CASTALIA, the condensing absorption chiller with power modulation, (Systema S.p.A. patent-pending), for the production of cooling and hot water, can be used as a heating system in winter and as a cooling system in summer.
The installation of this brand-new product guarantees important energy savings in comparison with the traditional separated systems such as boiler and electric chiller.
CASTALIA is composed by a highly efficient premixed gas burner with modulation combined with an exchanger: the NOX emissions are very low.
There is the possibility to choose the equipment between 8 different models, with a heating capacity from 12.9 kW to 139.2 kW and a thermic performance of 107.4%.
The available cooling capacity range is 12.5 kW - 115 kW with a cooling performance of 103% that can reach 130% if we consider the energy recovery for the production of sanitary hot water.
|
|
|
|
|
|
Aquaciat Power
High-capacity air-cooled chiller for cooling of commercial, industrial or healthcare facilities. May be connected to emitters such as underfloor heating and cooling systems, terminal units (such as fan coil units and water cassettes) or air handling units. Designed as standard for outdoor installation without any special weather protection.
- R-410A refrigerant,
- Compact unit takes up little ground space,
- Fully encased in a housing constructed of coated metal panels that can be detached for outdoor installation,
- Two independent refrigerant circuits,
- Four to six new-generation, high-efficiency scroll compressors,
- Water-cooled brazed-plate heat exchanger,
- Six to eight propeller fans,
- User-friendly CONNECT microprocessor-based controller with many self-regulating functions,
- Total or partial energy recovery.
- Communication with BMS via an RS-485 interface (Modbus/Jbus) as standard.
Four models available
Cooling capacity: 330 to 500 kW
- LD: Without hydraulic system,
- LDC: With hydraulic system, without tank,
- LDH: With complete hydraulic system and tank.
|
|
|
|
|
|
We are glad to inform you that Systema S.p.A. has introduced in its range of products the "RENEWABLE ENERGY PACKAGE".
This complete product is an Absorption refrigerator-thermic System created for the external installation.
Its power supplyies can be:
- gas;
- hot water produced by solar concentrators and collectors;
- fume-steam heat recovery systems;
- fumes and hot water of a cogenerator.
Thanks to a cogenerator, Renewable Energy Package, becomes a CCHP system (combined cooling, heating and power) for the production of hot water, cooling water and electricity.
This preassembled OR ENBLOC package is composed by an Absoprtion Chiller, a cooling tower, a cool and hot water storage, pumps, filters, mixing valves and a control panel for the management of the complete system.
Systema S.p.A. designs, produces and commissions the Renewable Energy Package in its industrial plants.
One of the most important advantages is that our company offers a complete high-tecnology system to be installed outside, according to the particular requirements of the customer.
|
|
|
|
|
|
The new Piovan Digitemp Thermorefrigerators heat and cool the process circuit of injection and blow moulding machines. They integrate both temperature control and free-cooling functions, and provide water to every single circuit at specific temperature (from -5°C to +90°C for every single circuit), pressure and water flow.
Advantages:
Significant reduction of energy consumption
The combination of compressors with digital technology and the electronic expansion valve - installed in all the Digitemp models in their standard version - ensures the greatest energy efficiency. Moreover, the exclusive Piovan solution which does not require an internal re- circulating pump further increases energy savings.
Reduced running costs
Thanks to the possibility to use the free-cooling system included in the standard unit, they can provide water coming from the dry cooler or the evaporation tower.
Ultra-compact design
With a floor dimension of only 0.4 m2 and a height of 108 cm, these models are the most compact units present on the market at the moment.
Realibility and long life
The possibility of power modulation from 10 to 100% allows the compressor to function continuously, thus eliminating the risk of breakdowns and ensuring long duration of the motor.
Maximum flexibility
The Digitemp models represent the ideal solution whenever it is necessary to manage the demands of different temperatures of every single processing machine, with no waste. Available in the single and dual circuit versions, they can be equipped with medium or high pressure pumps, which guarantee adequate water flow and thermal exchanges, in any application.
|
|
CASTALIA, the condensing absorption chiller with power modulation, (Systema S.p.A. patent-pending), for the production of cooling and hot water, can be used as a heating system in winter and as a cooling system in summer.
The installation of this brand-new product guarantees important energy savings in comparison with the traditional separated systems such as boiler and electric chiller.
CASTALIA is composed by a highly efficient premixed gas burner with modulation combined with an exchanger: the NOX emissions are very low.
There is the possibility to choose the equipment between 8 different models, with a heating capacity from 12.9 kW to 139.2 kW and a thermic performance of 107.4%.
The available cooling capacity range is 12.5 kW - 115 kW with a cooling performance of 103% that can reach 130% if we consider the energy recovery for the production of sanitary hot water.
|
|
|
|
|
|
We are glad to inform you that Systema S.p.A. has introduced in its range of products the "RENEWABLE ENERGY PACKAGE".
This complete product is an Absorption refrigerator-thermic System created for the external installation.
Its power supplyies can be:
- gas;
- hot water produced by solar concentrators and collectors;
- fume-steam heat recovery systems;
- fumes and hot water of a cogenerator.
Thanks to a cogenerator, Renewable Energy Package, becomes a CCHP system (combined cooling, heating and power) for the production of hot water, cooling water and electricity.
This preassembled OR ENBLOC package is composed by an Absoprtion Chiller, a cooling tower, a cool and hot water storage, pumps, filters, mixing valves and a control panel for the management of the complete system.
Systema S.p.A. designs, produces and commissions the Renewable Energy Package in its industrial plants.
One of the most important advantages is that our company offers a complete high-tecnology system to be installed outside, according to the particular requirements of the customer.
|
|
| ... products without technical information |
| |
| ... products without technical information |
| |
|
|
|
|
Water cooling system
For every tonne of Aluminium cast some 330 KW of heat is produced. Normally this heat is removed by Water Cooling. With efficient re-use of water with minimal power usage, energy losses and hence costs are reduced with an enhancement in Aluminium product margin.
The Fives Solios cooling water system is designed with this philosophy in mind. We recognise and appreciate the critical nature of the system for the rest of the cast house. Our company has significant in-house expertise and specialist consultants utilising 30 years of cast house experience to enable us to offer a solution that will conform to our client’s enquiry requirements.
Keeping the Energy Balance low - Cost Effective Cooling the Fives Solios Way can be achieved.
We also have the ability to offer design alternatives to our customers employing high quality equipment with proven track records, features include:
The complete Central Process Water Cooling System Package. This includes Design, Supply, Install, Commission and Maintenance.
Close control of Water Temperatures.
Biological Control of Process Water.
Designs for variety of Weather Conditions from Iceland at -35°C to Oman at + 52°C.
Energy Management Control Systems.
N+1 Redundancy for 365 24/7 Continuous operation.
Options of " FREE COOLING " from Sea or River if locally available.
|
|
|
|
