TMI, LLC (Trading & Manufacturing Industries) headquartered in Pittsburgh, Pennsylvania custom fabricates welding screens, portable enclosures, and curtains which are the perfect economical solution to employee safety issues associated with a welding operation.
These products protect workers from harmful U.V. light emitted during arc welding. It will stop welding flash and help with fume containment. Whether your needs are for temporary portable screens, 2-sided, 3-sided, or a 4-sided full enclosure, permanent room dividing curtains, strip panels, a strip door, or a combination of any of these. TMI’s design engineers can assist you in coming up with a solution right for your application and environment
TMI stocks film and strip products. The strip materials in stock include .040", .080", .120", & .160" in 6", 8", 12", 16", 24", & 48" widths. The colors are Amber, Aztec Red, & Dark Green Shade-8.
TMI welding curtain film fabrics come in Aztec Red, Yellow, Charcoal, Dark Green, Blue, & Dark Green Shade-8. The material is .014" in 66" and 74" widths.
|
|
CEPRO® offers a large range of welding light filtration products which all filter harmful welding light.
All CEPRO® products have been approved according to the European EN-1598 standard and are regularly retested and re-certified. Therefore customers are always assured of obtaining a safe product.
The standard establishes requirements with regard to:
Filtration of harmful ultraviolet (UV) and still visible blue light radiation.
UV stability. This feature allows an approved CEPRO® product to offer long term filtration properties.
Flame extinction; if a CEPRO® curtain catches fire, the material will extinguish automatically after the seat of the fire has been extinguished.
CEPRO® supplies transparent welding curtains in three different colours:
CEPRO® Orange-CE, CEPRO® Bronze-CE and Cepro Green-6. These colours provide excellent filters against harmful welding light and also offer protection against irritating (not harmful) welding light. A good view of the work area not only increases the safety but also eliminates feelings of isolation of the welder.
CEPRO® also supplies a Green-9 colour. Separations of this material are opaque and extremely suitable for the shielding of several separate welding work areas without causing any nuisance to other welders.
|
|

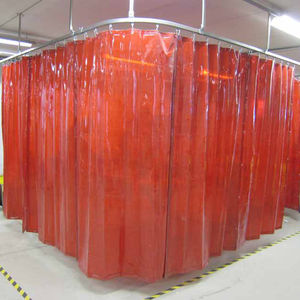

Welding protection curtains with metal hooks on a pipe or sliding hooks in a C-profile
The curtains have reinforced edges all around and strengthened eyelets spaced 21 cm apart on the top edge.
To connect the curtains there are addional fasteners located on the outer edges (left hand and right hand side) spaced approximately 40 cm.
The material is flame resistant. The curtains can be suspended with metal hooks on a pipe or with sliding hooks in a C-profile. A lateral movement of the curtain is possible for both options.
Welding curtains are available in dark green mat, light green, red and transparent. The material has a thickness of 0.4 mm.

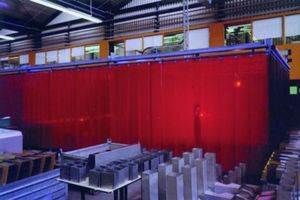

Welding strip curtains (without picture) are available with metal hooks on a pipe or sliding hooks in a C-profile.
Welding protection strips can be supplied for a fixed welding protection strip system or a lateral sliding welding protection strip system.
Strip curtains are available in dark green mat, light green, red and transparent. The material has a thickness of 2 mm.
|
|
| Protective curtains for welding and grinding, welding lamellas, mobile panel screens, booth systems. Here you will find the right solution for your requirements. |
|
|
|
