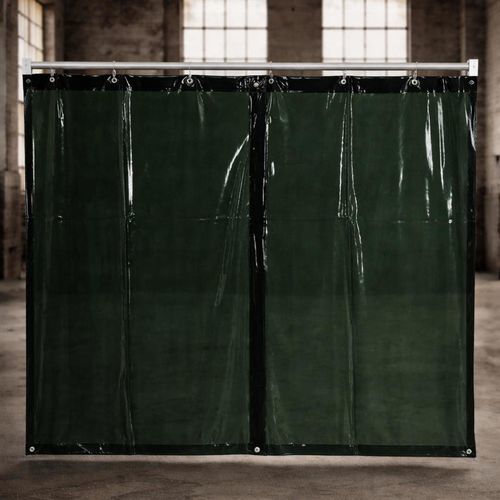

Green welding curtain S7

Product description
Green welding curtain for protection during welding and grinding. Model S7; designed to separate workstations and protect personnel from welding arc light, radiation and spatter.

Key benefits

• Separates individual work and production areas
• Protection against dangerous radiation from welding arcs and spatter
• Visual screening and light dimming
• Material thickness 0.4 mm

Installation and features
KEMPER welding curtains are hemmed all round with reinforced eyelets for secure suspension and reduced tear risk. The curtain can be mounted on pipe rails or C‑profiles and used with eyelets or sliding hooks for lateral movement. Snap fasteners allow adjustment of curtain size.

Variants / available sizes

• 1600 mm
• 1800 mm
• 2000 mm (selected)
• 2200 mm
• 2400 mm
• 2600 mm
• 2800 mm
• 3000 mm
• Custom size priced per m²

Technical data / specifications

• Model: S7 welding protection curtain
• Article no.: 70100302
• Color: green
• Material thickness: 0.4 mm
• Width: 1300 mm
• Height: 2000 mm (configurable)
• Weight: 2 kg
• Edge finish: hemmed all round, tear‑resistant
• Attachment: reinforced eyelets; compatible with sliding hooks; snap fasteners for size adjustment
• Protection: against welding arc light, radiation and spatter
• Standards: tested according to DIN EN ISO 25980
