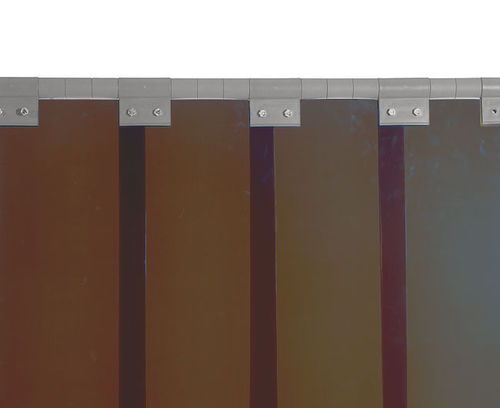

Strip curtain 70 203 032

Short description
Transparent bronze welding protection strip for industrial and workshop environments, sold per metre. Provides protection against welding arc light, UV/IR radiation, spatter and sparks and enables visual separation of welding workstations.

Main benefits

• Separates individual workstations and production areas
• Protects against hazardous welding arc radiation and spatter
• Visual screening and light dimming
• Adjustable protection by choosing overlap
• Movable when mounted on a C-profile

Performance & standards
KEMPER welding protection strips meet DIN EN ISO 25980 and are flame retardant according to DIN 53 438 T2. Strips are supplied cut and punched to the required overlap and can be assembled with folding KEMPER suspension brackets.

Installation & handling

• Configure protection by selecting overlap

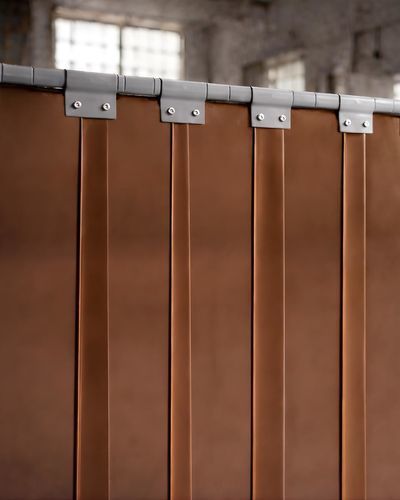

• Strips can be shifted sideways on a C-profile to create passages
• Individual elements can be pushed aside in both directions to form access points
• Installation time reduced when mounted on folding KEMPER suspension brackets

Material & application
Transparent bronze PVC strip designed for welding protection in industrial environments; suitable for arc welding and grinding areas where protection from UV/IR radiation, sparks and visual separation is required.

Technical data (table)
Dimensions (width) in mm: 300
Weight in kg: 1

Technical specifications

• Item No.: 70203032
• Designation: Welding protection strip, bronze
• Brand: KEMPER
• Material/colour: bronze (transparent)
• Sold per: metre
• Available thicknesses: 2 mm (standard), 3 mm
• Width: 300 mm
• Weight (unit shown): 1 kg
• Standards: DIN EN ISO 25980
• Flame retardancy: DIN 53 438 T2
• Cut-to-size and punched to desired overlap; compatible with folding KEMPER suspension brackets and C-profile mounting
• Protection: welding arc radiation, spatter, UV/IR, sparks; visual screening and light dimming
