Sliding strip curtain S9

Product overview

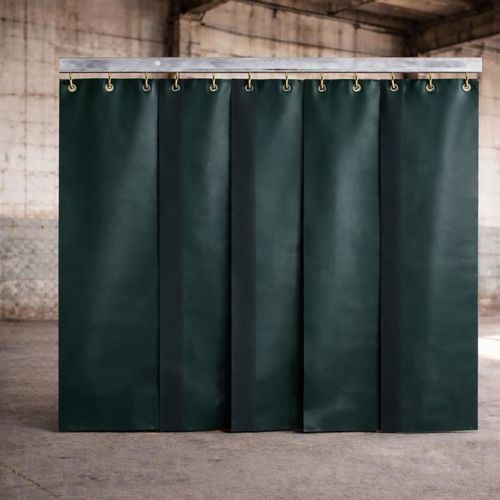

Welding strip curtain S9 for industrial welding and grinding protection. Dark green PVC lamella curtain with 1.0 mm thickness; lamella width 570 mm; standard height 2000 mm (other heights available).

Key benefits

• Separates individual workstations and production areas
• Protects against dangerous radiation from welding arcs and molten spatter
• Provides visual screening and reduces glare
• Light dimming to protect adjacent work zones
• Consistent 1.0 mm lamella thickness for reliable performance

Highlights
KEMPER S9 welding strip curtains deliver certified protection against arc radiation, spatter and welding arcs. They conform to DIN EN ISO 25980 and are flame retardant according to DIN 53 438 T2. Designed for mounting on a tube or a C-profile, they suit industrial shopfloors and welding cells.

Features

• Can be moved aside when mounted with eyelets or sliding hooks
• Reinforced eyelets ensure a robust suspension system
• Compatible with tube or C-profile mounting systems

Available heights / variants

• 1600 mm
• 1800 mm
• 2000 mm (standard)
• 2200 mm
• 2400 mm
• 2600 mm
• 2800 mm

Technical specifications

• Brand: KEMPER
• Model / series: S9
• Item No. (SKU): 70250102
• Colour: Dark green
• Thickness: 1.0 mm
• Width (lamella): 570 mm
• Height (standard): 2000 mm
• Weight: 1 kg
• Standards: DIN EN ISO 25980; flame retardant per DIN 53 438 T2
• Mounting: on tube or C-profile
• Fastening: eyelets or sliding hooks; reinforced eyelets for rugged suspension
