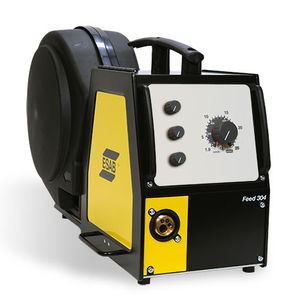

| Smooth wire feed is critical to many welding applications. ESAB meets the need with ready-to-weld feeder packages featuring the latest technology for easy functionality and dependable operation. |
|

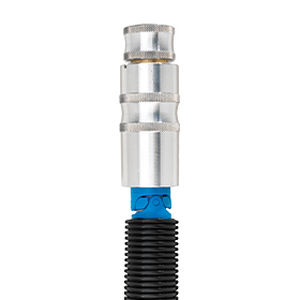

The Wire Booster assists the wire feeding between the pail pack and the wire-feeding unit of a robot welding system or a manual power source.The driving rollers of the Wire Booster are separated from the running motor through a magnetic clutch. The wire is fed by the magnetic clutch, as soon as the main drive of the robot employs force on the wire. Through this functional principle the Wire Booster does not necessarily have to be connected or synchronised with the main drive.Wire feeding problems can now be solved fast and without any unnecessary installation.
For detailed information please visit our homepage. |
|
| ... products without technical information |
| |

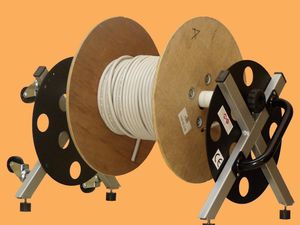

SELF - LIFFTING STANDS
Unwinding stands for sites - carr. capacity 1500 to 5000 kg.dia. Ø600-2800mm |
|
Description:
Feeds cable at variable speeds to match the speed of cable puller.
- Accommodates cable ranging in size up to 3.5' (88.9 mm) in diameter.
- Sets up easily and can be operated by just one person.
- Dual motors drive each wheel for traction on both sides of the cable.
- Comes with pendant and toggle switch. An optional foot switch is available to control feeding.
- Two cable loading methods: top-loading and end-loading. |
|
Winding and Unwinding many Materials, NITTOKU`s original Wire Feeding and Wire Reeling Machines!
Displayed Machine: SVT-02
The feeding mechanism feeds a wire at competent tension depending on the material.
The wire reeling provides layer winding by the new software for layer winding.
New type of NITTOKU`s wire feeding mechanism has tension parameter feedback function! This has made SVT-02 series suitable for material that has the character of strong tension and easy stretching.
Ex. Belt cord, Litz wire, Electric wire etcetera.
Materials :
. Metal Group : Gold, Silver, Copper, Platinum, Tungsten, Stainless, Aluminum, Steel wire, Welding wire, Solder wire, Copper foil, Aluminum foil, etc.
. Resin Group : Fishing line, Belt core, Air tube, Electric line, Resin fiber etc.
. Others : Glass fiber, Fiber yarn, Carbon fibre, Paper, Cloth, Film, Wrap film, Adhesive tape, Nonwovon fabric, Elastic film, Metalic thin film, Hard film, etc.
Form :
. Round wire, Rectangle wire, Ribbon wire, Twisted wires, Clad wire, Sheet, Film etc. |
|

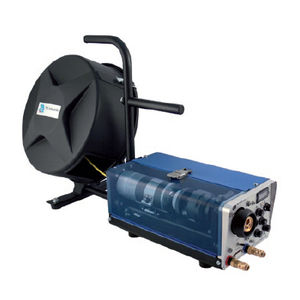

Pre- and post processing equipment such as prefeeding machines (dereeler and puller-type), wire marking / inkjet printing, fully synchronized cable coilers and wire stackers. Full integration with Schleuniger automatic cutting machines and automatic cut & strip machines.
In a production line, tension-free feeding of a cable or wire is important for optimum processing results. Schleuniger offers a vast range of prefeeding machines for various spool (reel) weights and dimensions. |
|

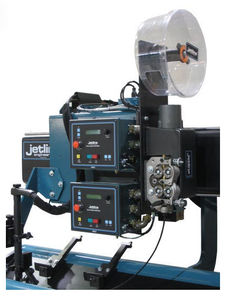

CWF-10B COLD WIRE FEEDERS:
Our most popular model, available with either a two or four roll drive system. The unit is designed for mechanized applications and is supplied complete with a wire guide positioner and control.
CWF-20C PRECISION COLD WIRE FEEDER:
Has all the features of the CWF-10B but utilizes a high accuracy drive motor and control with closed loop feedback to maintain the wire feed speed to within ±0.1% of the rated speed. Four drive rolls and a clear wire spool cover are standard features.

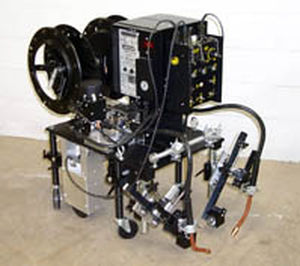

HWP-50D HOT WIRE FEEDER:
The hot wire system is used where high deposition combined with high quality are needed. Used with the GTAW (TIG) or Plasma process, the wire is preheated before it enters the weld pool. The system can be used for the surfacing or the joining of heavy materials in most ferrous alloys, including exotic materials. |
|
K210-2 NA-3S Automatic Wire Feeder
Improve productivity with the NA-3 automatic wire feeder. This system has been specially designed to deposit more weld metal at faster travel speeds which eliminates bottlenecks and cuts costs.
Used for heavy duty fabrication and assembly line production, the NA-3 units feature solid state controls for precise control of welding procedures - even to the most exacting requirements. Trust Lincoln automatic welding systems for worry-free operation! |
|
| ... products without technical information |
| |
Jetline cold wire feeders are primarily used for gas
tungsten arc welding (TIG) and plasma arc welding
(PAW).
They can also be used in other applications
where a controlled feed of wire is required such as
a brazing operation. |
|
The OLFLEX® VFD and VFD-CT cables are now CE and CSA approved, in addition to being UL-listed, making the popular cables ideal for international use.
The semi-conductive material extruded over the cable’s copper forms a spike resistant barrier, eliminating the corona discharge normally resulting from voltage spikes, reflections, and power distortions. Unlike standard power cables, the enhanced VFD power cables are excellent for connecting variable frequency drives to motors, especially in applications that require a voltage rating of 1000 V/2000 V peak.
A 12x minimum bending radius allows the cable to flex and bend in both moderate flexing applications and confined areas. In addition, the cables offer superior oil resistance thanks to its orange PVC outer jacketing.
The OLFLEX® VFD-CT is rated for use in cable trays and features all the benefits of the OLFLEX® VFD. In addition, the cable is flame retardant, UV resistant, and meets NEC and NFPA requirements.
OLFLEX® VFD SLIM is a reduced diameter shielded motor supply cable for variable frequency drives. The materials used are designed to hold up to the non-linear power distortions associated with VFD drives. This cable has a specially blended PVC jacket that is approved for both UL and CSA standards for 600V. |
|
As power cables only
With one control pair resp. quad
With two control pairs
For Indramat® and Siemens® servo motors
|
|
| ... products without technical information |
| |
| ... products without technical information |
| |
VERTICAL RACK FOR COILS AND REELS MAX DIA.700 MM DIAM. ART. SU.
(Special version up to dia.1000mm). |
|
|
|
