Hydrocarbon analyzer KM 2000 CnHm EM
gasORPbenchtop

hydrocarbon analyzer
hydrocarbon analyzer
hydrocarbon analyzer
Add to favorites
Compare this product


Characteristics

Measured entity
hydrocarbon, gas
Measured value
ORP
Configuration
benchtop, modular

Description

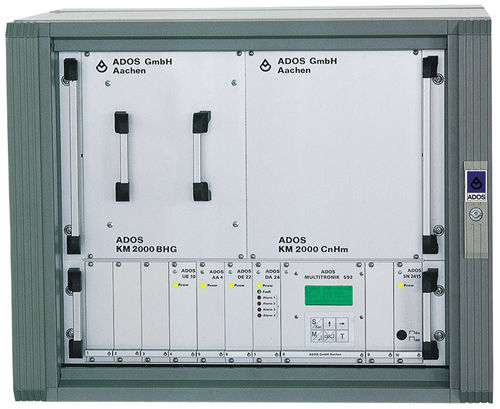

The modular constructed ADOS KM 2000 CnHm EM equipment incorporates a microcontroller-aided measurement device for measuring solvents. All combustible gaseous CnHm compounds can be measured with the exception of chlorinated and sulphur-sublimed hydrocarbons. The thermocouples used for measurements, in conjunction with applying the principle of heat reaction, offer the following advantages: High degree of sensitivity Good accuracy Negligible drift of zero point Over-range signals have no effect Fields of Application Supervision of industrial processes KM 2000 CnHm EM: Measuring the emission of hydrocarbons, according to the German clean-air regulations KM 2000 CnHm: Measuring solvent saturation Measuring the concentration of solvents Concerning room air (ventilation) monitoring A warning is issued at very low concentrations of poisonous gas thus preventing any danger to health. Gas measurement system The sampled gas is drawn in by a pump through a feed pipe (heated if required), to the reaction chamber, via a compensating filter, flow regulator and flow-through meter. The gas is warmed to a constant temperature by means of the heater coil and jacket and finally burned in a solid-matter catalytic converter. The difference in temperature before and after combustion, is used as the measurement signal that is prepared and evaluated by the microcontroller-aided analyser.
