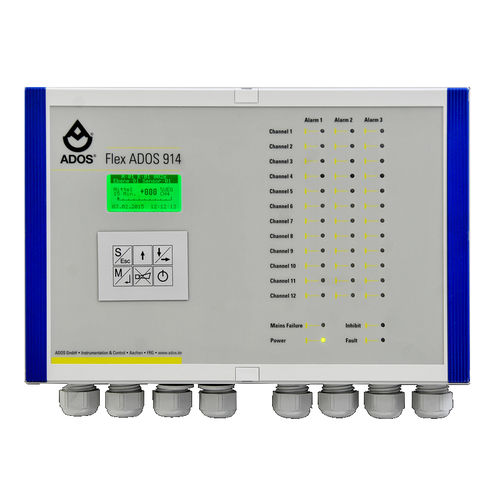

Gas detection system FlexADOS 914

gas detection system
gas detection system
Add to favorites
Compare this product


Characteristics

Type
gas

Description

Suitability The multi-channel gas detector system FlexADOS 914 continuously monitors the ambient air and provides an early warning of harmful, explosive and non-flammable gases and vapours. Together with the GTR 210 gas transmitter family, FlexADOS 914 fulfils EN 50271, achieves safety integrity level SIL1 and can be used for primary explosion protection. Areas of application Explosion protection chemicals industry Paint and varnish manufacturing Liquid gas storage facilities Laboratories Refrigerated warehouses (ammonia monitoring) Refineries Measurement of oxygen concentration Gas-powered boilers Wastewater treatment plants and much more Features Up to 12 analogue 4...20mA sensors are evaluated (GTR 210, LCTR 903, TOX 592) Graphic LCD display to show actual values, mean values and faults in plain text Indicator for operation, malfunction, maintenance, power failure Simple menu-guided setting of the device parameters using 6-part keyboard Three alarm thresholds per sensor, independently adjustable from 10 to 90% of the measuring range Averaging from 1 to 60 minutes possible Maximum of 14 potential-free changeover contacts to control further warning and control facilities Potential-free changeover contact for malfunction, maintenance and power failure As an option: Building control system connection for data transfer (measuring value and state) Plastic wall housing (IP 54) High operating reliability Low power consumption Simple assembly Uninterrupted electricity supply possible
