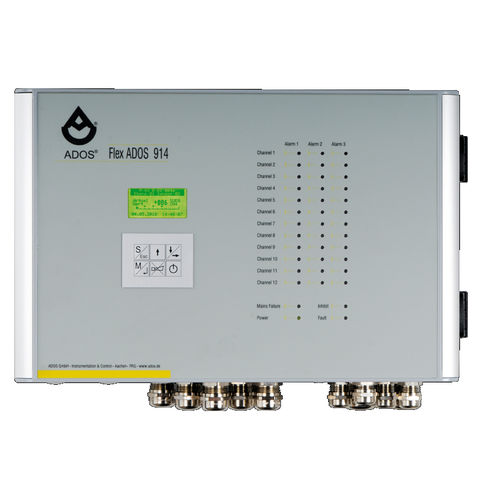

LCD display gas detection control unit FlexADOS 914 MED

multi-channel

The multi-channel gas detector system FlexADOS914 MED continuously monitors the ambient air and provides an early warning of harmful, explosive and non-flammable gases and vapours. The evaluation unit has been equipped with a robust cabinet to resist increased mechanical strains as they may occur in the maritime sector. Moreover, the evaluation unit disposes of the class certificate DNV-GL and fulfills the requirements of the Marine Equipment Directive 2014/90/EU (marking: MED wheel mark). Together with the GTR 210 gas transmitter family, FlexADOS 914 MED achieves safety integrity level SIL1 and can be used for primary explosion protection. Areas of application Explosion protection on ships with LNG drives, LPG drives and LFL drives Explosion protection and interting on LNG, CNG, oil and chemical tankers, Explosion protection in LNG terminals Liquid gas storage facilities Leakage monitoring of refrigerating units Laboratories Refineries Detection of oxygen deficiency and excess oxygen Gas powered boiler systems Wastewater treatment plants Inertisation. and much more Features Up to 12 analogue 4...20mA sensors are evaluated (GTR 210 MED) Graphic LCD display to show content values, mean values and faults in plain text Indicator for operation, malfunction, maintenance, power failure Simple menu-guided setting of the device parameters using 6-part keyboard Three alarm thresholds per sensor, independently adjustable from 10 to 90% of the measuring range Averaging from 1 to 60 minutes possible
