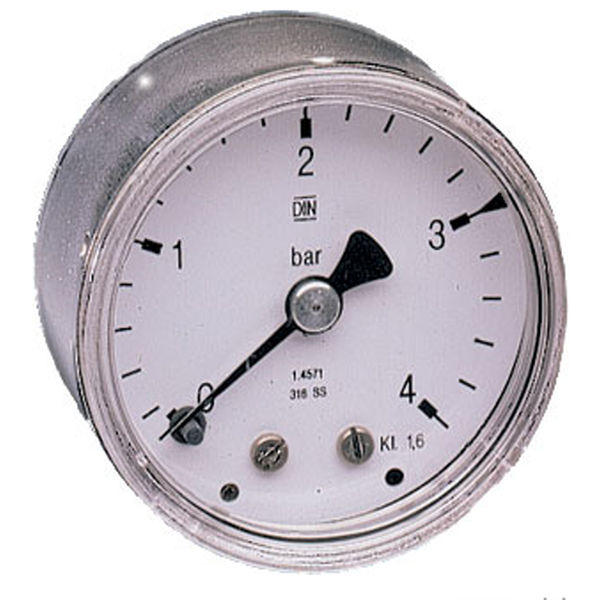

Stainless steel Bourdon tube pressure gauge
1/8" - 1/4", max. 60 bar
AirCom Pneumatic
The capsule type gauge features an integrated restrictor against pressure peaks.
Media: all media compliant with stainless steel, e.g. compressed air, gases or fluids
Scale:
Bourdon_tube_gauge: white background with black bar scale and red psi scale
capsule_type_gauge: white background with black mbar scale
Indicator_accuracy:
2.5% FS on gauge Ø 40 mm and Ø 50 mm,
1.6% FS on gauge Ø 63 mm
Connection_thread: G1/8 or G1/4, at central back
Temperature_range:
0 °C to 100 °C / 32 °F to 212 °F for capsule type gauge
0 °C to 200 °C / 32 °F to 392 °F for Bourdon tube gauge
for appropriately conditioned compressed air down to -40 °C / -40 °F
Housing: stainless steel 1.4301
Lens:
polycarbonate, laminated safety glass at Bourdon type gauge Ø 63 mm
and acrylic glass at capsule type gauge
Connection: stainless steel 1.4571
Seal: FKM at capsule gauge
-
