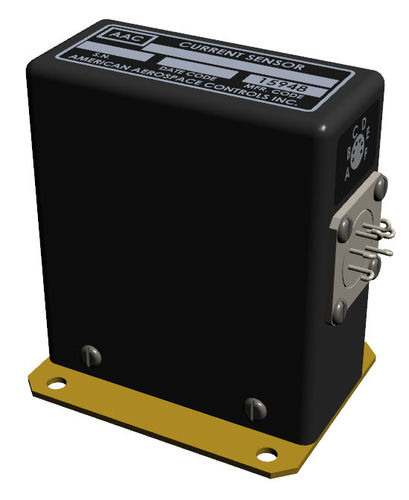

Model 904B DC Current Sensor provides an isolated 0 to +5Vdc output proportional to the DC input current. The sensors have an input current range from +100uAdc to +5mAdc and the sensors have an input to output isolation of 500Vdc.
The 904B Series delivers performance accuracy over a temperature range from -55°C to +85°C, operates with a supply voltage from +24Vdc to +32Vdc and are fast responding. The unit’s powder coated steel housing, with the internal components encapsulated creates a rugged and durable sensor, withstanding environments of moisture, humidity, vibration, shock and altitude.
The 904B DC Current Transducer are available with a header, barrier or connector interface, with the connector option available with mating connector.
