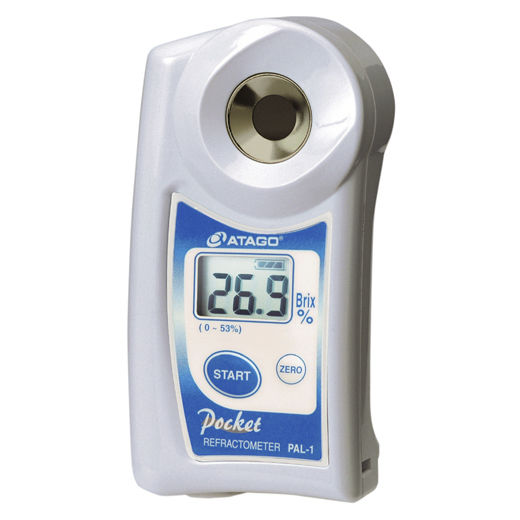

Hand-held digital refractometer
PAL series
ATAGO
Pursuing the "easy-to-use" and "easy-to-understand" ergonomic architecture of this new instrument, the achieved result was not only a "palm fitting" design but also a unit with highly hygienic properties. By reducing the number of unnecessary assembly parts such as the grip, we cut down the risks of creating a germ reproductive enviroment.Though our effort to pursue a germ-free unit, it is unavoidable for an instrument to have grooves between each component and shutting completely the way for germs to spread, so we have come up with new concept of making it a completely washable unit. Moreover, it is equipped with the E.L.I. function, which makes the measurement more reliable in bright light area.
PAL-1 : Brix 0.0 - 53.0%
PAL-2 : Brix 45.0 - 93.0%
PAL-3 : Brix 0.0 - 93.0%
PAL-alpha : Brix 0.0 - 85.0%
PAL-RI : nD 1.3306 - 1.5284
Special PAL-series are available for more than 80 scales, covering almost all applications.
Main features are
1.Extremely water resistant(IP65). Easy cleaning by
runnning water.
2.E.L.I.(External Light Interference)
3.A.T.C.(Automatic Temperature Compensation)
4.Calibration with water. Don't need to use Standard liquid.
5.Light & Compact 100g
6.Equipped with a strap holde
7.Ergonomically designed for one-handed operation
PAL-1 : Brix 0.0 - 53.0%
PAL-2 : Brix 45.0 - 93.0%
PAL-3 : Brix 0.0 - 93.0%
PAL-alpha : Brix 0.0 - 85.0%
PAL-RI : nD 1.3306 - 1.5284
Special PAL-series are available for more than 80 scales, covering almost all applications.
Main features are
1.Extremely water resistant(IP65). Easy cleaning by
runnning water.
2.E.L.I.(External Light Interference)
3.A.T.C.(Automatic Temperature Compensation)
4.Calibration with water. Don't need to use Standard liquid.
5.Light & Compact 100g
6.Equipped with a strap holde
7.Ergonomically designed for one-handed operation
