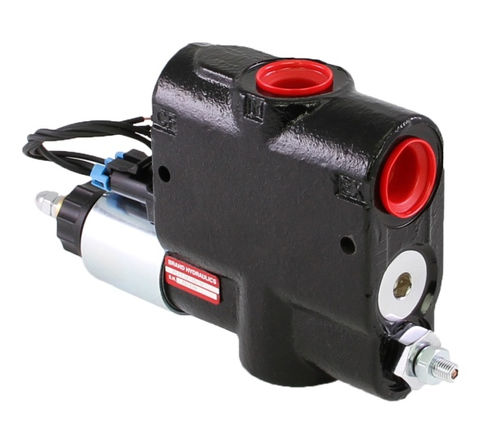

Spool hydraulic directional control valve EFC series

FEATURES: - DIAMOND LAPPED SPOOL BORE provides consistent spool fit with low leakage. - O'RING PORTS to eliminate leakage. - EVERY EFC IS TESTED for shutoff, linearity, max. flow, crack open and pressure compensation. - STANDARD 3-PORT allows for pressure compensated flow out of the CF and EX ports. - MANUAL OVERRIDE when electrical power is lost. - OPTIONAL 2-PORT allows for pressure compensated flow out of CF port. - OPTIONAL FREE REVERSE FLOW allows fluid to move from the CF port to the inlet. - OPTIONAL HIGH LIFT RELIEF. SPECIFICATIONS: - See flow chart for capacity. - 3000 psi (207 bar) rating. - Weighs 8-1/2 lbs. (3.9 kg). - Standard Port size #12SAE (1-1/16 - 12). - 10-Micron Filtration Recommended. - Pulse Frequency (90 to 115 hz). - Coil * 12 VDC standard (24 VDC). * 9.6 ohms (48 ohms). * 15 watts (15 watts). * 1.0 amp max (0.5 amp max.). - Response Time. * 0.035" Standard dash pot (375 ms). * 0.020" Dash pot (900 ms). * 0.093 Dash pot (175 ms to 350 ms depending on flow). - Spool leakage (50 ml/min. @1000 psi on EX port).
