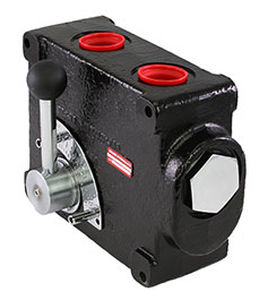

Spool hydraulic directional control valve FC series
Add to favorites
Compare this product
Characteristics
- Type
- spool
Description
PRECISION GROUND PLATED SPOOL that assures long life.
DIAMOND HONED SPOOL BORE provides consistent spool fit with low leakage.
EVERY FC IS TESTED for shutoff, linearity, and pressure compensation.
STANDARD 3-PORT allows for pressure compensated flow out of two ports.
SPECIFICATIONS:
See flow chart for capacity.
Rated for 3000 psi (207 bar).
Weighs 28 --3/4 lbs. (13.0 kg).
30-Micron Filtration Recommended
Torque to turn side lever spool.
40 in*lbs (4.5Nm) with 3000 (207 bar) psi on CF port or the EX port.
